Applicable Medium: Fluid, gas
Medium Temperature: -5 ~ 80º C
Action Mode: Pilot-operated
Working Pressure: 0.5~13bar (under normally closed condition)
Valve Material: Brass, stainless steel or nylon PA66(model: YSZ-40S, YSZ-50S)
Membrane Material (Membrane seal): NBR
Coil Protection Class: Plastic package coil IP65
Features
1. YSZ bistable solenoid valve is a special valve with pulse bistable and self-holding normally closed characters.
2. It adopts special coil, high-quality magnetic material and solid mould pressing membrane (main valve seal) so that it has the characteristics of stable property and high reliability.
3. The on/off status of solenoid valve depends on the power polarity.
4. This valve could be widely applied in the intelligent automation control system like garden irrigation and agriculture irrigation.
|
Model |
Connector G |
Diameter |
CV Value |
Length (mm) |
Height (mm) |
Working Pressure |
Remark |
|
YSZ-10 |
3/8 |
10 |
3.5 |
66 |
112 |
0.5~13bar |
DN15~50mm, fit with copper or steel flange |
|
YSZ-15 |
1/2 |
15 |
4.5 |
66 |
112 |
|
YSZ-20 |
3/4 |
20 |
7.6 |
74 |
118 |
|
YSZ-25 |
1 |
25 |
12 |
92 |
125 |
|
YSZ-32 |
11/4 |
32 |
22 |
131 |
137 |
|
YSZ-40 |
11/2 |
40 |
30 |
139 |
150 |
|
YSZ-50 |
2 |
50 |
48 |
151 |
160 |
|
YSZ-40S |
11/2 |
40 |
30 |
170 |
173 |
0.5~7 bar |
Valve Nylon PA66 |
|
YSZ-50S |
2 |
50 |
48 |
170 |
173 |
Our factory was founded in 1965. Through 50 years of development, we have become one of the most professional manufacturers of solenoid valves.
With great confidence in our products and services, our factory has obtained orders from all over the world. Our customers are from Australia, USA, Spain, Mexico, Saudi Arabia, Ireland, German, France and Canada.

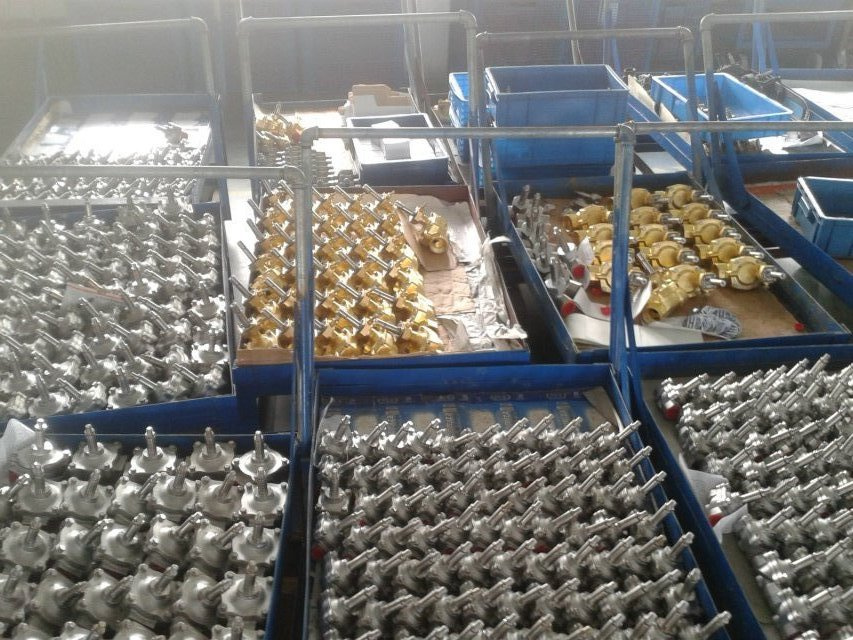

Our factory manufactures the products as per the ISO9001 quality management system and CE, RoHS, TUV, FDA standards. Our factory has been equipped with advanced processing machines, including CNC digital controlled apparatus. We have a strong R&D team to research and customize products to cater various requirements of customers.
We have been persisting in providing our customers with superior quality products and perfect services by constantly innovating and self-improvement. Customer satisfaction is our unswerving pursuit.
