Z41h-16c GOST Gate Valve Light Grade
| Price: |
Negotiable/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
50/Piece |
| Pay Type: |
L/C,T/T,D/P |
Z41H-16C GOST Gate Valve Light Grade Quick Details
？Standard or Nonstandard: Standard
？Structure: Gate,Stem gate valve
？Pressure: Low Pressure
？Power: Manual
？Material: Casting,WCB
？Temperature of Media: Medium Temperature
？Media: Base
？Port Size: DN50-DN200
？Place of Origin: Hebei, China (Mainland)
？Model Number: Z41H-16C
？Brand Name: PYL
？Certificate: ISO14001,ISO9001
？PN: 1.6
？Strength(water)(Mpa): 2.4
？Enclose(water)(Mpa): 1.8
？Suitable temperature: ≤425
？uitable medium: Water,Vapour,Oil
？Market: Russia,Ukraine,America,India,Germany and so on
？Terms of trade: manufacturer
Z41H-16C GOST Gate Valve Light Grade Packaging & Delivery
Packaging Details:
1.woven bag in twenty-foot container
2.put into wooden case 3.pallet
Delivery Detail:7-20days or according your requirement
Z41H-16C GOST Gate Valve Light Grade Material
Parts | Material |
| wheel | Ductile iron |
| Yoke nut | Brass |
| Stem | arton steel,stainless steel |
| Packing | Graphite |
| Disc | WCB+ stainless steel |
| Valve body | WCB 20#steel |
| Sealing | Stainless steel |

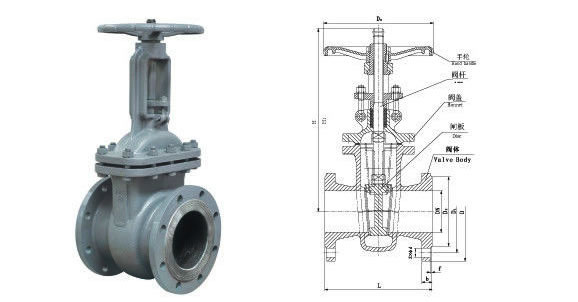

Z41H-16C GOST Gate Valve Light Grade outline and connecting measurement
Type | Nominal pressure(mm) | Measurement(mm) | Reference Weight(kg) |
L | D1 | D2 | b-f | Z×φd | H | H 1 | D0 | |
| Z41H-16C | 50 | 180 | 160 | 125 | 102 | 16-3 | 4×φ8 | 288 | 341 | 180 | 14.61 |
80 | 210 | 195 | 160 | 133 | 18-3 | 4×φ8 | 343 | 426 | 215 | 24 |
100 | 230 | 215 | 180 | 158 | 20-3 | 8×φ8 | 392 | 486 | 245 | 33.9 |
150 | 280 | 280 | 240 | 12 | 24-3 | 8 ×φ22 | 559.5 | 704 | 275 | 67.03 |
200 | 330 | 335 | 295 | 268 | 26-3 | 12×φ22 | 696 | 896 | 320 | 107 |
Z41H-16C GOST Gate Valve Light Grade Gate Valve Specification
| Type | Nominal pressure(Mpa) | Testing pressure(Mpa) | Suitable temperature | Suitable medium |
Z41H-16C | 1.6 | Strength (water)2.4 | Enclose(water)1.8 | ≤425 | Vapour ,Water,Oil |
| Prod Model: |
Z41H-16C |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Connection Form: |
Flange |
| Material: |
Stainless Steel |
| Seal Surface: |
Wedge Gate Valve |
| Thread Position Of Valve Rod: |
Outside Gate Valve |
| Application: |
Water Industrial Usage |
