Can be used under zero pressure, reliable performance, with high quality and resonable price!
Specifications
2way miniature water strainless steel solenoid valve 12v
1) Body material: Brass / stainless steel
2) Operating type: Normally closed /normally open
Technical Specifications
-- Media: Gas, Water, Air, Oil (below 20cst), Weak acid & alkali, Vacuum
-- Pressure: Normally Closed 10bar; Normally Open 6bar
--Function type: Normally Closed (N/C), Normally Open (N/O)
--Temperature: -5 ~80° C
--Mode of action: Semi-direct lift type
--Body material: Brass/Stainlesssteel
-- Sealing material: NBR/FKM/EPDM
--Protection class: IP65
OPTIONS
EPDM (E): Suitable to water, hot water, gas, Freon, the MAX. 110° C; In case you choose EPDM, please state "E" in your order.
Viton (V): Suitable to hot water, acid, alkali, chemical salt, oil and hydrocarbon; The MAX. 130° C. In case you choose Viton, please state "V" in your order.

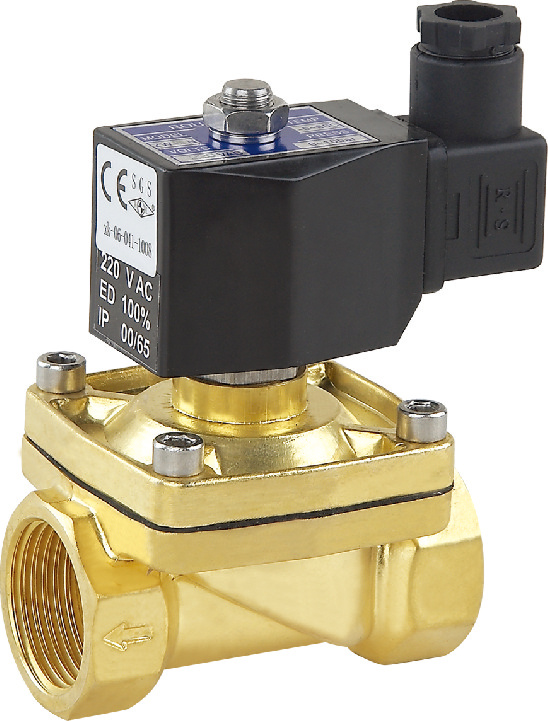

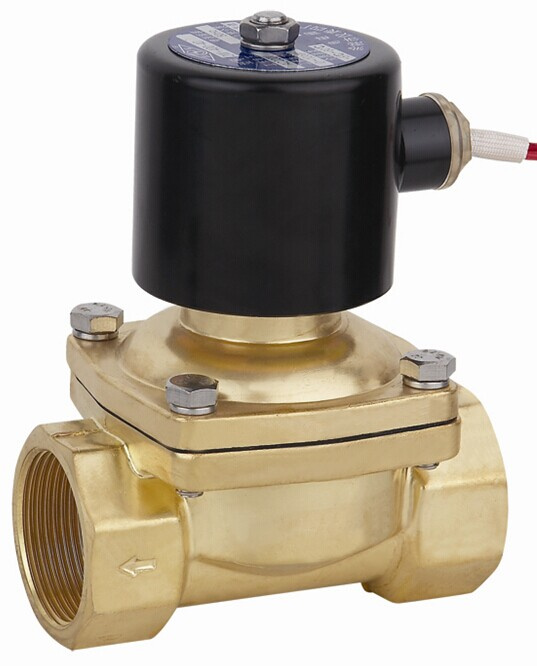

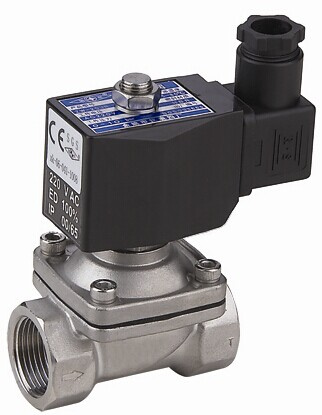

Pictures
ZW-20JN
ZW-40
|
Model |
ZW-10JN |
ZW-15JN |
ZW-20JN |
ZW-25JN |
ZW-32J |
ZW-40J |
ZW-50J |
|
G Connection |
3/8" |
1/2" |
3/4" |
1" |
1¼" |
1½" |
2" |
|
Orifice Size |
mm |
15 |
15 |
20 |
25 |
32 |
40 |
50 |
|
Cv Value |
4.8 |
4.8 |
7.6 |
12 |
24 |
29 |
48 |
|
L |
mm |
60 |
60 |
62 |
82 |
102 |
110 |
134 |
|
H |
mm |
111 |
111 |
117 |
124 |
156 |
161 |
176 |
|
Medium temperature |
-5 ~80°C (-10~130°C) |
|
Pressure |
bar |
Normally closed :0~10; Normally Open:0~6 |
|
Power |
AC:220V~AC:230V/50-60HZ 22VA; AC110 ~AC:120V/50-60HZ 22VA; DC24 18W; DC12 17W ; Range:±10%, |
