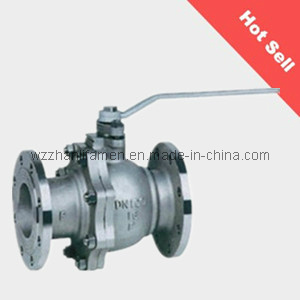

API 2-PC Floating Ball Valve Q41h
Price: |
Negotiable/Piece |
Trade Terms: |
FOB,CIF |
Min Order: |
10/Piece |
Pay Type: |
L/C,T/T |
Prod Model: |
Q41H |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Nominal Diameter: |
1-1/2''-10'' |
Connection Form: |
Flange |
Channel: |
Straight Through Type |
Structure: |
Floating Ball Valve |
Type: |
Floating Ball Valve |
Application: |
Household Usage |
Material: |
Carbon Steel, Stainless Steel, Steel |
Nominal Pressure: |
150lb, 300lb, 600lb |
Product Description
Belows are the details of the API Cast Steel Swing Check Valve made by our company:
1. Technical Specifications:
(1)Design Standard: API 6D/BS5351
(2)Face to Face Dimensions: ANSI B16.10-2009
(3)End Flange Dimension: ANSI B 16.5-2009
(4)Test Standard: API 598-2009
2. Performance Specifications:

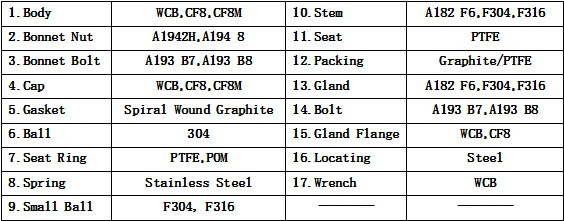

3. Main Parts and Materials:

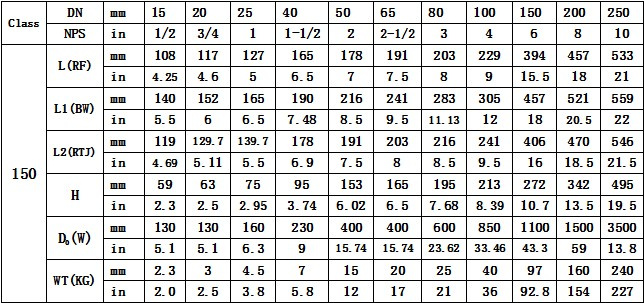

4. Main Sizes and Dimensions:
If this product interests you, please feel free to contact with us!
