| Prod Model: |
H61H |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Size: |
3/8"-21/2" |
| Pressure: |
900lb--2500lb |
| Connection Form: |
Thread |
| Structure: |
Swing |
| Function: |
Nrvg Silence |
| Application: |
Household Usage |
| Material: |
Forged Steel/Cast Steel/Stainless Steel |
Product Description
Product Description

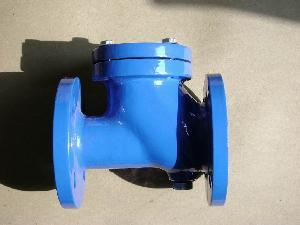

Cast Steel Swing Check Valves, lift check valves, piston check valves
Standard compliance
1) Design and manufacture: API6D, ANSI B16.34, BS1868
2) Test and inspection: API598
3) Face to face dimensions: ANSI B16.10
4) Flanged end: ANSI B16.5, B16.47 SERIES A & SERIES B
5) Butt-welding end: ANSI B16.25
6) Other standards (DIN, BS, JIS) is also available upon request.
Specifications:
1) Size: 2" to 36"
2) Class: 150LB to 2500LB
3) Type: Bolted Cover, Swing Disc, Threaded or Welded seat ring
4) Material: WCB, WCC, WC6, WC9, C5, C12, CF8, CF8M, CF3, CF3M, CN7M, LCB, LCC, DUPLEX SS, MONEL, ALLOY 20, CAST IRON etc
5) Operation: Lever with counterweight(option)
|
(NPS)Specification (CL2500 ) |
F.P |
3/8 |
1/2 |
3/4 |
1 |
1 1/4 |
1 1/2 |
2 |
|
(mm)Face to face |
L |
186 |
186 |
186 |
186 |
232 |
232 |
310 |
|
(mm)Height |
H |
233 |
233 |
233 |
233 |
256 |
256 |
330 |
|
(mm)Flow port dimension |
d |
9 |
11 |
14 |
19 |
25 |
28 |
35 |
|
(Kg)Weight |
10.6 |
10.8 |
11.2 |
11.5 |
25 |
22 |
39 |
Zhejiang xiongtai valve manufacturing Co., Ltd., eattablished in 1998 and situated in Oubei Yongjia, a China hometown of pump and valve is a plant integrating R&D, production, sales and survi of valves and has abundent strengths and plentiful production experience with a staff of about 200 involving several steel valve and steel valve etc., and has obtained certifications of ISO9001, API6D, TS and so on.
