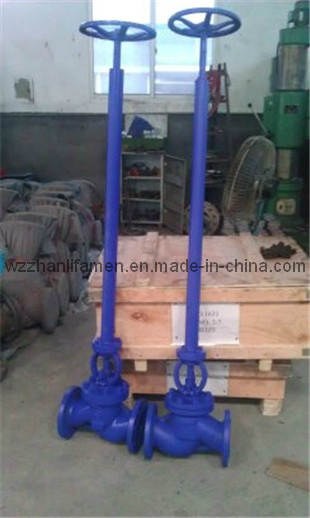

DIN Bellows Seal Globe Valve Longer Stem
| Price: |
US $ 999.99/Piece |
| Trade Terms: |
FOB,CIF |
| Min Order: |
10/Piece |
| Pay Type: |
L/C,T/T |
| Prod Model: |
WJ41H |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Nominal Pressure: |
1.6mpa, 2.5mpa.4.0mpa |
| Nominal Diameter: |
1/2''-16'' |
| Connection Type: |
Flange |
| Materials: |
Wcb, GS-C25 |
| Structure: |
Through Way Globe Valve |
| Sealing Form: |
Gland Packings Globe Valve |
| Stem Thread Position: |
Inside Screw Stem Globe Valve |
| Application: |
Bellows Globe Valve |
| Standard: |
DIN |
Product Description
Bellows Seal Globe Valve is a new kind of globe valves with dual-seal. So its sealing is very good. The sealing surface is bead welding with hard alloy and the stem surface is in"nitrogen treatment". Hence it is the valve of attrition-resistant, good anti-corrosion performance and long service life.
Application: Petrochemical, Power Plant, Steel Mill, Plastic and Paper industries.
Belows are the details of the DIN bellows seal globe valve made by our company:
1. Technical Specifications:
(1)Design Standard: DIN EN 13709-2003
(2)Face to Face Dimensions: DIN EN588-1: 1995
(3)End Flange Dimension: DIN EN 1092-1: 2002
(4)Test Standard: DIN EN 12266: 2003

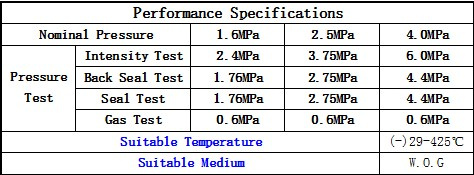

2. Performance Specifications:

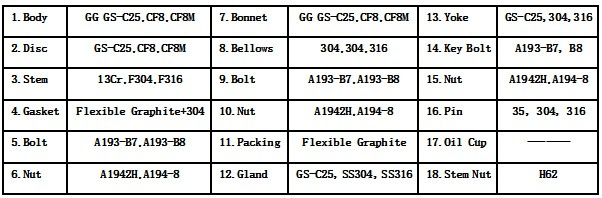

3. Main Parts and Materials:

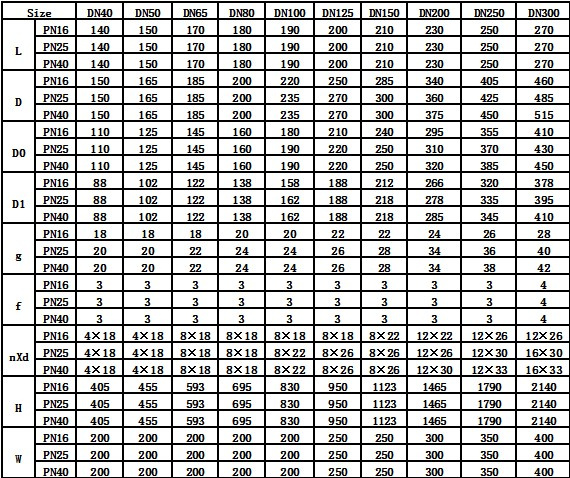

4. Main Sizes and Dimensions:
If this product interests you, please feel free to contact with us!
