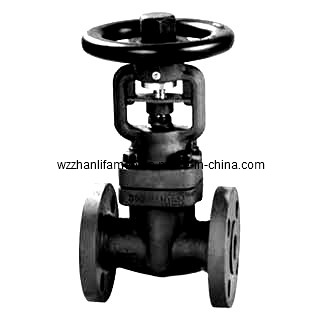

Forged Steel Bellows Seal Globe Valve (WJ41H)
| Price: |
US $ 999.99/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
10/Piece |
| Pay Type: |
L/C,T/T |
| Prod Model: |
WJ41H |
| Nominal Pressure: |
150-800lb |
| Nominal Diameter: |
15-50mm |
| Structure: |
Through Way Globe Valve |
| Sealing Form: |
Bellows Globe Valve |
| Stem Thread Position: |
Outside Screw Stem Globe Valve |
| Application: |
Bellows Globe Valve |
| Standard: |
ANSI |
Product Description
Followings are details of the Forged Steel Bellows Seal Globe Valve made by our company:
1. Main Structural features:
(1)Product Structure Reasonable, sealed reliable, high performance, attractive performance
(2)Sealing surface covered with Co-based hard alloy, wear resistant, anticorrosion, high quality of crock resistance, long life.
(3)After nitriding process, the stem and its surface's anticorrosion and crock resistance become more better.
(4)dual-seal, reliable performance.
(5)The parts' materials, flange and the sizes of weld are all alternative, applied to all kinds of projects.
2. Technical Specifications: Please consult the tables below.
3. Performance Specifications: Please consult the tables below.
4. Main Parts and Materials: Please consult the tables below.
5. Main Sizes and Dimensions: Please consult the tables below.
If this product interests you, please feel free to contact with us!
Quality First and Reputation Uppermost!
| Construction | BB-BG-OS&Y |
| Operation | Hand-operated |
| Pneumatic |
| Design Standard | BS 5160 |
| Face to Face Dimension | ANSI 16.10 |
| Flanged Ends | ANSI 16.5 |
| Test&Inspection | API 1598 |
| Nominal Pressure | Shell Test(Mpa) | Sealing Test(Mpa) | Suitable Temp | Suitable Medium |
| 150 | 3.0 | 2.2 | -20ºC-350ºC | W.O.G |
| 300 | 7.5 | 5.5 |
| Part Name | Material | Part Name | Material |
| 1.Body | A105,CF8,CF3 | 9.Hand Wheel | Carbon Steel |
| 2.Disc | 2Cr13,SS304,SS316 | 10.Cap | 25# |
| 3.Bellows Combination | SS304,SS316L | 11.Oil Cup | Brass |
| 4.Bonnet | A105,CF8,CF3 | 12.Hexagon Nut | ASTM A193 2H,A193-8,A193-8M |
| 5.Packing | Flexible Graphite,PTFE | 13.Bolt | ASTM A193 B7,A193-B8,A193-B8M |
| 6.Gland | 25#,SS304,SS316 | 14.Combination Gasket | Flexible Graphite+Stainless Steel,PTFE |
| 7.Location | 25#,SS304,SS316 | 15.Stem | 2Cr13,SS304,SS316 |
| 8.Stem Nut | Cu Alloy ZQA19-4 | __ | __ |
| Model | BGL41H |
| DN | inch | ½'' | ¾'' | 1'' | 1¼'' | 1½'' | 2'' | 2½'' |
| L | 150LB | 108 | 117 | 127 | 140 | 165 | 203 | 216 |
| 300LB | 152 | 178 | 203 | 216 | 229 | 267 | 292 |
| H | 150LB | 170 | 175 | 185 | 195 | 205 | 220 | 240 |
| 300LB | 170 | 175 | 185 | 195 | 205 | 220 | 240 |
| W | 150LB | 120 | 120 | 140 | 140 | 160 | 180 | 180 |
| 300LB | 140 | 140 | 160 | 160 | 180 | 200 | 200 |
| Stroke/h | 150LB | 7 | 7 | 12 | 13 | 14 | 15 | 19 |
| 300LB | 7 | 7 | 12 | 13 | 14 | 15 | 19 |
| KV | 150LB | 4.2 | 7.4 | 12 | 19 | 30 | 47 | 77 |
| 300LB | 4.2 | 7.4 | 12 | 19 | 30 | 47 | 77 |
Weight
Kg | 150LB | 3.7 | 4.4 | 5.1 | 7.5 | 8.8 | 12.2 | 16.1 |
| 300LB | 3.7 | 4.4 | 5.1 | 7.5 | 8.8 | 12.2 | 16.1 |
