| Prod Model: |
H11H/H61H |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Nominal Pressure: |
800lb, 1500lb, 2500lb |
| Nominal Diameter: |
1-1/2''-2'' |
| Function: |
Nrvg Silence |
| Application: |
Household Usage |
| Connection Form: |
Socket Weld, Threaded End/NPT |
| Structure: |
Lift, Elevated |
| Material: |
Forged Steel |
Product Description

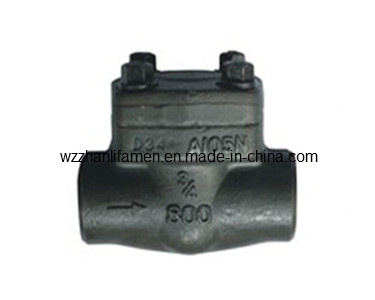

Followings are the details of the Forged Steel Check Valve made by our company:
1. Technical Specifications:
(1)Design Standard: API 602 / ANSI B 16.34
(2)Face to Face Dimensions: ANSI B16.10
(3)Connection Type: Socket Weld ANSI B 16.11, Threaded End ANSI B 1.20.1
(4)Structures: Lift Type and Swing Type
(5)Test Standard: API 598
2. Performance Specifications:
(1)Shell Test: 19.5Mpa(800LB), 37.5Mpa(1500LB), 63.0Mpa(2500LB)
(2)Seal Test: 14.3Mpa(800LB), 27.5Mpa(1500LB), 46.2Mpa(2500LB)
(3)Suitable Temperature: Carbon Steel -29-425 Celsius degree, Stainless Steel: -59-540 Celsius degree
(4)Suitable Medium: W. O. G
3. Main Parts and Materials:
(1)Body: A105, LF2, F5, F11, F22, F304, F316
(2)Seat: A276-420+STL, 304+STL, 316+STL
(3)Disc: A276-410, 304, 316
(4)Nut: A194-8
(5)Rocker: A315-CF8M
(6)Pin: A276-304
(7)Gasket: Graphite +304, Graphite +316
(8)Bolt: A193 B7, B8
(9)Bonnet Bolt: A193 B7, B8
(10)Bonnet: A105, LF2, F5, F11, F22, F304, F316
4. Main Sizes and Dimensions: Please consult the table below.
If this product interests you, please feel free to contact with us!
Quality First and Reputation Uppermost!
| Size | DN15 | DN20 | DN25 | DN32 | DN40 | DN50 |
| L | 79 | 92 | 111 | 120 | 152 | 172 |
| H | 62 | 63 | 78 | 82 | 102 | 120 |
| Weight(kg) | 1.5 | 1.75 | 2.5 | 4 | 5.9 | 9 |
Wenzhou Zhanli Valve Co., Ltd. Located in the famous valves & pumps hometown "Oubei town, Wenzhou". We are the advanced valve manufacturer with valve designing & developing, manufacturing, sales, and after-sale services.
We mainly produce steam system valves & equipments. For years, we are devoting ourselves to the domestic sales and export businesses, strictly controlling the quality. We insist on "Quality First and Reputation Uppermost" and obtained the trust & approval from most of our domestic & foreign customers.
Our main products and services are: DIN Valve Series, such as: DIN Gate Valves, DIN Globe Valves, DIN Check Valves, DIN Y Type Strainers, DIN Bellows Seal Gate Valves, DIN Bellows Seal Globe Valves. API Valve Series, including: API Gate Valves, API Globe Valves, API Swing Check Valves. Forged Steel Gate, Globe and Check Valves. Steam Trap Series, including: Free Float Steam Traps, Ball Float Steam Traps, Thermodynamic Steam Traps, Inverted Bucket Steam Traps and Thermostatic Steam Traps …
We purchased advanced machines & equipments, employed a qualified & skillful technical workers.
Welcome to inquire us. We will do our best to give you the best services!
