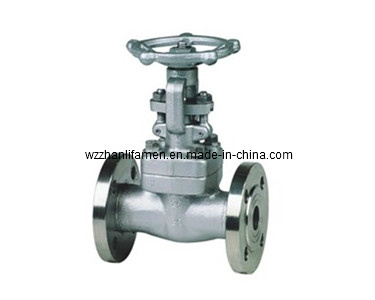

Forged Steel Gate Valve (Flange)
| Price: |
US $ 999.99/Piece |
| Trade Terms: |
FOB |
| Min Order: |
10/Piece |
| Pay Type: |
L/C |
| Prod Model: |
Z41H |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Nominal Pressure: |
800lb, 1500lb, 2500lb |
| Nominal Diameter: |
1-1/2''-2'' |
| Connection Form: |
Flange |
| Seal Surface: |
Wedge Gate Valve |
| Thread Position Of Valve Rod: |
Outside Gate Valve |
| Application: |
Household Usage |
| Material: |
Forged Steel |
Product Description
Followings are the details of the Forged Steel Gate Valve made by our company
1. Technical Specifications
(1)Design Standard: API 602/ANSI B 16.34
(2)Face to Face Dimensions: ANSI B 16.10
(3)Connection Type: Flange End ANSI B 16.5
(4)Structures: Bolted Bonnet, Welded Bonnet and Seal-sealed Type
(5)Test Standard: API 598
2. Performance Specifications

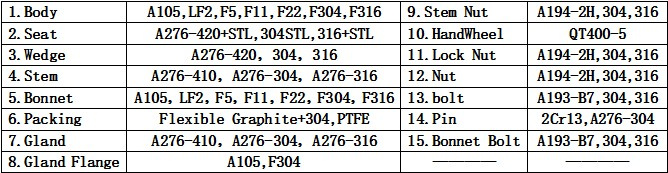

3. Main Parts and Materials

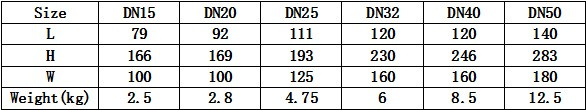

4. Main Sizes and Dimensions
If this product interests you, please feel free to contact with us!
