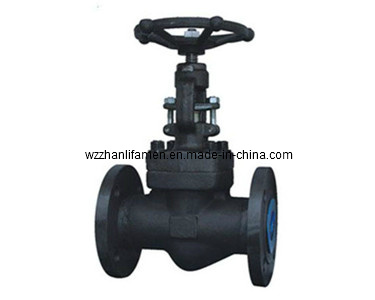

Forged Steel Globe Valve (Flanged)
| Price: |
US $ 999.99/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
10/Piece |
| Pay Type: |
L/C,T/T |
| Prod Model: |
J41H |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Nominal Pressure: |
800lb, 1500lb, 2500lb |
| Nominal Diameter: |
1-1/2''-2'' |
| Connection Type: |
Flanged End |
| Structure: |
Through Way Globe Valve |
| Stem Thread Position: |
Outside Screw Stem Globe Valve |
| Standard: |
ANSI |
| Sealing Form: |
Gland Packings Globe Valve |
| Application: |
Bellows Globe Valve |
Product Description
Belows are the details of the Forged Steel Gate Valve made by our company:1. Technical Specifications:
(1)Design Standard: API 602/ANSI B 16.34
(2)Face to Face Dimensions: ANSI B16.10
(3)Connection Type: Flanged End ANSI B16.5
(4)Structures: Bolted Bonnet, Welded Bonnet and Seal-sealed Type
(5)Test Standard: API 598
2. Performance Specifications:

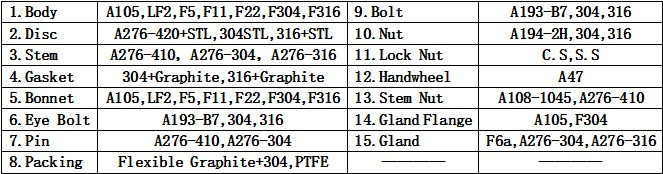

3. Main Parts and Materials:

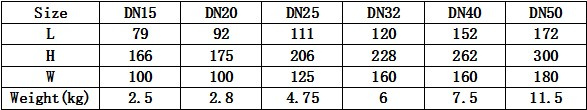

4. Main Sizes and Dimensions:
If this product interests you, please feel free to contact with us!
Quality First and Reputation Uppermost!
Wenzhou Zhanli Valve Co., Ltd. Located in the famous valves & pumps hometown "Oubei town, Wenzhou". We are the advanced valve manufacturer with valve designing & developing, manufacturing, sales, and after-sale services.
We mainly produce steam system valves & equipments. For years, we are devoting ourselves to the domestic sales and export businesses, strictly controlling the quality. We insist on "Quality First and Reputation Uppermost" and obtained the trust & approval from most of our domestic & foreign customers.
Our main products and services are: DIN Valve Series, such as: DIN Gate Valves, DIN Globe Valves, DIN Check Valves, DIN Y Type Strainers, DIN Bellows Seal Gate Valves, DIN Bellows Seal Globe Valves. API Valve Series, including: API Gate Valves, API Globe Valves, API Swing Check Valves. Forged Steel Gate, Globe and Check Valves. Steam Trap Series, including: Free Float Steam Traps, Ball Float Steam Traps, Thermodynamic Steam Traps, Inverted Bucket Steam Traps and Thermostatic Steam Traps …
We purchased advanced machines & equipments, employed a qualified & skillful technical workers.
Welcome to inquire us. We will do our best to give you the best services!
Wenzhou Zhanli Valve Co., Ltd. Located in the famous valves & pumps hometown "Oubei town, Wenzhou". We are the advanced valve manufacturer with valve designing & developing, manufacturing, sales, and after-sale services.
We mainly produce steam system valves & equipments. For years, we are devoting ourselves to the domestic sales and export businesses, strictly controlling the quality. We insist on "Quality First and Reputation Uppermost" and obtained the trust & approval from most of our domestic & foreign customers.
Our main products and services are: DIN Valve Series, such as: DIN Gate Valves, DIN Globe Valves, DIN Check Valves, DIN Y Type Strainers, DIN Bellows Seal Gate Valves, DIN Bellows Seal Globe Valves. API Valve Series, including: API Gate Valves, API Globe Valves, API Swing Check Valves. Forged Steel Gate, Globe and Check Valves. Steam Trap Series, including: Free Float Steam Traps, Ball Float Steam Traps, Thermodynamic Steam Traps, Inverted Bucket Steam Traps and Thermostatic Steam Traps …
We purchased advanced machines & equipments, employed a qualified & skillful technical workers.
Welcome to inquire us. We will do our best to give you the best services!
