| Prod Model: |
H41 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Size: |
3/8"-21/2" |
| Pressure: |
900lb--2500lb |
| Connection Form: |
Flange |
| Structure: |
Swing |
| Function: |
Nrvg Silence |
| Application: |
Household Usage |
| Material: |
Forged Steel/Cast Steel/Stainless Steel |

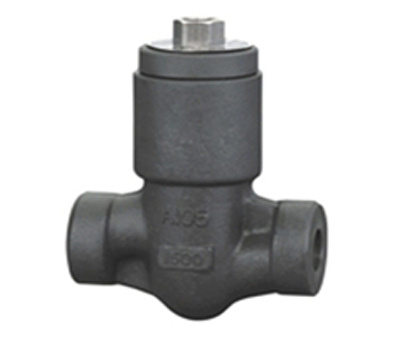

Product Description
Specifications:
1.？？？？？Pressure seal bonnet ？
2.？？？？？Piston lift type, ？？
Swing type, Ball type are available ？
3.？？？？？Guided Disc in valve body provides accurate sealing alignment？
4.？？？？？Connection can be Socket weld ends: ASME B 16.11
？？Threaded ends: ANSI/ASME B 1.20.1
？？Butt-welded ends: ANSI B16.25
？？Flange ends: ASME B 16.5
5.？？？？？Forged Steel Check Valves conform to MSS-SP-118 and ASME B 16.34. Each valve is tested in accordance with API 598, and marked per MSS SP 25.
6.？？？？？Main materials: A105, LF2, F5, F22, F304, F316, F347, F321, F51, Monel, 20# Alloy
|
(NPS)Specification (CL2500 ) |
F.P |
3/8 |
1/2 |
3/4 |
1 |
1 1/4 |
1 1/2 |
2 |
|
(mm)Face to face |
L |
186 |
186 |
186 |
186 |
232 |
232 |
310 |
|
(mm)Height |
H |
233 |
233 |
233 |
233 |
256 |
256 |
330 |
|
(mm)Flow port dimension |
d |
9 |
11 |
14 |
19 |
25 |
28 |
35 |
|
(Kg)Weight |
10.6 |
10.8 |
11.2 |
11.5 |
25 |
22 |
39 |
Zhejiang xiongtai valve manufacturing Co., Ltd., eattablished in 1998 and situated in Oubei Yongjia, a China hometown of pump and valve is a plant integrating R&D, production, sales and survi of valves and has abundent strengths and plentiful production experience with a staff of about 200 involving several steel valve and steel valve etc., and has obtained certifications of ISO9001, API6D, TS and so on.
