Prod Model: |
XTZ61 |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Pressure: |
800lb |
Connection: |
Sw |
Size: |
2"--38'' |
Material: |
Steel |
Seal Surface: |
Wedge Gate Valve |
Thread Position Of Valve Rod: |
Inside Gate Valve |
Application: |
Industrial Usage |
Connection Form: |
Sw |
Product Description
Packaging & Delivery
Packaging Detail:wooden case packing
Delivery Detail:20 days after receive the deposit
?
Specifications

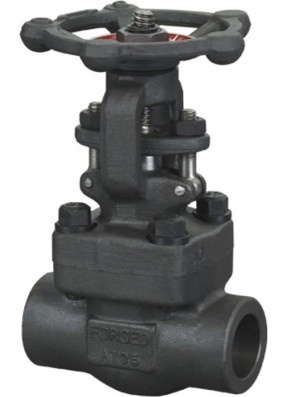

forged gate valve Standard Compliance
Design and manufacture: API602
Name: forged gate valve Standard Compliance:
?????? 1.???? BB - Bolted bonnet?????
?????? ?2.???? OS&Y - outside screw and yoke? ? ?
??????? 3.???? Bolted Gland ?? ??
??????? 4.???? Metal-graphite Spiral wound gasket between the Bonnet & Body ?
??????? 5.???? Graphite stem packing
??????? 6.???? Socket welding: ANSI B16.11
Screw ends: ANSI B1.20.1
Butt welding: ANSI B16.25
??????? 7.???? Forged Steel Gate Valves conform to API 602, BS5352 and ASME B 16.34. Each valve is inspected and tested in accordance with API 598, and marked per MSS SP25.
??????? 8.???? Main materials: A105, LF2, F5, F22, F304, F316, F347, F321, F51, Monel, 20# Alloy
9.???? Pressure:150LB-2500LB
10.?? Port size:1/4"-3"
?
Product Description
Applicable/Product Standards:
Steel Gate Valves Design: API 600 /?BS1414
Steel Gate Valves: ISO 10434 /?ISO 14313
Steel Gate Valves: ASME B16.34
Face to Face according to: ASME B16.10
Flanges Ends according to: ASME B16.5/ASME B16.47
Butt Welding Ends according to: ASME B16.25
Inspection and Testing according to: API 598 /?API 6D
Design/Production Description:
Meet design requirements of ANSI B16.5, B16.34, B16.10, BS1414
B16.25 (for NPS≤ 24), MSS SP-44(for NPS>24), API-600
Inspection and Test: Accord with API 598
Full range of body/bonnet &?trim materials
Choice of solid, flexible or split wedge design
Back seating design
Upset forged T-head stem design
OS&Y construction
Renewable seat rings--seal welded
Full port design
Full length wedge guides
Optional impact hand wheel
Optional lengthen stem
WINDMILL Gate Valve Feature:
Full Port Design
OS&Y, Outside Screw and Yoke
BB, Bolted Bonnet
PSB, Pressure Seal Bonnet
Flexible Wedge, Fully Guided
Choice of Solid or Split Wedge
Size: 2"-48"
Pressure: 150LB, 300LB, 600LB, 900LB, 1500LB, 2500LB
Connection: Flanges, RTJ Flange, Butt Weld, Groove
Material:
Carbon Steel, Forged Steel, Stainless Steel: WCB, LCB, LCC, LC1, CF8, CF8M, CF3, CF3M, WC6, WC9, C5, C12, C12A
Specifical Material:
Duplex Steel, Super Duplex Steel, Inconel: GR4A, GR6A, CY-40, Inconel 600
Operate: Handwheel, Wormgear, Gearbox, Penumatic Actuator, Electric Actuator, Hydraulic Actuator.
SIZE |
2"-38" |
MATERIAL |
A105, LF2, F5, F22, F304, F316, F347, F321, F51, Monel, 20# Alloy |
PRESSURE |
150lb-2500lb |
Zhejiang xiongtai valve manufacturing Co., Ltd., eattablished in 1998 and situated in Oubei Yongjia, a China hometown of pump and valve is a plant integrating R&D, production, sales and survi of valves and has abundent strengths and plentiful production experience with a staff of about 200 involving several steel valve and steel valve etc., and has obtained certifications of ISO9001, API6D, TS and so on.
