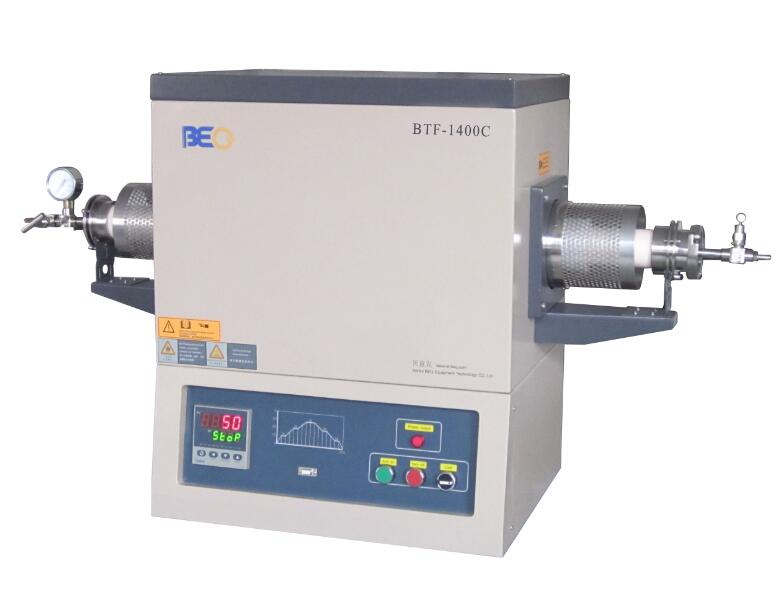

BTF-1400C
Tube installation

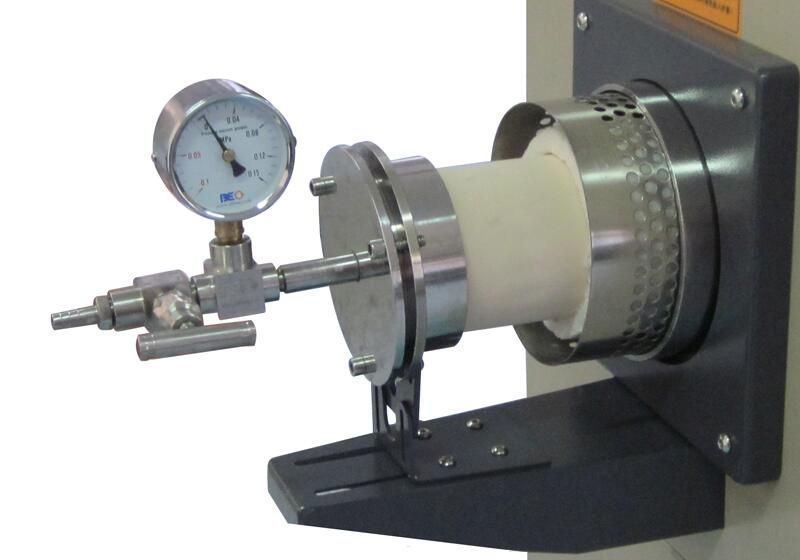

The flangeMain features:1.This furnace is configurated to meet CE certificate standard.
2.The furnace can adopt a 60,80 or 100mm O.D quartz tube and a pair of stainless steel vacuum sealing flanges with needle valves &gauge allow heating samples under vacuum or gas flow conditions.
3.The temperatureof this tube furnace iscontrolled by a high precision digital controller which provides30 programmable segments with +/- 1°C accuracy. The max. working temperature is1400°C.
Specification: Furnace structure | ·Double layer steel structure.
· High purity Al2O3 fibrous insulation with Max. energy saving High purity alumina coating on refractory ceramics for longer service life |
Power | 4KW |
Voltage | AC 220v 50/60 Hz |
Working temperature | Max.temperature 1400°C (<1 hour) Continuous temperature 1300ºC suggest.heating rate10 °C/min |
Heating zone length | 12" (300mm), single zone |
Constant temper zon length |
150mm
|
Tube size |
BTF-1400C-60 60 O.D x 52 I.D x 1000 mm L
BTF-1400C-80 80 O.D x 72 I.D x 1000 mm L ·Two fibrous ceramic tube blocks are included for blocking heat radiation from tube chamber. (Ceramic blocks must be fully inserted into the furnace chamber before heating)
|
Temperature controller | PID automatic control via solid state relay with 30 steps programmable
·Built in Over Temperature and Thermocouple Failure Protection |
Vacuum lever | 10-2torr (by mechanical pump)
10-5torr(mechanical and melecular pump) |
Pressure measurement |
·Standard mechanical vacuum gauge measures within a pressure range of -0.1 to 0.15Mpa is included.
·Optional: A gas-type Independent (above 10mbar) digital vacuum gauge with wide range between 3.8x10-5 to 1125 Torr. Aside from greater measurement precision, this gauge reduces risks of chamber explosions caused by incorrect reading of gas pressures.
|
Temperature accuracy | +/- 1°C
|
Heating element | Fe-Cr-Al Alloy doped by Mo |
Dimension | 610mm(L) × 440mm(W) ×720mm(H)
|
Net weight | 50KG |
Shipping package size |
1100mm(L) × 560mm(W) ×960mm(H) (Woody package)
|
Shipping weight | 126KG |
Warranty | One year limited warranty with lifetime support (Consumable parts such as processing tubes and o-rings are not covered by the warranty) |
