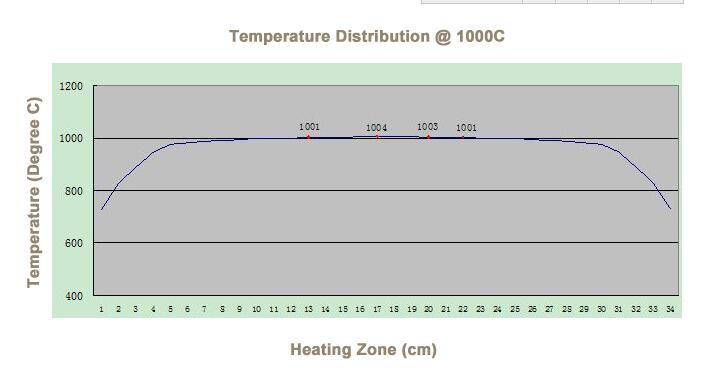

Tempature curve Flanges of two ends

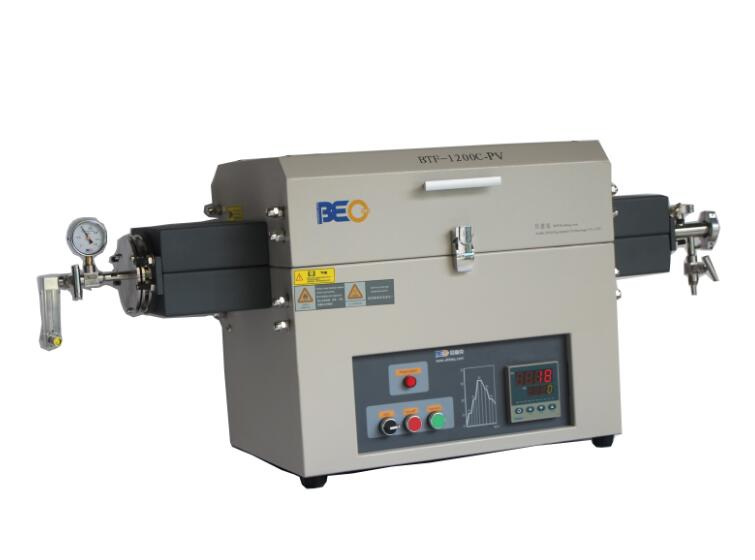

Main features:(1)The equipment is researched by our company and the range of positive pressure is 0-15kg.

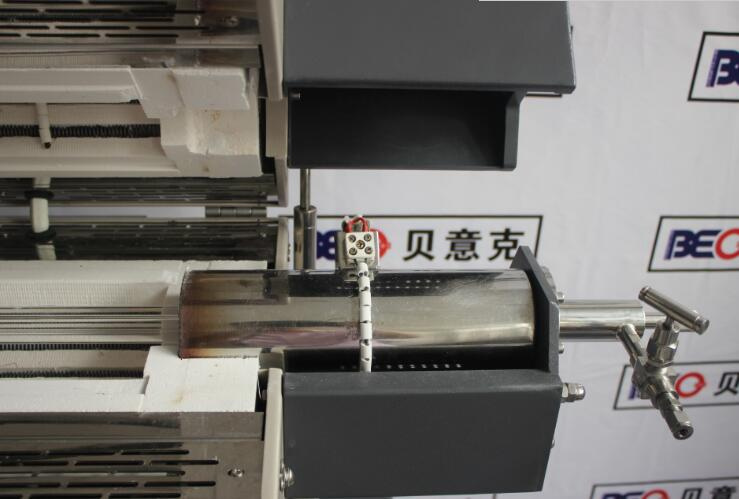

(2)It adopted specia explosion-proof quartz tube and protective sleeve outside strengthen.

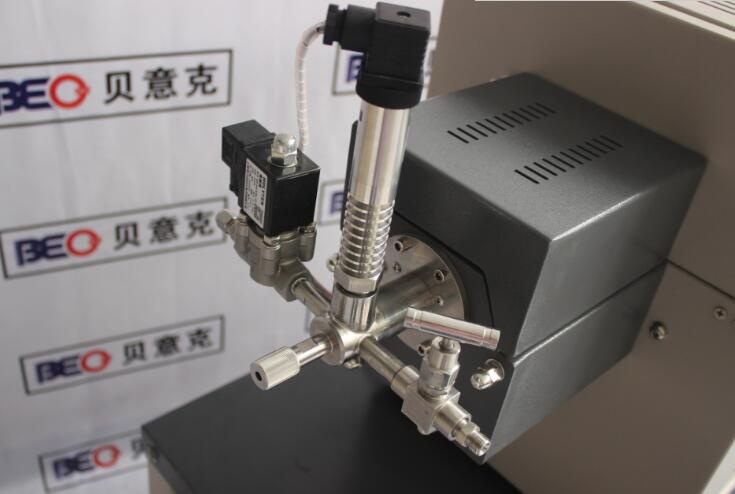

(3)The design of outlet end flange has the adjustable pressure relife valve .When the pressure
over the constant lever,It can relase extra pressure automaticly to promise the stability of furnace chamber.
Specification:
Power | 3KW |
Voltage | AC 220V single phase 50/60HZ |
Working temperature | Max. temperature 1200ºC(1 hour)
Working temperature≤1100ºC Heating rate≤50ºC/min |
Tube structure | Double later steel structure
High purity Al2O3fibrous insulation with max energy saving. High purity alumina coating on refractory ceramics for longer service life . |
Tube size |
ID50/ID60/ID80/ID100*100mm quartz tube(Optional)
(Optional tube: Two fibrous ceramic tube blocks are included for blocking heat radiation generated from tube center.(Ceramic blocks must be fullyed inserted into the furnace chamber before heating ) Quartz blocks are ideal for cleaner processing environment and higher vacuum efficiency.
|
Heating zong length | 440mm |
Constant zone length | 200mm |
Temperature controller |
*30 programmable segments for precise control of heating rate ,
cooling rate and dwell time. Built in PID auto-une function with overheating&brocken thermocouple brocken protection and over temperature protection and alarm allows for operation without attendants. Optional: The furnace maybe operated by PC by installing a control moudle. If you order the PC control moudle with the furnace ,we will install and test it before. The new version of PC is now compatible with Lab View 05/08/2014
|
Accuracy | ±1ºC
|
Heating element | Resistance wire
|
Standard accessory | quartz tube 1 pcs,stainless steel sealing flange 1set,silicon sealing ring2set,high temperature glove1pair,quartz block1 pcs. |
Adopted accessory | quartz crucible 1pcs,quartz hook 1pcs,manual baffle valve 1pcs,
corrugated pipe 1 pcs,vacuum gauge 1set,resistance monometer 1pcs and crucible hook 1pcs |
Warranty | One year limited warranty with lifetime support Consumable parts: such as processing tubes and o-rings are not covered by the warranty |
Size | 590×380×500mm(L*W*H) |
Packing size | 1150×530×810mm(L*W*H) (woody package) |
Net weight | 55KG |
Gross weight | 92KG |
