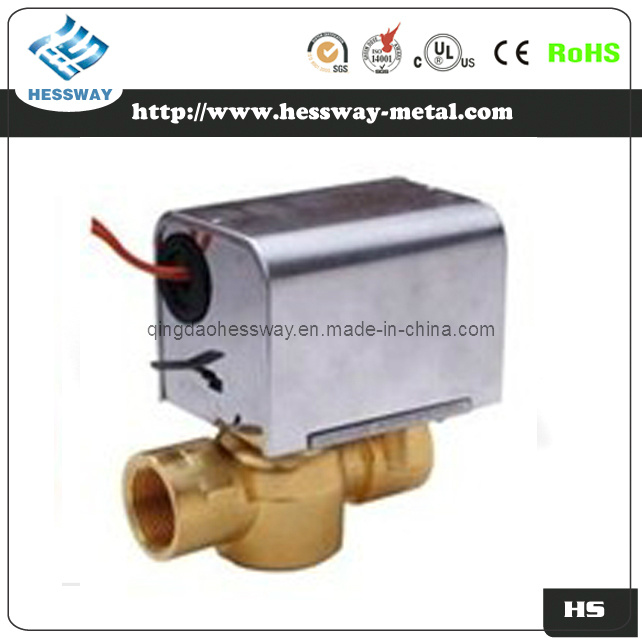

3way 2 Way Motorized Electric Flow Control Valve (HSSM-200)

3way 2 Way Motorized Electric Flow Control Valve (HSSM-200)
Price: US $ 10.6/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 50/Piece
Pay Type: L/C,T/T,D/P,Paypal,Money Gram
Product Description
Electric Flow Control Valve with CE SIZE: 1/2", 3/4", 1", (Optional)

Product Characteristics
1. Has compact size with smart shape, Perform reliably, has long life time.
2. The transmission system adopt new technology and made of metal gears with high output torque
3. Multi-angle assembly, convenience for different space allocation requirements.
4. Floating seal structure, no leak, suitable for heavy dirt and long time no action occasion.
5. Can replace the solenoid valve in the conditions that the solenoid valve can not be worked.
6. Varity of control methods, can both recognize the remote signal and feedback signal to the intelligent unit
7. Motor & manual integration designed with the indicator.
8. High protection class, can be worked in moist conditions.
9. Passed CE certification and RoHS certification

Technical indicators
Drive motor: Hysteresis synchronous motor
Applicable medium: Cold water, hot water
Body connection mode: In mid-december, pipe thread (can also be customized according to user demand)
Pieces of motor voltage and valve body to take over the form can be customized according to customer requirements

Material description
The valve body material: Forged brass
Stem material: Stainless steel (AISI302)
Sealing material: Nitrile rubber (NBR)
Drive chassis: Die casting aluminum alloy
Drive cover: Flame retardant ABS engineering plastics
Actuator motorHysteresis synchronous motorMedia temperature range2°C~90°C
Power supplyAC220V(User demand production)Ambient temperature0°C~60°C
Power consumption<7.5W Running time"on": Approx. 10s,"off": Approx. 5s
Output torque1.5~6.0N.mBody pressure1.6 MPa
Protect rankIP54Allow differential pressure≤0.13 MPa
Pipe ConnectionG/BSPPort Size1/2''(DN15), 3/4''(DN20), 1''  (DN25)
Prod Model: HSSM-200
Markets: South America,Eastern Europe,Southeast Asia,Africa,Mid East,Eastern Asia
Diameter: 1/2" , 3/4" , 1" , (Optional)
Structure: Through Way Globe Valve
Stem Thread Position: Outside Screw Stem Globe Valve
Standard: ANSI
Sealing Form: Gland Packings Globe Valve
Application: Bellows Globe Valve
Qingdao Hessway Machinery & Electric Equipment Co., Ltd. is specialized in a set of open, manufacturing and sales and after-sales services for the whole company. The products have been inspected by the State Administration of Quality Supervision and Inspection Center. Meanwhile the company has passed the state' S compulsory national certification in advance.

The Company adheres to the "people-oriented" business philosophy and takes "pursuing perfection and creating the future with unremitting efforts "as its management policy. We will try our best to provide high quality products and services. Together we will make a great success.
