Product Description

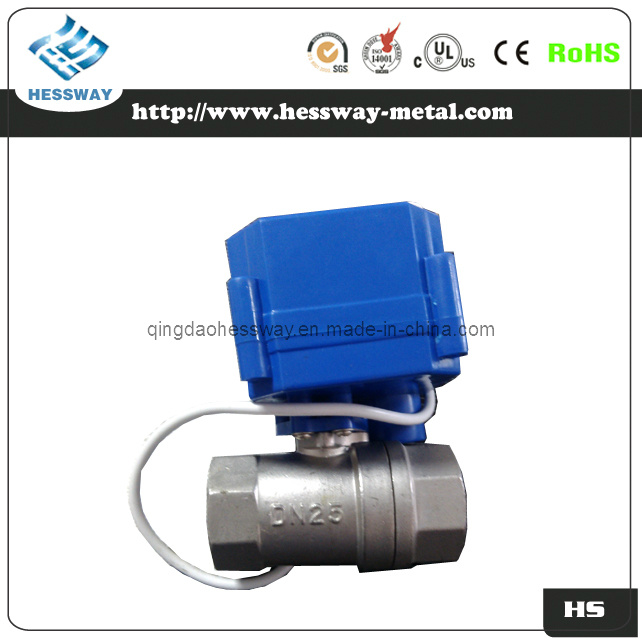

Mini Electric Valve CWX For Small Equipment, water treatment, HVAC, automatic control (HS-25B2B)
Product Characteristics
Mini dimension suits for small equipment
Patented technology-floating seal structure
Long service life 70,000 to 100,000 circles
Low working current, only 60 to 80mA
IP67 and F type are available
Manual override function is safe and easy
Applications
1) Very suitable for water treatment industry.
2) Demanding quick opening and quick closing.
3) Replacing normal solenoid valve, particularly when solenoid valve can't work reliably.
4) Water billing,
5) HVAC (Heating, Ventilating and Air Conditioning)
6) Solar water heater
7) Drinking water equipment
8) Automatic irrigation and water purification.
9) Small filtration system
10) Suitable for moisture condition.
Technical indicators
Size: 1/4 to 1-1/4 inches
Material: stainless steel (304, 316), brass, PPO
Voltage: 5, 12, 24, 110 to 220V AC/DC
Working pressure: 1.0
Max pressure:1.6mPa
Actuator rotation: 90 degree
Rotation direction: double acting
Power: maximum 5W
Manual override: available
Material description
Actuator: heat-resistant
ABSSealing: PTFE, silicon rubber ball seat, EPDM and NBR stem seat, NBR o-rings
Body: brass or stainless steel
Ball: brass or stainless steel
Stem: brass or stainless steel
Product size | NPT 1/2" NPT 3/4" NPT 1" NPT 1-1/4" Optional |
| Maximum working pressure | 1.6MPa |
| Circulation medium | Fluid, air |
| Rated voltage | 5, 12, 24, 110 to 220V AC/DC Optional |
| Working current | ≤80MA |
| Open/close time | ≤15S |
| Life time | 70000 times |
| Valve Body material | Brass Nickel plated Brass 304 Stainless steel 306 Stainless steel Optional |
| Max. torque force | 2Nm,4Nm,6 Nm Optional |
| Cable length | 0.3m, 0.3m, 0.7m Optional |
| Liquid temperature | 2centigrade - 90centigrade |
| Protect | IP67 |
| Manual override | Yes No Optional |
| Indicator | Yes No Optional |
