Specification

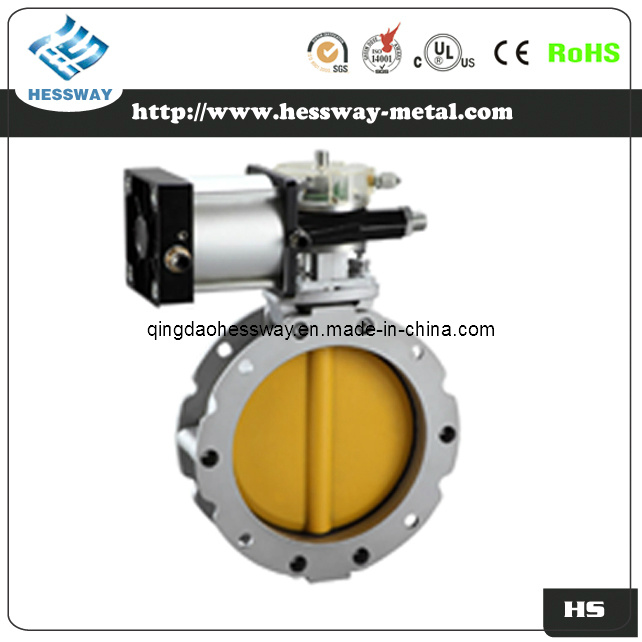

HSD-6X Series Pneumatic High Vacuum Butterfly Valve is a device which act by compressed air and electromagnetic device to drive the valve opening or closing with changing the airflow direction to control the rotation direction of the cylinder, and to turn on or cut off the vacuum airflow.
The applicable media is air and non-corrosive gas. In order to get the control automatically and reasonably please select the signal feedback device.
Widely used in petroleum, chemical, pharmaceutical, light industry, automatic control system.
Product Features
1. Small and lightweight, easy assembling and maintenance, and can be installed in any position.
2. Simple and compact structure with the 90 ° Rotating features in rapid opening and closing.
3. Minimized and energy saving operating torque
4. Flow characteristics close to straight line with excellent regulation performance
5. Thousands of times of open/close test to ensure long service life
6. Full seal, no gas leak
7. Different parts material can apply to a variety of medium.
Design Standard
Design basis: GB/T12237, ANSI B16.34, API 608
Structure length: GB/T12221, ASME B16.10, JIS B2002
End flange: GB/T9113, ASME B16.5, JIS B2212/JIS B2214
Wall thickness: ASME B16.34
Fire test: API 607 4th 1993
Detection and Test: GB/T 13927, API598, JIS B2003
|
Electric Explosion-proof Ball Valve Actuator technology parameters |
|
Type of actuator |
3610R series actuator parameters |
HQ series actuator parameters |
|
Power voltage |
Standard:220VAC Optional:110V AC \380/440V AC three-phase\24V/110V/220V AC |
|
Output Torque |
50N@M~1500N@M |
50N@M~3000N@M |
|
Movement range |
0~90° |
0~90°\0°~270°(Optional) |
|
Actuation time |
10second /15second /30second |
18S~112S |
|
Protective device |
Overheating protection, overload protection |
Built-in overheating protection, overload protection |
|
Protective device |
-20ºC~+70ºC |
|
Manual operation |
Operating handle |
Mechanical clutch mechanism, match the handwheel operation |
|
Mechanical limit |
Electrical and mechanical double limit |
Two external adjustment bolts |
|
Protection grade |
IP65\IP67 |
IP65\IP67\IP68(Customizable) |
|
Explosion-proof grade |
ExdII BT4 |
ExdII BT4\ExdII CT6 |
|
Position measuring |
Proportional control unit |
potentiometer\Proportional control unit |
|
Drive motor |
AC reversible motor |
Squirrel cage induction motor |
|
Shell material |
Aluminium alloy |
Steel, aluminum alloy, aluminum bronze, polycarbonate |
|
External coatings |
Dry powder, and epoxy polyester, it has strong corrosion function |
