(Interchangeable with Cameron Model FC Gate Valve)

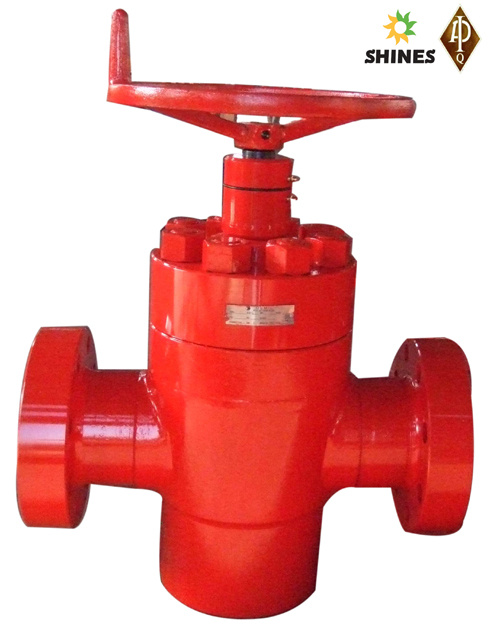

The FC gate valve features a non-rising stem with a slab gate, Full-Bore Thru-Conduit Design, Floating Slab Gate and Seats , floating seat ring body bushing design to provide safe dependable service. It is available in flanged or threaded ends in standard bore sizes from 1-13/16" thru 4-1/16" in working pressures of 5,000 psi thru 10,000 psi wp. Seat rings, body bushings, gate, stem are easily replaced in the field, Simple routine maintenance program limits repairs, eases operation, protects against corrosion, and extends service life.
SPECIFICATION
Manufactured and Tested in Accordance with API Spec 6A
Forged Steel Body and Bonnet
A True Bi-Directional Valve
Low Operating Torque
Quick Release Hand Wheel
API Spec 6A PSL, 1, 2, 3
Material Classes DD, EE, FF, to NACE MR-01-75
Available from 5000 psi to 15,000 psi in all Full-Bore Sizes
Item
|
Description
|
Qty
|
Material
|
Remark
|
1
|
Body
|
1
|
4130
|
|
2
|
Seat Seal Ring
|
4
|
TFLON
|
|
3
|
Seat
|
2
|
410
|
|
4
|
Body Bushing
|
2
|
Stellite.6
|
|
5
|
Retainer Plate
|
2
|
Steel
|
|
6
|
Guide
|
2
|
410
|
|
7
|
Gate
|
1
|
4130+HF
|
|
8
|
Stem
|
1
|
410
|
|
9
|
Bonnet Gasket
|
1
|
Steel
|
|
10
|
Bonnet
|
1
|
4130
|
|
11
|
Check Valve
|
1
|
Assy.
|
|
12
|
Grease Screw
|
1
|
Assy.
|
|
13
|
Nut
|
8
|
5140
|
|
14
|
Stud
|
8
|
4140
|
|
15
|
Stem Packing
|
1
|
TFLON
|
|
16
|
Packing Gland
|
1
|
Steel
|
|
17
|
Bearing Thrust
|
2
|
Steel
|
|
18
|
Stem Adapter
|
1
|
Steel
|
|
19
|
Stem Pin
|
1
|
Steel
|
|
20
|
O-Ring
|
1
|
NBR
|
|
21
|
Bonnet Cap
|
1
|
Steel
|
|
22
|
Grease Fitting
|
2
|
Assy.
|
|
23
|
O-Ring
|
1
|
NBR
|
|
24
|
Handwheel Pin
|
1
|
Steel
|
|
25
|
Handwheel
|
1
|
Steel
|
|
