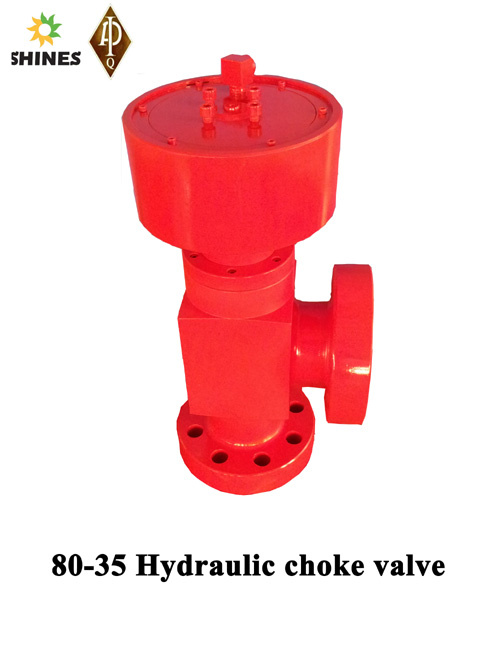

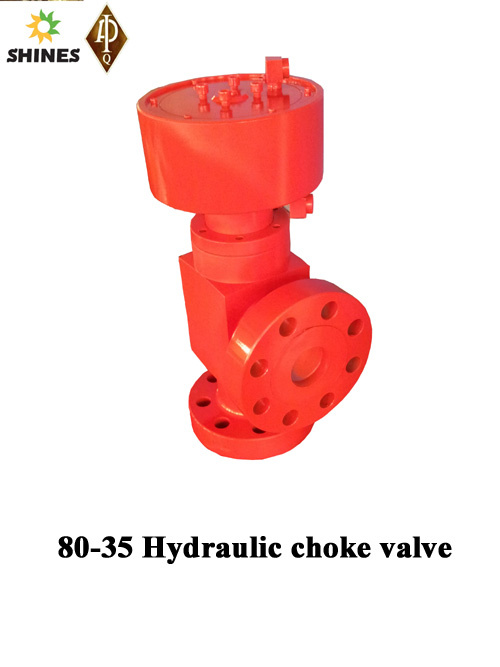

The hydraulic choke valve made in Jiangsu Shuangxin Petroleum Machinery Factory is used for adjusting the flow rate of manifold and other equipment. The hydraulic throttle valve controls the rate of flow by raising or lowering the position of the valve core.
Main Technical Parameter
Rated pressure: 2000-15000psi
Working temperature: p u
Working Medium: natural ga
|
Serial NO. |
Name |
Quantity |
Material |
Remark |
|
1 |
Valve body |
1 |
35CrMo |
|
|
2 |
Bushing |
1 |
FKM |
|
|
3 |
Valve seat bushing |
1 |
35CrMo |
|
|
4 |
O-ring |
1 |
Rubber |
|
|
5 |
Valve seat |
1 |
YG8 |
|
|
6 |
Fastening cap |
1 |
45 |
|
|
7 |
Valve core |
1 |
YG8 |
|
|
8 |
Lower fluid guide bushing |
1 |
2Cr13 |
|
|
9 |
Upper fluid guide bushing |
1 |
2Cr13 |
|
|
10 |
Valve stem |
1 |
2Cr13 |
|
|
11 |
O-ring |
1 |
Rubber |
|
|
12 |
O-ring |
2 |
Rubber |
|
|
13 |
Valve Bonnet |
1 |
35CrMo |
|
|
14 |
Oil cylinder |
1 |
35CrMo |
|
|
15 |
Oil cylinder joint |
2 |
35CrMo |
|
|
16 |
O-ring |
2 |
Rubber |
|
|
17 |
O-ring |
2 |
Rubber |
|
|
18 |
O-ring |
2 |
Rubber |
|
|
19 |
Piston |
1 |
45 |
|
|
20 |
Cylinder cover |
1 |
35CrMo |
|
|
21 |
Clip |
1 |
65Mn |
|
|
22 |
Screw |
4 |
35CrMo |
|
|
23 |
Washer |
1 |
35CrMo |
|
|
24 |
O-ring |
2 |
Rubber |
|
|
25 |
Valve bonnet nut |
8 |
40Cr |
|
|
26 |
Packing Gland |
1 |
40Cr |
|
|
27 |
Valve bonnet bolt |
8 |
35CrMo |
|
|
28 |
Packing ring |
2 |
2Cr13 |
|
|
29 |
Packing |
5 |
FKM |
|
| Prod Model: |
JLKY series |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Size: |
1 13/16" - 4 1/16" |
| Material Class: |
AA-Ff |
| Specification Level: |
Psl1, 2, 3 |
| Performance Level: |
RP1 |
| Usage: |
Oil (',Gas) Production Machinery |
| Type: |
Petroleum Drilling Machine |
| Certification: |
API 6A |
