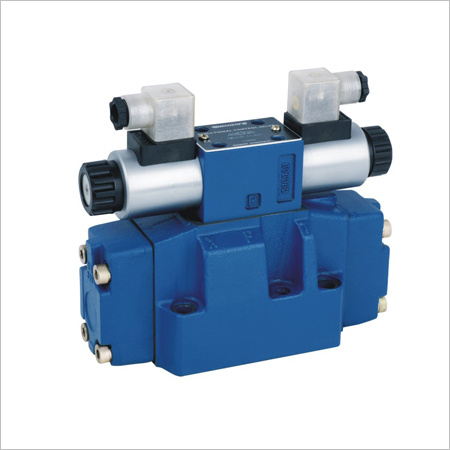

4WEH series solenoid pilot operated directional valves are solenoid pilot operated spool type valves. This series are used to control the start, stop and direction of flow. 4WH series hydraulic operated directional valves can be used to change the direction of hydraulic oil by moving the main spool when the valve receives a hydraulic signal from the pilot hydraulic oil.

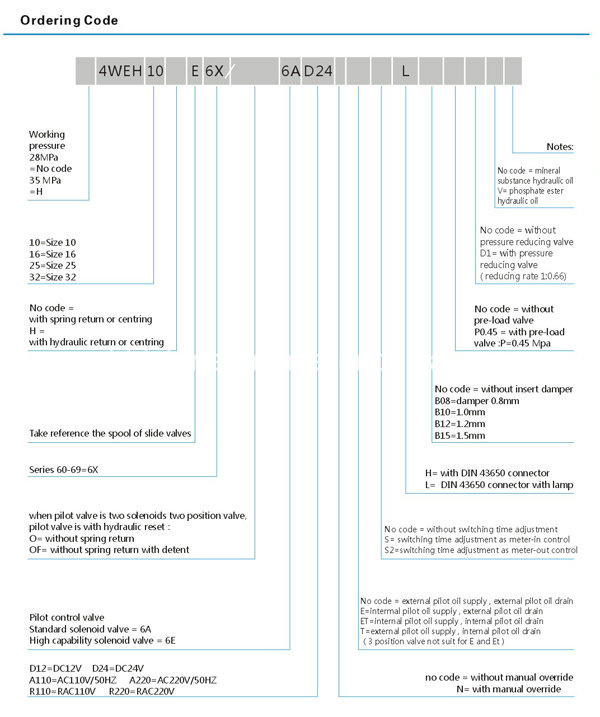

Ordering Code:
Technical Specification:| T port (MPa) | Oil outer discharge control | 31.5 |
| Oil inner discharge control | DC: 21, AC: 16 |
| Y port (MPa) | Oil inner discharge control | DC:21 , AC: 16 |
| Min. Control Pressure (MPa) | Oil outer supply control, Oil inner supply control (not for C, Z, F, G, H, P, T, V) | 3 position valve:1 |
| Spring reset 2 position valve: 1 |
| Hydraulic reset 2 position valve:0.7 |
| Oil inner supply control (for C, Z, F, G, H, P, T, V) | 0.45 |
| Max. control pressure (MPa) | 25 |
| Liquid Medium | Mineral oil, phosphonolipid oil |
| Oil Tep. range | -30ºC to +80 ºC (nitrile ruber seal) -20ºCto+80ºC (rubber seal) |
| Viscosity range (mm2/s) | 2.8 to 500 |
| Flow control during swiching (cm3) | 3 position: 2.04, 2 position: 4.08 |
| Switching time of 0 position to switching position |
| Control pressure(MPa) | 7v | 14v | 21v | 25v |
| AC | DC | AC | DC | AC | DC | AC | DC |
| 3 Position (ms) | 30 | 65 | 25 | 60 | 20 | 55 | 15 | 50 |
| 2 position (ms) | 35 | 80 | 30 | 75 | 25 | 70 | 20 | 65 |
| Switching time of switching position to 0 position |
| 3 position valve(ms) | 30 |
| 2 position vave (ms) | 35 | 40 | 30 | 75 | 25 | 70 | 20 | 25 |
| Min. switching time flow (l/m) | about 35 |
| Mounting position | horizontal position for HC, HD, HK,HZ Hy, any position for other else. |
| Weight (kg) | single solenoid valve | 6.4 |
| double solenoid valve | 6.8 |
| switching time adjuster | 0.8 |
| relief valve | 0.5 |
General Specification:
| Votage type | DC | AC |
| Votage | 12, 24, 48, 96, 110,220 | 110, 220 |
| Rated power (W) | 30 |
|
| Absorbed Power (W) |
| 36 |
| Starting voltage |
| 220 |
| Operating state | continuous operation |
| Surrounding Temp range (ºC) | +50 |
| Coil Temp. range(ºC) | + 150 |
| IP grade | IP65 |

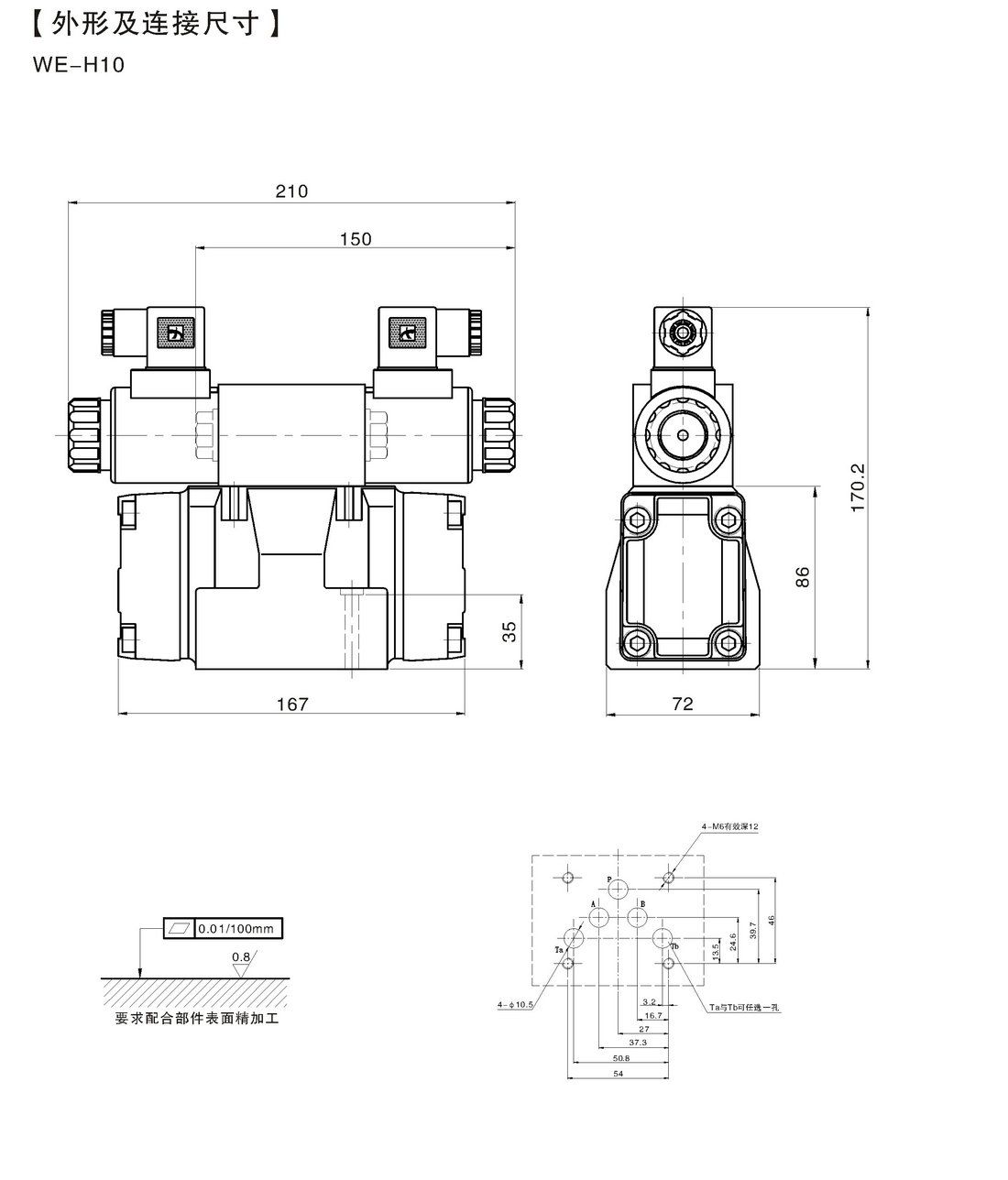

Mounting Size:
