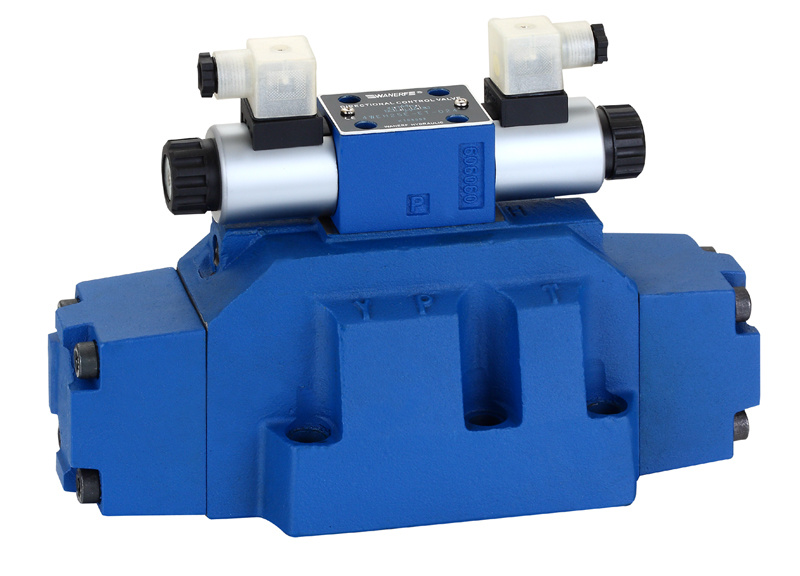

4WEH series solenoid pilot operated directional valves are solenoid pilot operated spool type valves. This series are used to control the start, stop and direction of flow. 4WH series hydraulic operated directional valves can be used to change the direction of hydraulic oil by moving the main spool when the valve receives a hydraulic signal from the pilot hydraulic oil.

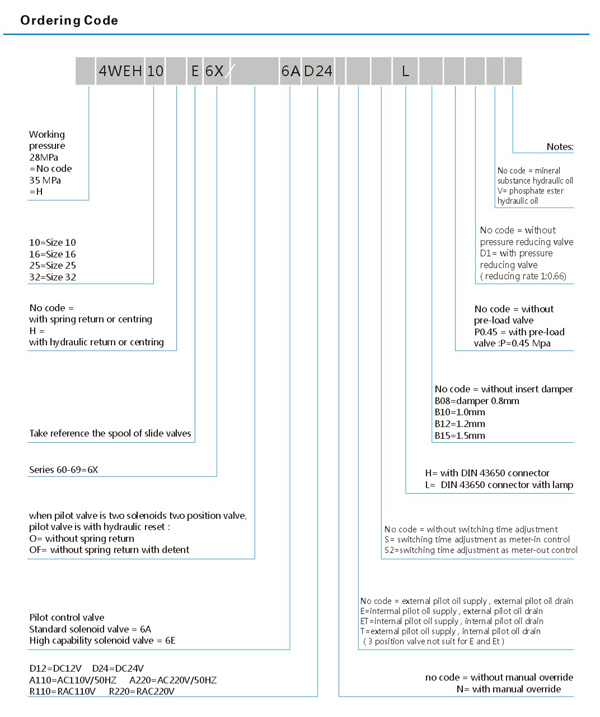

Ordering Code:Technical Specification:Hydraulic specification: Max. Operating Pressure (P, A, B port) | H-WEH25 type | WEH25 type |
35 | 28 |
T port | Oil Outer discharge control (MPa) | 25 | 25 |
Oil inner discharge control (MPa) | DC:21 | AC:16 |
|
|
Y Port | Oil outer discharge control (MPa) | DC: 21 | AC: 16 |
Min. control pressure | Oil inner supply control (MPa) | Spring reset 3 position valve: 1.3 Spring reset 2 position valve: 1.3 Hydraulic reset 3 position valve: 1.8 Hydraulic reset 2 position valve: 0.8 Spool function valve symbol C, Z, F, G, H, P, S, T, V and big flow rate: 0.45 |
Max.control pressure (MPa) | 25 |
Liquid medium | mineral oil, phosphate oil |
Oil Temperature range (ºC) | -30 to +80 (nitrile rubber seal) -20 to +80( fluororubber seal) |
Oil viscosity range (mm2)/s | 2.8-500 |
Max. oil volume of reversing |
Spring reset 3 position valve(cm3) | 14.2 |
2 position valve(cm3) | 28.4 |
Hydraulic reset 3 position valve |
position 0 to position a (cm3) | 7.15 |
position a to position 0 (cm3) | 7.0 |
position a to position b (cm3) | 14.5 |
position b to position 0 (cm3) | 5.73 |
Reversing time of position 0 to operating position (AC and DC solenoid):Pilot control pressure(MPa) | 5 | 15 | 25 |
AC | DC | AC | DC | AC | DC |
Spring reset 3 position valve(ms) | 50 | 85 | 40 | 75 | 30 | 65 |
Spring reset 2 position valve(ms) | 120 | 160 | 100 | 130 | 70 | 105 |
Hydraulic reset valve( ms) | a | b | a | b | a | b | a | b | a | b | a | b |
| 30 | 35 | 55 | 65 | 30 | 35 | 55 | 65 | 25 | 30 | 50 | 60 |
Reset time of operating position to position 0:Spring reset 3 position valve(ms) | 40 |
Spring reset 2 position valve(ms) | 120 | 125 | 95 | 100 | 75 | 80 |
Hydraulic reset 3 position valve(ms) | a | b | a | b | a | b | a | b | a | b | a | b |
| 30 | 35 | 30 | 35 | 30 | 35 | 30 | 35 | 30 | 35 | 30 | 35 |
Mounting position | Horizontal mounting for C, D, K, Z, Y type hydraulic reset valve, any position for other else |
flow rate of short time reversing(l/m) | about 35 |
Weight of total valve (kg) | about 18 |
General Specification:Votage type | DC | AC |
Votage | 12, 24, 48, 96, 110,220 | 110, 220 |
Rated power (W) | 30 |
|
Absorbed Power (W) |
| 36 |
Starting voltage |
| 220 |
Operating state | continuous operation |
Surrounding Temp range (ºC) | +50 |
Coil Temp. range(ºC) | + 150 |
IP grade | IP65 |

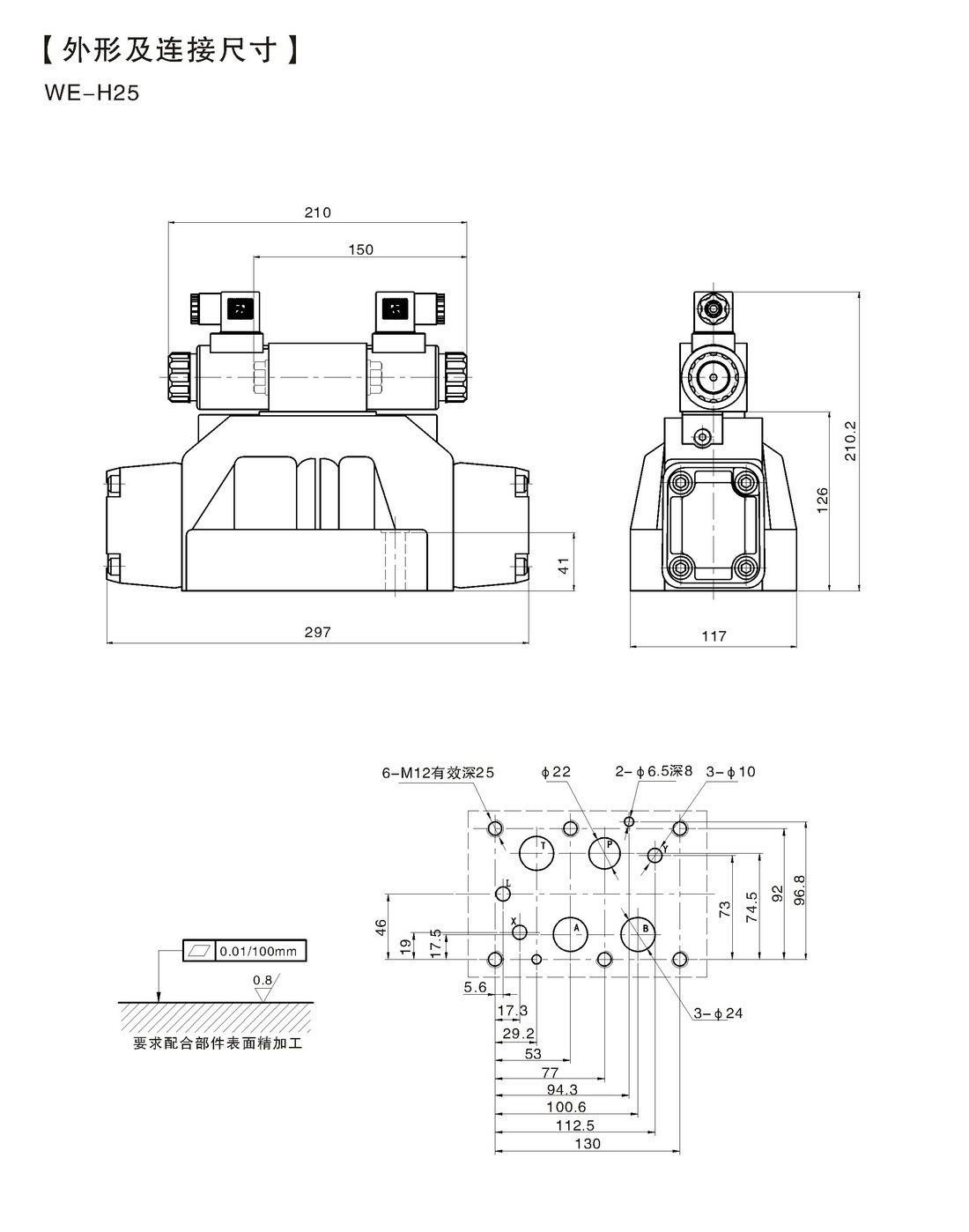

Mounting Size:
