Specifications

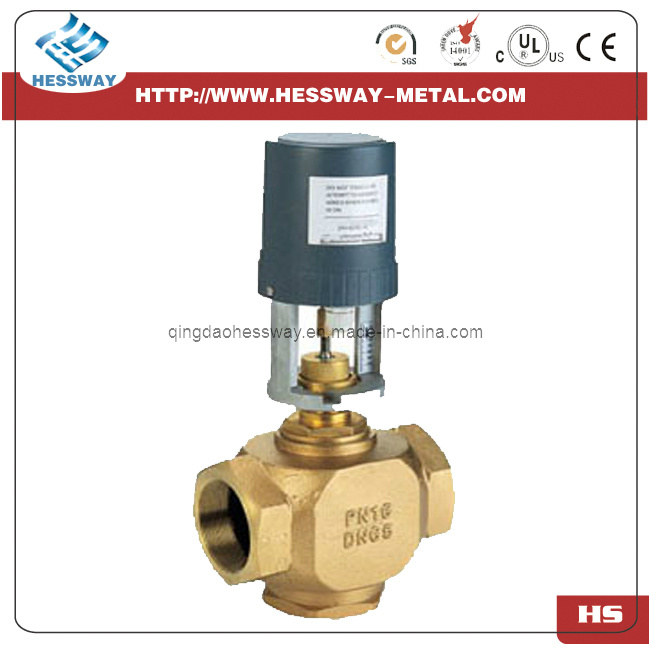

HS-FLVG7000/FLVA3102Series control valve for air conditioning, refrigeration, heating and other building automation and control system,Also used in chemical, petroleum, metallurgy, electric power, light industry production process automatic control system.Under receiving a control signal at input, temperature adjustment,pressure regulation, the humidity control can be completed,it can control the system parameters such as flow and level.Mainly used for transporting cold, hot water and steam and ethylene glycol solution and other media.
Basic Features
1. Control the open/close/middle through cutting off power supply or input signal outside.
2. Small, light and tight.
3. Easy operation
4. Power could be cut off manually.
5. Overheating protection motor could avoid damage.
Scope of application
1, HVAC field
2, Low-temperature Heating System
3, Control System for Flow, Pressure, temperature and Humidity
4, Variable Flow Volume System, to Control water Flow thru loading of AHU or Heating Exchanger
| Model | Valve Type | Nominal diameter | Nominal pressure | Working medium | Voltage | Core and Seat | Stem | Valve Body | Spring |
| FLVB7000 | 2-way | DN32-DN125 | 1.6MPa | Fluid temperature
-10~ 150 °C | AC24V(As per your order) | Brass | 1 Crt 8Ni9 | Cast Iron | : Stainless Steel |
| FL VA3102 | 2-way |
