DSHG series solenoid pilot operated directional valves are solenoid pilot operated spool type valves. This series are used to control the start, stop, and direction of flow.
DHG series hydraulic operated directional valves can be used change the direction of hydraulic oil by moving the main spool when the valve receives a hydraulic signal from the pilot hydraulic oil.

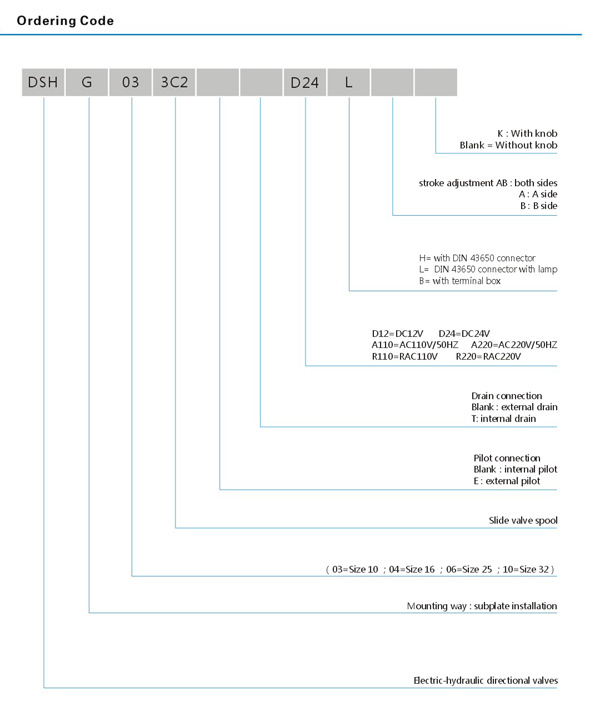

Ordering Code:
Symbol:
Function table:DSHG-06 (3 Position)
| Spring reset | Hydraulic reset |
| Spool type | Max. Flow Rate (l/m) | Spool type | Max. Flow rate(l/m) |
| 10MPa | 16MPa | 25MPa | 31.5MPa | 10MPa | 16MPa | 25MPa | 31.5MPa |
| DSHG-06-3C2 | 500 | 500 | 410 | 310 | DSHG-06-3H2 | 500 | 500 | 500 | 420 |
| 500 | 500 |
| DSHG-06-3C3 | 500 | 500 | 460 | 370 | DSHG-06-3H3 | 500 | 500 | 500 | 500 |
| 310 |
| DSHG-06-3C4 | 500 | 500 | 410 | 500 | DSHG-06-3H4 | 500 | 500 | 500 | 420 |
| 500 | 500 |
| DSHG-06-3C40 | 500 | 500 | 410 | 500 | DSHG-06-3H40 | 500 | 500 | 500 | 420 |
| 500 | 500 |
| DSHG-06-3C5 | 500 | 500 | 425 | 230 | DSHG-06-3H5 | 500 | 500 | 500 | 470 |
| 500 |
| DSHG-06-3C6 | 475 | 390 | 300 | 280 | DSHG-06-3H6 | 500 | 500 | 500 | 420 |
| 500 |
| DSHG-06-3C60 | 475 | 420 | 340 | 360 | DSHG-06-3H60 | 500 | 500 | 500 | 420 |
| 500 |
| DSHG-06-3C7 | 500 | 500 | 450 | 360 | DSHG-06-3H7 | 500 | 500 | 500 | 500 |
| DSHG-06-3C9 | 500 | 500 | 450 |
| DSHG-06-3H9 | 500 | 500 | 500 | 500 |
| 500 | 500 |
| DSHG-06-3C10 | 500 | 500 | 410 | 310 | DSHG-06-3H10 | 500 | 500 | 500 | 460 |
| 500 | 500 | 500 |
| DSHG-06-3C11 | 500 | 500 | 410 | 310 | DSHG-06-3H11 | 500 | 500 | 500 | 460 |
| 500 | 500 | 500 |
| DSHG-06-3C12 | 500 | 500 | 410 | 310 | DSHG-06-3H12 | 500 | 500 | 500 | 460 |
| 500 | 500 | 500 |
DSHG-06 (2 Position)
| Spring reset | Spring reset |
| Spool type | Max. Flow rate (l/m) | Spool type | Max. Flow rate( l/m) |
| 10MPa | 16MPa | 25MPa | 31.5MPa | 10MPa | 16MPa | 25MPa | 31.5MPa |
| SDHG-06-2N2 | 500 | 500 | 500 | 500 | SDHG-06-2N2 | 500 | 500 | 500 | 500 |
| SDHG-06-2N3 | 500 | 500 | 500 | 500 | SDHG-06-2N3 | 500 | 500 | 500 | 500 |
| SDHG-06-2N4 | 500 | 500 | 500 | 500 | SDHG-06-2N4 | 500 | 500 | 500 | 500 |
| SDHG-06-2N40 | 500 | 500 | 500 | 500 | SDHG-06-2N40 | 500 | 500 | 500 | 500 |
| SDHG-06-2N7 | 500 | 500 | 500 | 500 | SDHG-06-2N7 | 500 | 500 | 500 | 500 |
Mounting Size:
