Quick Details
| Standard or Nonstandard: | Standard | Structure: | air vent | Pressure: | Low Pressure PN10, PN16, PN25 |
| Power: | Hydraulic | Material: | cast iron | Temperature of Media: | Normal Temperature |
| Media: | water, neutral oil | Port Size: | DN50-DN600 | Place of Origin: | Hebei, China (Mainland) |
| Model Number: | Air Valve | Brand Name: | Liqian | Coating: | Epoxy Powder Coating |
| Color: | Blue |
Packaging & Delivery
| Packaging Details: | wooden box or wooden pallet for Air Valve |
| Delivery Detail: | within 30days,or depends on your order quantity of Air Valve |

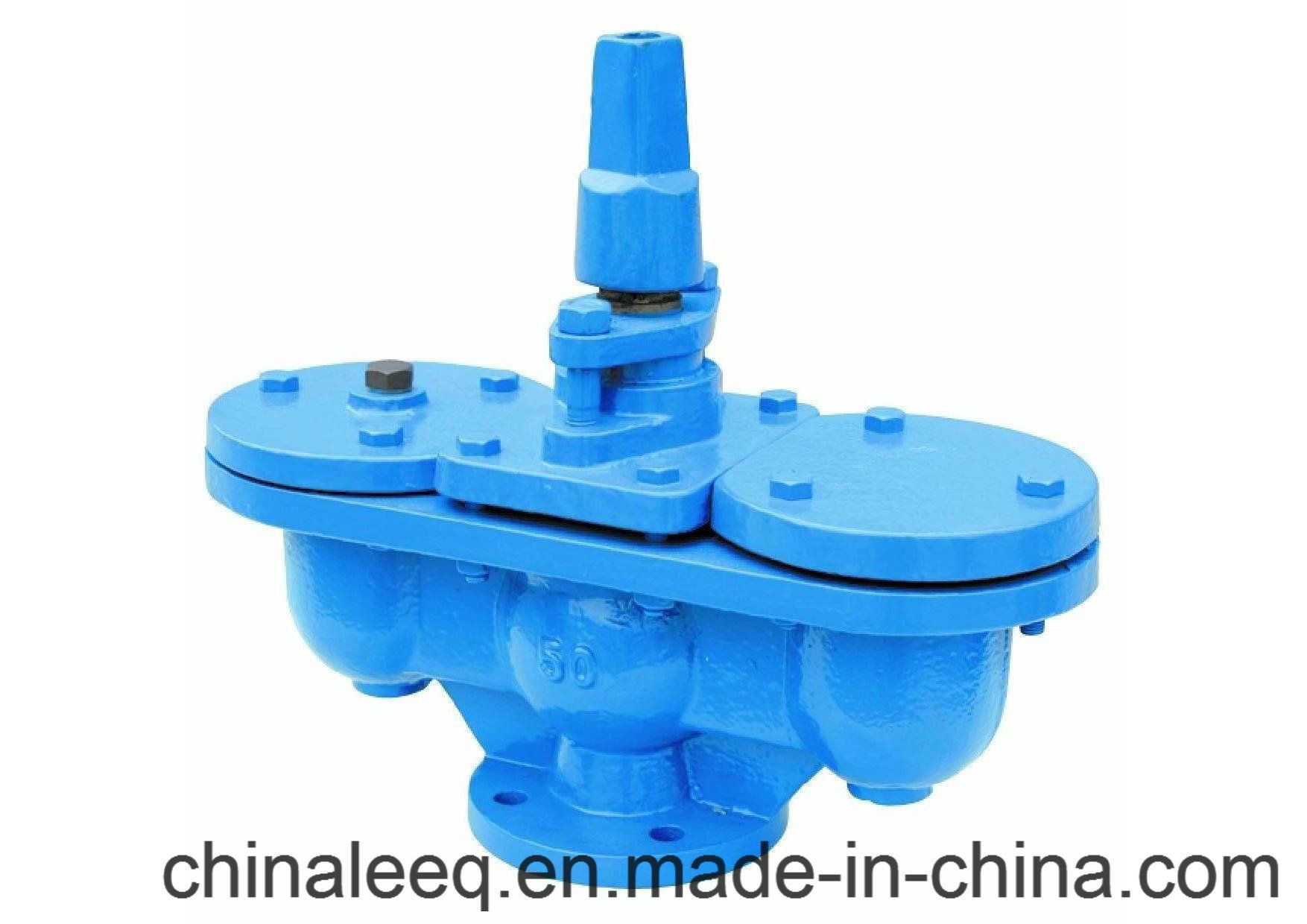

Ductile Cast Iron Automatic Air Release Valve With Twin Ball :
1. Certification: ISO9001, API600, CE0036, TS
2. Design: GB 12237-1989, DIN3320-F32, DIN3202 F1, DIN3356, MS SP-85, EN13709
3. Test: API598, JB/T 9092-1999, JB/T 9002, GB/T13927-1992
4. Flange Drilling: BS4504 Table 10/11,16/11, EN1092 PN10/PN16
5. Flange Connection: BS21, ANSI B1.20.1, ANSI B16.1 Class125/150, AS4087 PN14/16
DIN 2501 PN6/10/16, EN1092-2 PN6/10/16, BS10 Table D/E, JIS B2220
6. Standards: BS5163, BS5150 AWWA, DIN3352 F4/F5, GB/T 1348-2009
7. Tightness Check: API 598, ISO5208, EN12226-2
8. Coating: Epoxy powder coating, or coating as customers' requirement
Material of Air Valve:
Materials List |
Item | Part Name | Materials |
1 | Body | Cast Iron: ASTM A126CL. B, DIN1691 GG25, EN 1561 EN-GJL-200, GB12226 HT200, A126 Class B, QT400-15 Ductile Cast Iron: ASTM A536 65-45-12, DIN 1693 GGG40, EN1563 EN-GJS-400-15, EN-JS1050, GB12227 QT450-10 |
2 | Bonnet/Cover | Ductile Iron: ASTM-A-536, GGG500-7, QT450-10 Cast Iron: QT400-15 |
3 | Disc | Stainless Steel: ASTM A351 CF8, CF8M, CF3, CF3M, EN 1.4408, 1.4469, 1.4501 Al-Bronze: ASTM B148 C95400 |
4 | Seat | Stainless Steel 304 |
5 | Float Ball | NBR, Stainless Steel, Brass |
6 | Stuffing Box | Cast Iron: FCD 450, QT450-10 |
7 | Bracket | Stainless Steel 304 |
8 | Spindle | Bronze: C95800 |
9 | Stem Nut | Bronze: C95800 Stainless steel, BS970 431S29, DIN17440x20Cr13 |
10 | Spindle Cap | Cast Iron: FCD 450, QT450-10 |
11 | Stopper Washer | Cast Iron, Stainless Steel 304 |
12 | Poppet | Stainless Steel,Al-Bronze |
