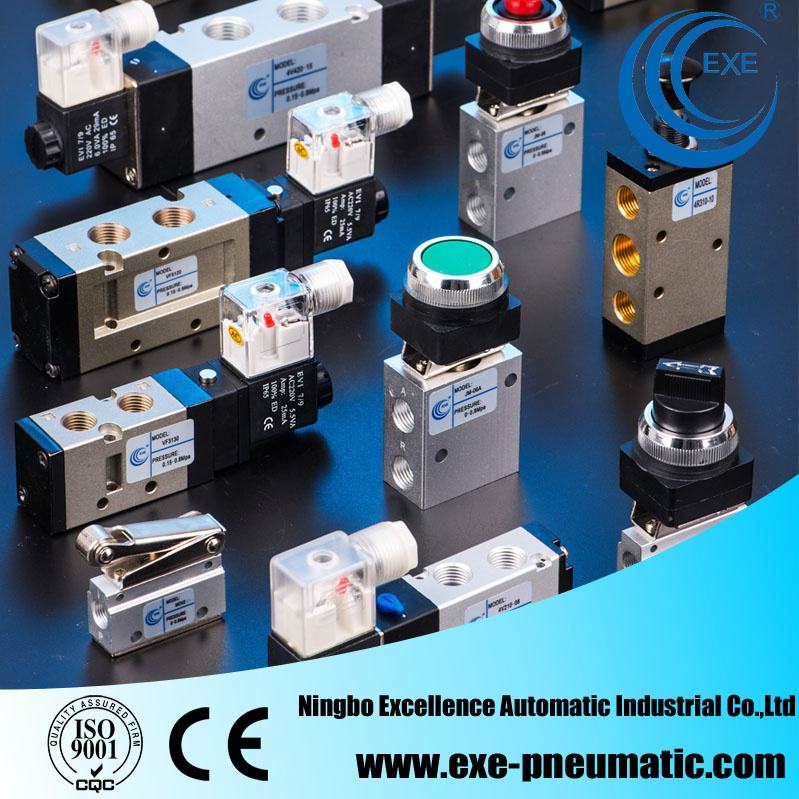

Excellence Solenoid Valve/Pneumatic Valve
| Price: |
US $ 2.5/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
50/Piece |
| Pay Type: |
L/C,T/T,D/P,Paypal,Western Union |
Features
1. 4V210-08 air solenoid valves 220V AC Aluminum body 2. 5-way pneumatic solenoid valve 3. Lead type/ 1/8" /12V, 24V, 110V 4. Inner type/aluminum alloy 4V series solenoid valves are suitable for operating double or single acting cylinders in pneumatic control system. They have 5 ports and 2 or 3 positions. And 4 type's valve bodies are provided. They are 4V100, 4V200, 4V300 and 4V400 etc. The ports size can be from M5 to 1/2".The solenoid operated valves can be mounted in line.The pilot valve is supplied with manual override and connector as standard.| Model | 4V110-06 | 4V210-08 | 4V310-10 | 4V410-15 |
| Working Medium | 40 Micron filtered air |
| Motion Pattern | Inner ggide type |
| The Position | Two-position five-port |
| Effetive Area | 12mm 2 (CV=0.67) | 16mm 2 (CV=0.78) | 30mm 2 (CV=1.68) | 50mm 2 (CV=2.79) |
| Joint Pipe Bore | Inlet=outlet=exhaust=G1/8 | Inlet=outlet=exhaust=G1/4 | Inlet=outlet=exhaust=G1/4 | Inlet=outlet=exhaust=G1/2 |
| Glide | Have no usefor |
| Working-Pressure | 1.7-7.0kg/cm 2 (24-100psi) |
| Max. Pressure-Resistce | 10.5kg/cm2(150psi) |
| Operating Temperature | 5-50 |
| Voltage Range | ± 10% |
| Power Consumption | AC: 1.3VA DC: 1.5W |
| Insulation | F Class |
| Protect | IP65(DIN40050) |
| Wiring Form | Direct outlet or terminal type |
| Highest Action Frequency | 5 cycle per sencond |
| Shortest Excitation | 0.05 second |
| Weight | 120g | 200g | 310g | 590g
|
| Prod Model: |
Solenoid Valve/Pneumatic Valve 4V210-08 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Certificate: |
ISO9001:2008 |
| Thread Standard: |
NPT, BSPT, Bsp |
| Export Markets: |
Global |
| Voltage: |
AC110V 220V DC12V 24V |
| Fluid: |
Air, Water, Gas, Oil |
| Function: |
Change The Flow Direction |
| Port Size: |
1/4" |
| Way: |
5 Way 2 Position |
| Lead Time: |
15-20 Days |
| Mark: |
Exe |
| Connection Form: |
Thread |
| Type: |
Direct Acting |
| Valve Structure: |
Pilot Membrane Structure |
| Power Supply: |
AC Solenoid Valve |
| Application: |
Household Usage |
Ningbo Excellence Automatic Industrial Co., Ltd is a leading pneumatic products manufacturer in China. And our products covers solenoid valve, air source treatment unit, control element and executive element etc, which are widely used in industries such as machinery, textile, food, enviromental protection. Our company posesses all the production capability and capacity to produce from raw material up to the finished product under requirement of ISO9001: 2008 and CE.
This production capability, coupled with R&D incorporating new technologies and know-how, enables us to serve long lasting, reliable products which can expand to a wide range of diversity.
Our goal is supplying the best qualtiy and service through advanced technology to customers.
Welcome to Ningbo Excellence Automatic Industrial Co., Ltd!
