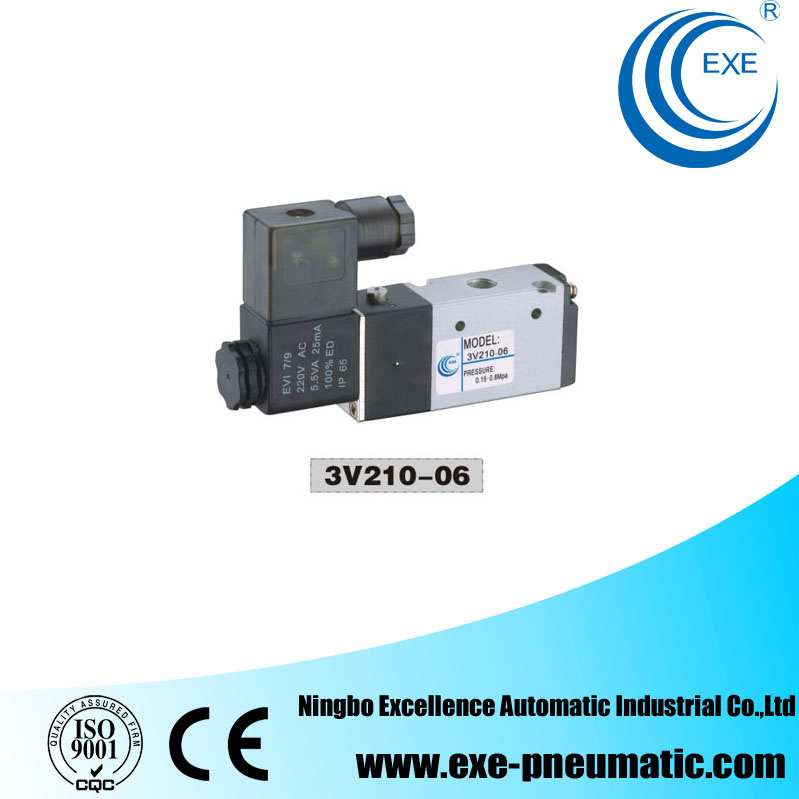

Exe Pneumatic 2/3 Way Solenoid Valve 3V210-06
| Price: |
US $ 3.5/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
50/Piece |
| Pay Type: |
L/C,T/T,D/P,Paypal,Western Union |
Product Description 1. Integral slot piston structure2. Process valve hole with special high precision finishing process3. Beautiful appearance4. Good reverser5. Reliable performance6. Seal wear can automatic compensate| Specification: |
| Model | 3V210-06 |
| Fluid | Air |
| Action | Internally Piloted Acting Type |
| Valve Type | 2/3 Way |
| Effective area (Square meters) | 10 square meters (CV=0.56) |
| Port Size | 1/8 |
| Lubrication | Not required |
| Operating Pressure | 1.5-0-8.0kgf/ Square meters |
| Proof Pressure | 10.5kgf/Square meters |
| Ambient & fluid temperature | -5~60 degree centigrade |
| Voltage range | ±10% |
| Protection | IP65 |
| Connection | Lead Wire Type or terminal type |
| Max Frequency | 5 cycle /sec |
| Min. response time | 0.05 sec |
Main parts material Body
Seal | Aluminum Alloy |
| NBR |
| Prod Model: |
Solenoid Valve 3V210-06 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Certificate: |
ISO9001:2008 CE, RoHS |
| Thread Standard: |
NPT, BSPT, Bsp |
| Coil And Place: |
Single Head and Double Position |
| Voltage: |
AC110V 220V DC12V 24V |
| Fluid: |
Air, Water, Gas, Oil |
| Function: |
Change The Flow Direction |
| Port Size: |
1/8" |
| Way: |
3 Way 2 Position |
| Lead Time: |
15-20 Days |
| Guarantee: |
One Year |
| Connection Form: |
Thread |
| Type: |
Direct Acting |
| Valve Structure: |
Pilot Membrane Structure |
| Application: |
Household Usage |
| Power Supply: |
AC/DC |
