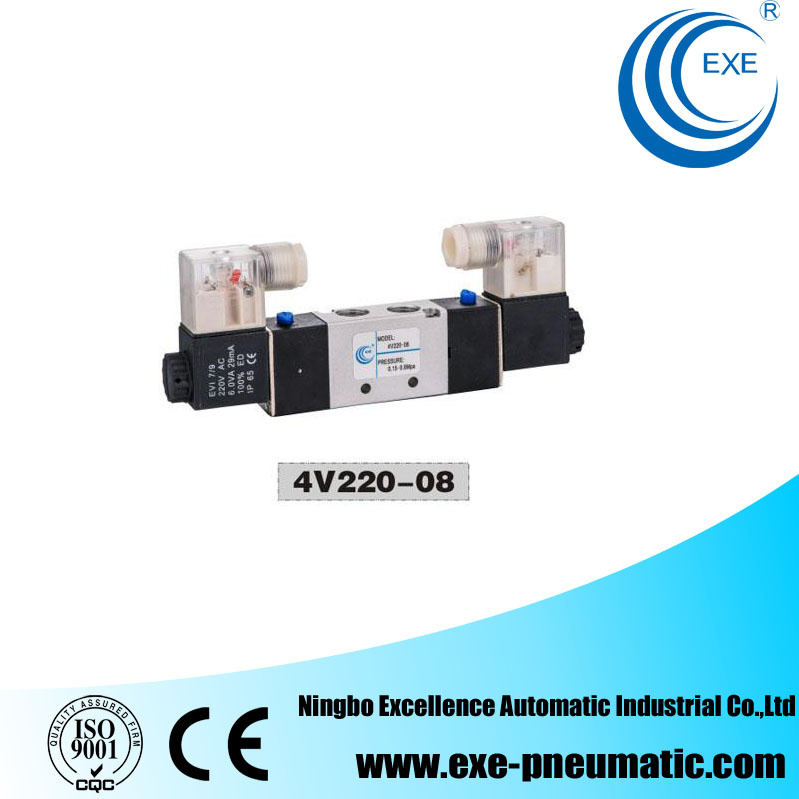

Product Description This series solenoid valve is two-position five port valve. It's belong to single power &double position type. There are four port size, G1/8, G1/4, G3/8, G1/2.
Features1.High-strength aluminum alloy botton cover2.One-time machining of valve lever by CN,high precision3.Valve body was machining by CNC,clean and beautifull4.Spacial processing of inner hole,small friction resistance and low starting pressure5.High-precision pilot accessories,excitation time of only 0.05 seconds6.Imported seals,the life up to 10 millions of times7.Aluminum alloy piston is not easy to damage8.Embedded copper nut not easy to loose9.With a manual device for installation and testing10.Copper coil has avariety of voltage available for selection| Model | 4V220-06 | 4V220-08 |
| Working medium | Compressed air by 40um filter and be lubricated |
| Position number | Three position and five port |
| Acttion mode | Air pilot operated |
| Port size | G1/8" | G1/4" |
| Lubrication | No need |
| Working pressure | 0.15~0.8MPa(21~114Psi)(1.5~8bar) (1.5~8kf/cm3) |
| Proof-pressure | 1.5MPa(217.5Psi)(15bar)(15kf/cm3) |
| Working temperature | -20~70°C |
| Flowing (L/min) | 1500 | 1700 |
| Main material | Aluminum alloy |
| Weight (kg) | 0.306 |
| Action frequency | 5 times/second |
| Life | More than 10 million by normaly working |
Ningbo Excellence Automatic Industrial Co., Ltd is a leading pneumatic products manufacturer in China. And our products covers solenoid valve, air source treatment unit, control element and executive element etc, which are widely used in industries such as machinery, textile, food, enviromental protection. Our company posesses all the production capability and capacity to produce from raw material up to the finished product under requirement of ISO9001: 2008 and CE.
This production capability, coupled with R&D incorporating new technologies and know-how, enables us to serve long lasting, reliable products which can expand to a wide range of diversity.
Our goal is supplying the best qualtiy and service through advanced technology to customers.
Welcome to Ningbo Excellence Automatic Industrial Co., Ltd!
