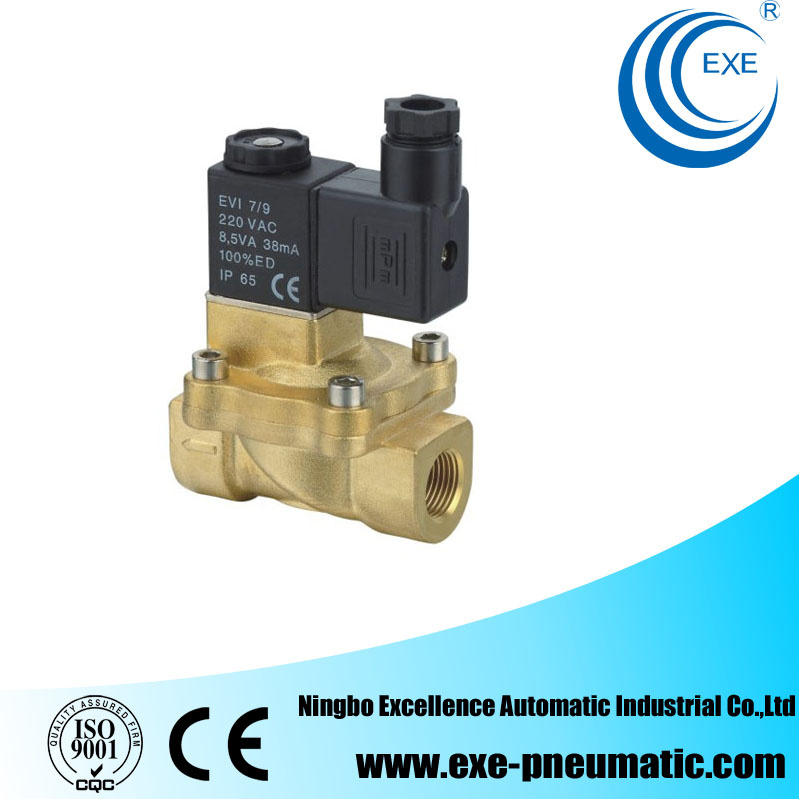

Exe 2/2 Pneumatic Direct Acting Air Water Solenoid Valve 2V025-08
| Price: |
US $ 5.5/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
50/Piece |
| Pay Type: |
L/C,T/T,D/P,Paypal,Western Union |
2V Series solenoid valves range from 1/8" to 1". The 2/2 way valves are compactly design with low weight and working power, which can work under a pressure of 1.0 MPa. Model : 2V025-08Fluid : 40 Micron Filtered Air;Operation Type : Direct ActionType : 2 Position 2 Way| Model | 2V025-06 | 2V025-08 | 2V031-08 | 2V130-10 | 2V130-15 | 2V250-20 | 2V250-25 |
| Working Medium | Air,water,Oil |
| Motion Pattern | Direct Drive Type | Guide Type |
| Type | Normal Close Type |
| Aperture of Flow Rate | 2.5 | 3.1 | 13 | 25 |
| CV Value | 0.23 | 6.2 | 23 |
| Joint Pipe Bore | G1/8 | G1/4 | G1/4 | G3/8 | G1/2 | G3/4 | G1 |
| Operation Fluid Viscosity | 20CST (Below) |
| Working Pressure | 0.95Mpa |
| Max. Pressure Resistance | Air,Water, Oil:0.05 ~0.7 |
| Operating Temperature Range | -10~80°C |
| Voltage Range | ±10% |
| Protection Class/Insulation | IP65/F Class |
| Power Consumption | AC:4.5V/DC:3W |
| Material of Body | Aluminum alloy / Brass |
| Material of Oil Seal | NBR or VITON |
| Shortest Excitation Time | 0.05 |
| Prod Model: |
Solenoid Valve 2V025-08 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Certificate: |
ISO9001:2008 |
| Thread Standard: |
NPT, BSPT, Bsp |
| Export Markets: |
Global |
| Voltage: |
AC110V 220V DC12V 24V |
| Fluid: |
Air, Water, Gas, Oil |
| Fluid Pressure: |
0~0.7MPa |
| Port Size: |
1/8" , 1/4" |
| N/C Or N/O: |
Normally Closed |
| Lead Time: |
15-20 Days |
| Mark: |
Exe |
| Connection Form: |
Thread |
| Type: |
Direct Acting |
| Valve Structure: |
Pilot Membrane Structure |
| Power Supply: |
AC Solenoid Valve |
| Application: |
Household Usage |
| Material: |
Aluminum Alloy |
Ningbo Excellence Automatic Industrial Co., Ltd is a leading pneumatic products manufacturer in China. And our products covers solenoid valve, air source treatment unit, control element and executive element etc, which are widely used in industries such as machinery, textile, food, enviromental protection. Our company posesses all the production capability and capacity to produce from raw material up to the finished product under requirement of ISO9001: 2008 and CE.
This production capability, coupled with R&D incorporating new technologies and know-how, enables us to serve long lasting, reliable products which can expand to a wide range of diversity.
Our goal is supplying the best qualtiy and service through advanced technology to customers.
Welcome to Ningbo Excellence Automatic Industrial Co., Ltd!
