Exe 2-2 Way High Temperature Steam Solenoid Valve 2L170-15
| Price: |
US $ 20/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
50/Piece |
| Pay Type: |
L/C,T/T,D/P,Paypal,Western Union |

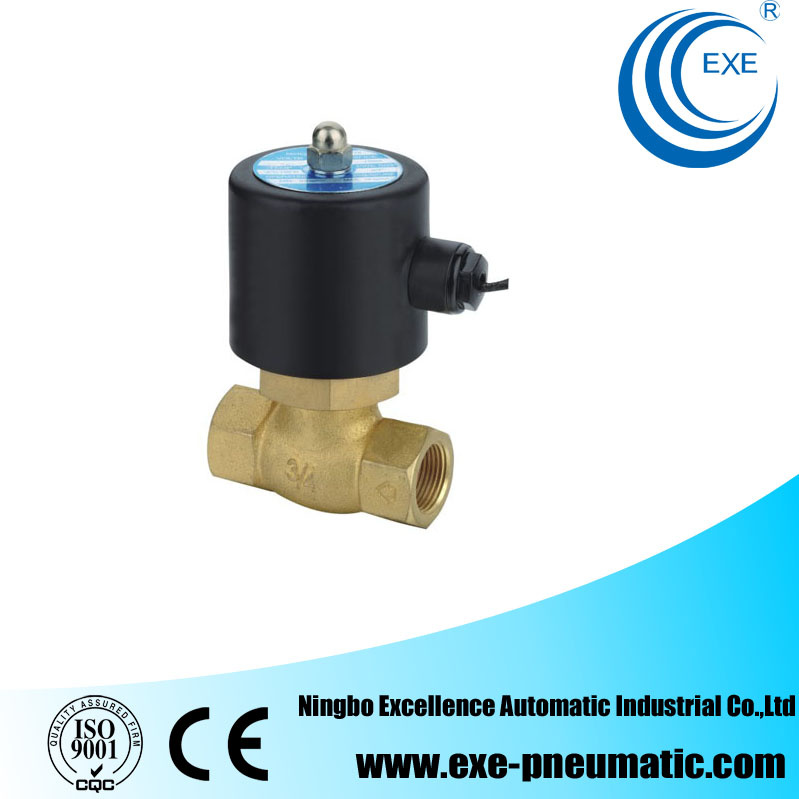

2L series pilot-operated steam solenoid valve, it is 2/2way. It is high temperature can up to -5~185° C, so mostly for steam medium, we also call it steam valve. It is designed correspondingly to support higher pressure of 1.5MPa, the orifice also will be bigger than normal valve for same thread size to make larger flow rate. It can change the coils to be as explosion-proof solenoid valve | Model | 2L170-10 | 2L170-15 | 2L170-20 | 2L200-25 | 2L300-35 | 2L300-40 | 2L500-50 |
| Working medium | Air, water, steam |
| Motion pattern | Guide type |
| Type | Nomarlly closed |
| Aperture of orifice(mm) | 17 | 20 |
30 |
50 |
| CV | 4.8 | 12 | 20 | 48 |
| Pipe size | 3/8" | 1/2" | 3/4" | 1" | 1-1/4" | 1-1/2" | 2" |
| Operation fluid viscosity | Below 20 CST |
| Working pressure(bar) | 1~15 |
| Max.pressure(bar) | 22.5 |
| Temperature range | -5~180 degrees centigrade |
| Voltage | DC12V, DC24V, AC24V, AC36V, AC110V, AC220V, AC380V |
| Voltage range | Plus or minus 10% |
| Material of valve | Brass |
| Material of seal | PT |
| Prod Model: |
Solenoid Valve 2L170-15 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Certificate: |
ISO9001:2008 |
| Thread Standard: |
NPT, BSPT, Bsp |
| Export Markets: |
Global |
| Voltage: |
AC110V 220V DC12V 24V |
| Fluid: |
Air, Water, Gas, Oil |
| Max.Pressure: |
22.5 Bar |
| Working Pressure(Bar): |
1~15 Bar |
| Port Size: |
1/2" ~ 2" |
| Lead Time: |
15-20 Days |
| Mark: |
Exe |
| Connection Form: |
Thread |
| Type: |
Direct Acting |
| Valve Structure: |
Direct-Acting Piston Structure |
| Application: |
Household Usage |
| Power Supply: |
AC/DC Solenoid Valve |
Ningbo Excellence Automatic Industrial Co., Ltd is a leading pneumatic products manufacturer in China. And our products covers solenoid valve, air source treatment unit, control element and executive element etc, which are widely used in industries such as machinery, textile, food, enviromental protection. Our company posesses all the production capability and capacity to produce from raw material up to the finished product under requirement of ISO9001: 2008 and CE.
This production capability, coupled with R&D incorporating new technologies and know-how, enables us to serve long lasting, reliable products which can expand to a wide range of diversity.
Our goal is supplying the best qualtiy and service through advanced technology to customers.
Welcome to Ningbo Excellence Automatic Industrial Co., Ltd!
