Product Description

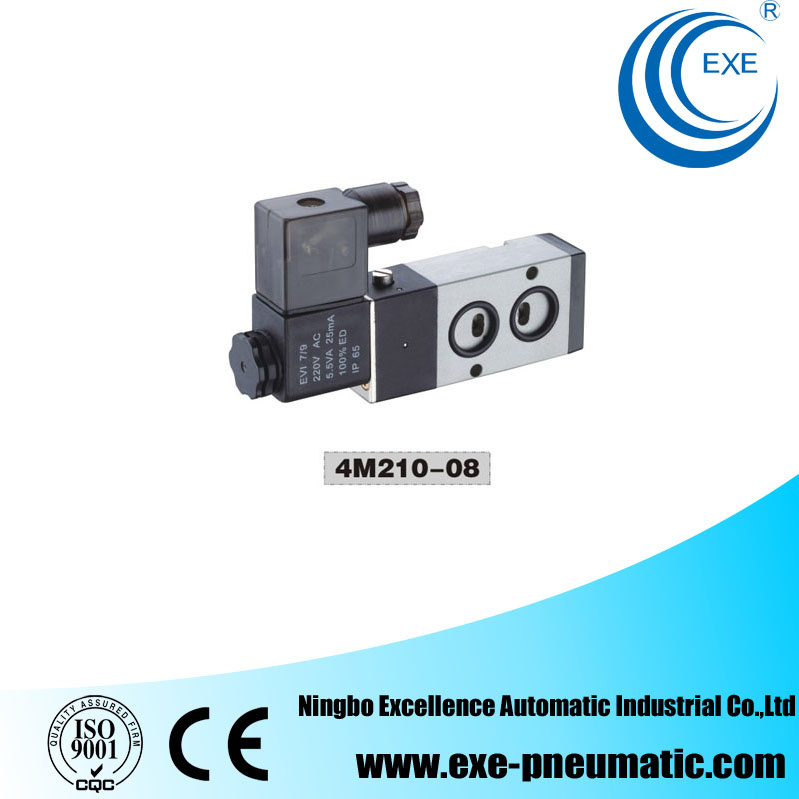

4M series Pneumatic solenoid valve, white connector and light
Model: 200 Series Solenoid Valve, Pneumatic Control Valve, slenoid Valve 4M210-08
Features
1. Internal guide type structure
2. In the hole with special process, friction resistance small, start low air pressure, long service life;
3. Don't come on lubrication
4. Side panels style installation, which can be directly and execute elements are connected to use
5. Set manual device, be helpful for installation
6. There are a variety of standard voltage grade could be selected
| Model | 4M210-08 |
|
| Media | Air |
| Action | Internally piloted |
| Type | 5port 2 position |
| Orifice Size | 16mm²(Cv=0.89) |
| Port Size | In=1/4" Exhaust=1/8" |
| Lubrication | Not required |
| Pressure Range | 1.5~8bar (21~114Psi) |
| Proof Pressure | 12bar (170Psi) |
| Temperature Range | -5~60°C(21~140°F) |
| Voltage Range | -15%~+10% |
| Power Consumption | AC:3.5VA DC:2.5W |
| Insulation | F class |
| Protection | IP65 (DIN40050) |
Ningbo Excellence Automatic Industrial Co., Ltd is a leading pneumatic products manufacturer in China. And our products covers solenoid valve, air source treatment unit, control element and executive element etc, which are widely used in industries such as machinery, textile, food, enviromental protection. Our company posesses all the production capability and capacity to produce from raw material up to the finished product under requirement of ISO9001: 2008 and CE.
This production capability, coupled with R&D incorporating new technologies and know-how, enables us to serve long lasting, reliable products which can expand to a wide range of diversity.
Our goal is supplying the best qualtiy and service through advanced technology to customers.
Welcome to Ningbo Excellence Automatic Industrial Co., Ltd!
