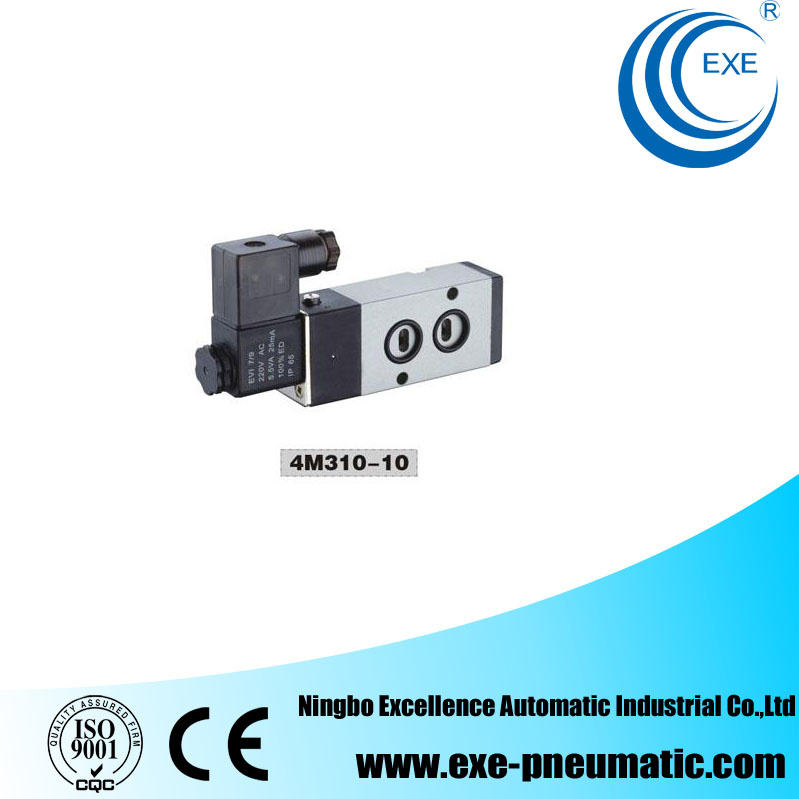

Exe Pneumatic Operated Valve/Solenoid Valve 4m310-10
| Price: |
US $ 3.5/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
50/Piece |
| Pay Type: |
L/C,T/T,D/P,Paypal,Western Union |
Product Description 1. Integral slot piston structure2. Process valve hole with special high precision finishing process3. Beautiful appearance4. Good reverser5. Reliable performance6. Seal wear can automatic compensate| Specification: |
| Model | 4M310-10 |
| Fluid | Air |
| Action | Internally Piloted Acting Type |
| Valve Type | 2/5 Way |
| Effective area (Square meters) | 30 square meters (CV=1.68) |
| Port Size | 3/8 |
| Lubrication | Not required |
| Operating Pressure | 0.15-0-8.0kgf/ Square meters |
| Proof Pressure | 1.2Mpa |
| Ambient & fluid temperature | -5~60 degree centigrade |
| Voltage range | -15%-+10% |
| Protection | IP65 |
| Connection | Lead Wire Type or terminal type |
| Max Frequency | 4 cycle /sec |
| Min. response time | 0.05 sec |
Main parts material Body
Seal | Aluminum Alloy |
| NBR |
| Prod Model: |
Pneumatic Operated Valve/Solenoid Valve 4M310-10 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Certificate: |
ISO9001:2008 CE, RoHS |
| Thread Standard: |
NPT, BSPT, Bsp |
| Export Markets: |
Global |
| Voltage: |
AC110V 220V DC12V 24V |
| Fluid: |
Air, Water, Gas, Oil |
| Function: |
Change The Flow Direction |
| Thread: |
1/8,1/4,3/8 |
| Way: |
5 Way 2 Position |
| Lead Time: |
15-20 Days |
| Guarantee: |
One Year |
| Connection Form: |
Thread |
| Type: |
Pilot Operated |
| Valve Structure: |
Pilot Membrane Structure |
| Application: |
Household Usage |
| Power Supply: |
AC/DC |
Ningbo Excellence Automatic Industrial Co., Ltd is a leading pneumatic products manufacturer in China. And our products covers solenoid valve, air source treatment unit, control element and executive element etc, which are widely used in industries such as machinery, textile, food, enviromental protection. Our company posesses all the production capability and capacity to produce from raw material up to the finished product under requirement of ISO9001: 2008 and CE.
This production capability, coupled with R&D incorporating new technologies and know-how, enables us to serve long lasting, reliable products which can expand to a wide range of diversity.
Our goal is supplying the best qualtiy and service through advanced technology to customers.
Welcome to Ningbo Excellence Automatic Industrial Co., Ltd!
