Exe PU Series Brass 2/2 Way Flow Control Solenoid Valve PU220-06
| Price: |
US $ 4.0/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
50/Piece |
| Pay Type: |
L/C,T/T,D/P,Paypal,Western Union |
PU220 Series Solenoid valve are direct action type two position two way solenoid valves. It adopts the diaphragm seal structure, with zero differential pressure staring function. Handsome shape and large flow. It is a switch element most normally used in modern industrial pipeline. 1. Fluid applied: Air, Water, Oil, Gas2. Action model: 220 Direct Drive Type/225 Guid type3. Style: NC style4. Adapter Diameter: 1/8", 1/4", 3/8, ", 1/2", 3/4", 1", 1 1/4", 1 1/2", 2"5). Working pressure: Water: 0~0.7Mpa6. Max pressure: 1.05 Mpa7. Operating Temperature: -5~+808. Body Material: Brass | Model | PU220-02 | PU220-04 | PU220-06 | PU220-08 |
| Fluid | Air, Water, Oil |
| Operation | 220: Direct Drive Type 225: Guid Type |
| Type | Normal close type |
| Aperture of fl ow rate(mm) | 2.3 | 13 | 20 | 25 |
| Cv value | 0.18 | 4.00 | 8.60 | 11.00 |
| Joint pipe bore | G1/4″ | G1/2'' | G3/4'' | G1'' |
| Operation fl uid viscosity | 50 CST Below |
| Operating pressure | 0 ~ 0.7MPa |
| Max. Proof pressure | 1.05MPa |
| Operating temperature | -5 ~ +80°C |
| Prod Model: |

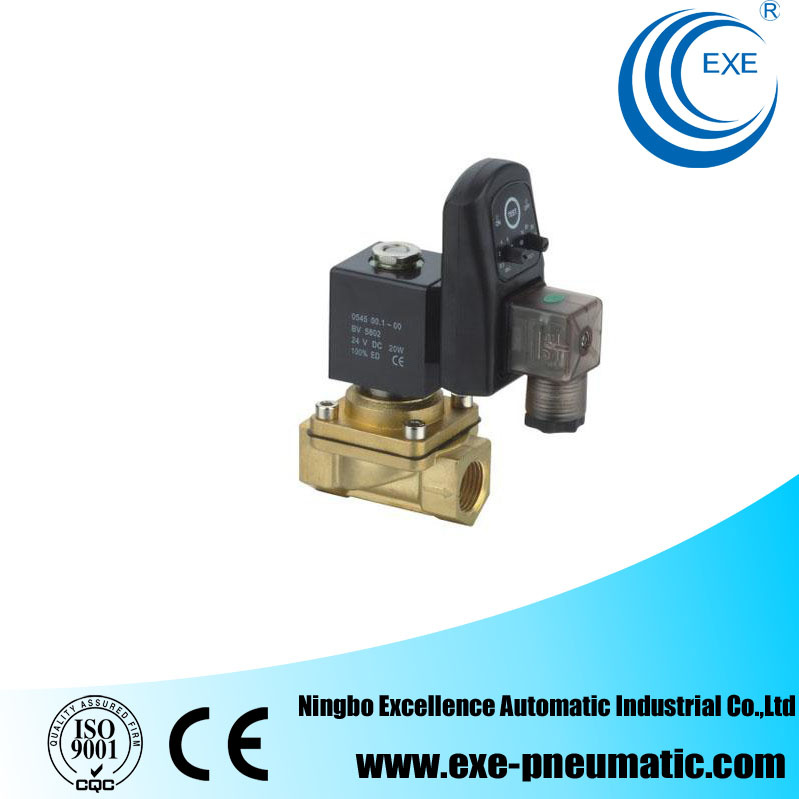

Solenoid Valve PU220-06 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Certificate: |
ISO9001:2008 |
| Thread Standard: |
NPT, BSPT, Bsp |
| Export Markets: |
Global |
| Voltage: |
AC110V 220V DC12V 24V |
| Fluid: |
Air, Water, Gas, Oil |
| Operating Pressure: |
0~0.7MPa |
| Max. Test Pressure: |
1.05MPa |
| Port Size: |
1/8",1/4",3/8",1/2",3/4",1" |
| Lead Time: |
15-20 Days |
| Mark: |
Exe |
| Connection Form: |
Thread |
| Type: |
Direct Acting |
| Valve Structure: |
Direct-Acting Piston Structure |
| Application: |
Household Usage |
| Power Supply: |
AC/DC Solenoid Valve |

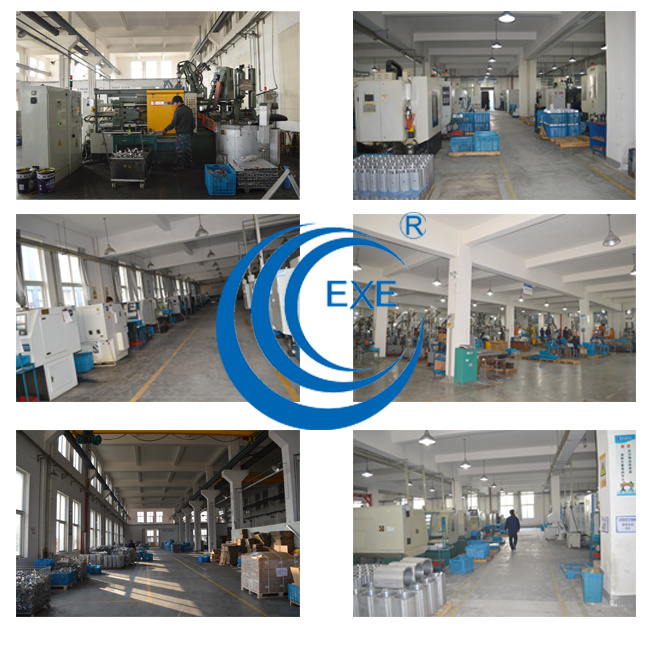

Ningbo Excellence Automatic Industrial Co., Ltd is a leading pneumatic products manufacturer in China. And our products covers solenoid valve, air source treatment unit, control element and executive element etc, which are widely used in industries such as machinery, textile, food, enviromental protection. Our company posesses all the production capability and capacity to produce from raw material up to the finished product under requirement of ISO9001: 2008 and CE.
This production capability, coupled with R&D incorporating new technologies and know-how, enables us to serve long lasting, reliable products which can expand to a wide range of diversity.
Our goal is supplying the best qualtiy and service through advanced technology to customers.
Welcome to Ningbo Excellence Automatic Industrial Co., Ltd!
