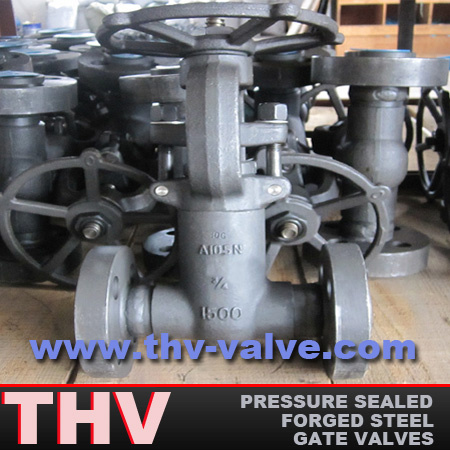

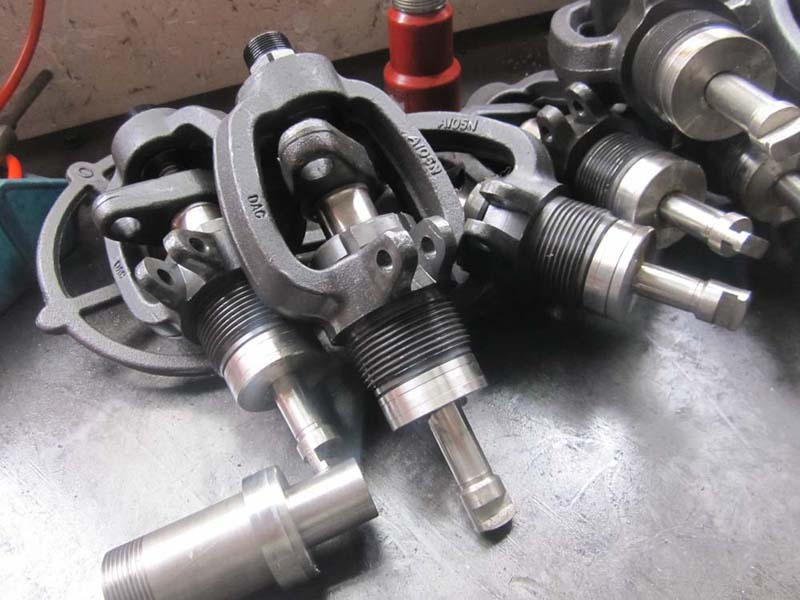

THV forged pressure sealed gate valve is available in flanged end and welded end. Designed feature of structure is a threaded and pressure seal bonnet.
Standards:Design Standard: API 602 / ASME B16.34 / BS5352
Testing Standard: API 598
Face to face according to ASME B16.10
Connection Standards:
SW according to ANSI / ASME B16.11
Flange according to ANSI / ASME B16.5
Butt-welded according to ANSI / ANSI B16.5
Marking MSS SP25
Pressure Class: From Class 150 to Class 2500
Size from 1/2" to 3"
Main Materials: A105; LF2; F5; F11; F22; 304L; 316L; F347; F321; F51; Monel; 20 alloy, etc.
THV has been satisfying the needs of petroleum refineries, chemical processing plants, power generating plants and other processing facilities throughout the world. Please send your e-mail or leave your messages to our SKYPE or MSN for further technical support.
|
NO. |
Part Name |
CS to ASTM |
AS to ASTM |
SS to ASTM |
|
Type A105 |
Type F22 |
Type F304(L) |
Type F316(L) |
|
1 |
Body |
A105 |
A182 F22 |
A182 F304(L) |
A182 F316(L) |
|
2 |
Seat |
A276 420 |
A276 304 |
A276 304(L) |
A276 316(L) |
|
3 |
Wedge |
A276 410 & 430 |
a182 F304 |
A182 F304(L) |
A182 F316(L) |
|
4 |
Stem |
A182 F6 |
A182 F304 |
A182 F304(L) |
A182 F316(L) |
|
5 |
Pressure Seat |
A105 |
A182 F304 |
A182 F304(L) |
F316(L) |
|
6 |
Pressure Ring |
A276 304L |
A276 316L |
|
7 |
Bonnet |
A105 |
A182 F22 |
A182 F304(L) |
A182 F316(L) |
|
8 |
Gland Eyebolt |
A193 B7 |
A193 B16 |
A193 B8 |
A193 B8M |
|
9 |
Pin |
A276 420 |
A182 F304 |
|
10 |
Stem Packing |
Flexible Graphite |
PTFE |
|
11 |
P.S.Lock Nut |
A194 2H |
A194 4 |
A194 8 |
A194 8M |
|
12 |
Gland |
A276 F420 |
A182 F304 |
|
13 |
Gland Flange |
A216 WCB |
A351 CF8 |
|
14 |
Nut |
A194 2H |
A194 4 |
A194 8 |
A194 8M |
|
15 |
Yoke Nut |
A276-410 |
|
16 |
Retaining Nut |
A194 2H |
A194 4 |
A194 8 |
A194 8M |
|
17 |
Handwheel |
A197 |
|
18 |
H.W.Lock Nut |
A194 2H |
A194 4 |
A194 8 |
A194 8M |
|
19 |
Oil Cup |
Brass |
|
Suitable Medium |
W.O.G.etc |
W.O.G.etc |
HNO3,CH3OOH etc |
|
Suitable Temperature |
-29 425 |
-29 550 |
-29 180 |
