Home Valve Products Flow Sharing Control Valve for Excavator 8hdcv, Can Replace Japan Kyb Kvse-72-10 Valve
Flow Sharing Control Valve for Excavator 8hdcv, Can Replace Japan Kyb Kvse-72-10 Valve
Price: |
US $ 1000/Piece |
Trade Terms: |
FOB,CIF |
Min Order: |
1/Piece |
Pay Type: |
L/C,T/T,Western Union |
Flow Sharing Control Valve Excavator control valve,can replace KYB valve
Application
This valve group is extensively applied to small excavators. it's can replace With reliable performance, it can provide hydraulic energy distribution to all actions of a small excavator and realize joint operation and speed control on single and several actions. using for SWE50(SUNWARD
),SY60(SANY),FR60(FOTON),KY60(KYM) excavators.
Functions and features
1. The valve group works with a three-pump full power control variable system to completely utilize the engine power.
2. The valve group enjoys functions like straight running, swing arm locking, swing arm priority and confluence, auxiliary circuit confluence and bucket arm flow regeneration and can properly utilize flow and improve the performance of the complete machine.
3. The valve group boasts holding functions like swing arm fluctuation, stick shaker swing, bucket dredging, bulldozing on flat ground, local rotation, left and right roundabout, straight walking, hoisting and vibration & crushing.
Basic parameters
1. Rated working pressure: 35MPa;
2. Flow and amount at oil inlet: 70L/min× 3;
3. Control mode: External (electro) hydraulic proportional control; Hydraulic control pressure 0.6~3.0MPa;
4. Mode of control on the movement of actuating mechanism: Direction; Stepless speed regulation; Micro motion; And combined movement of several actuating mechanisms;
5. Internal relief requirement: Swing arm B port 3ml/min; Other <2~12ml/min (7.0MPa).8HDCV35/3 dimensions

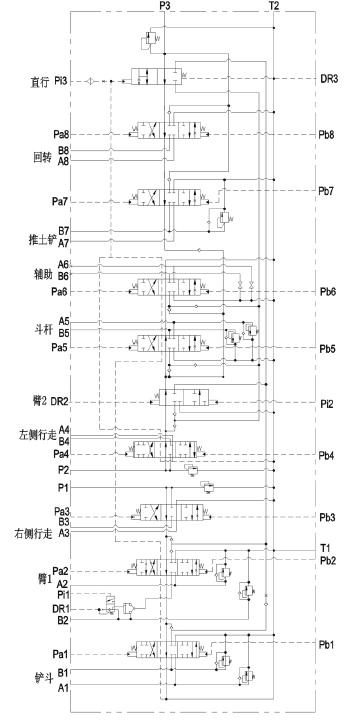

8HDCV35/3 symbols
Prod Model: |
8HDCV35/3X70 excavator control valve |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Type: |
Hydraulic Control Unit |
Ningbo Yuzhou Hydraulic was founded in 1995, specialized in mobile hydraulic valves and motors, Including hydraulic motors, flow sharing control valve, slewing cushion valve, balance valve, proportional valve, cartridge valve, relief valve, check valve etc, which are widely used in concrete pump machinery, excavators, mobile cranes, forklift, hydraulic winches, drilling equipment, garbage trucks, agricultural/forestry machines, Aerial Work Platforms etc
50000 + M² Factory area,
30+ Senior experts and engineers R&D team
20+ Quality control
60+National Patent and 30 innovation patent
200+ Staff
In 2005 established "Yuzhou hydraulic valves Engineering Center", has more than 30 Senior experts and engineers R&D team, Has developed 7 series of more than 300 kinds of products, and got 60 national patent which 30 innovation patent.
Yuzhou cooperated partner including XCMG, SANY, Zoomlion, LIUGONG, Manitowoc, TEREX, etc.
Yuzhou not only manufacturing for you, but also can design the hydraulic valves or hydraulic system according your demand.
