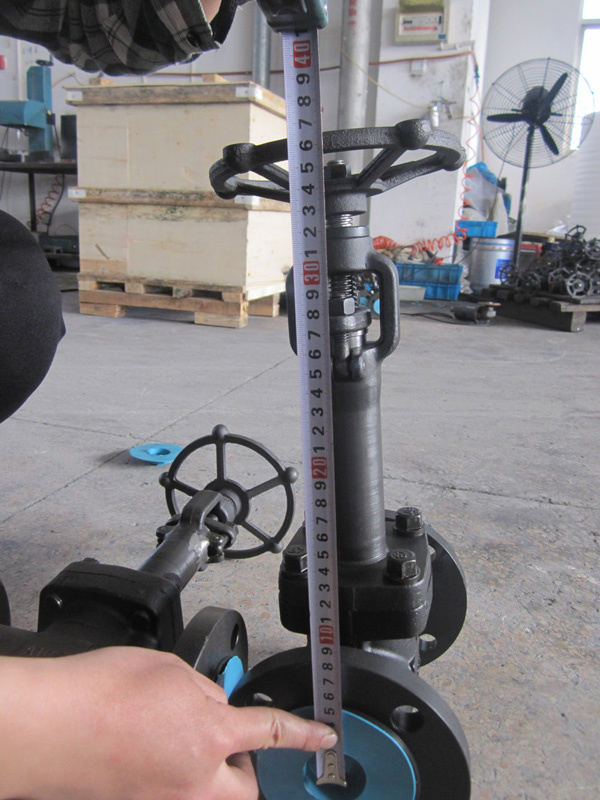

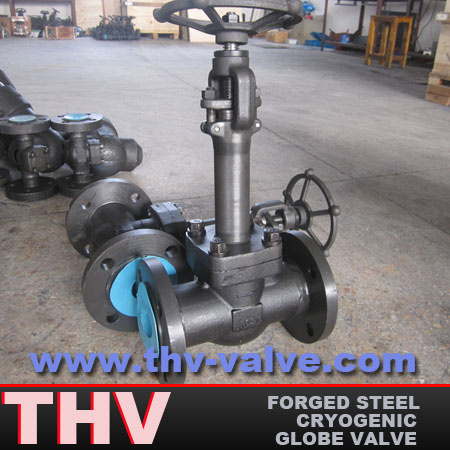

Forged Steel Long Stem Cryogenic Globe Valve
| Price: |
US $ 115-120/Piece |
| Trade Terms: |
FOB,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T |
A cryogenic valve is used on extremely cold services like liquid nitrogen at -320°F. When you have super cold processes going through a valve, the body of the valve becomes very cold , and can freeze things around the valve. So, if an actuator is too close to a valve body, it can freeze the internals of the actuator and cause it to malfunction. Therefore, we have to add an extended bonnet to the valve. This moves the packing gland in the valve and the actuator further away from the cold process so the valve can work properly.
Features:
Reduced or full port.

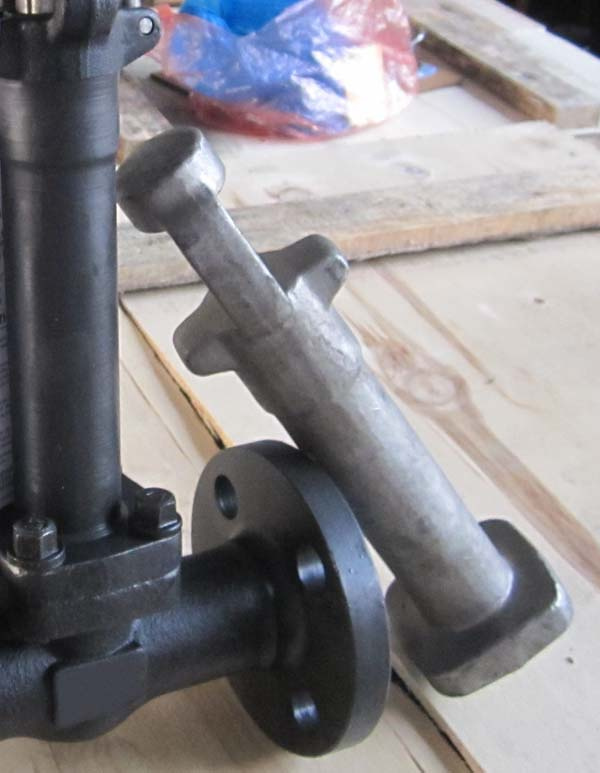

Outside screw and yoke, long bonnet design.
Spiral wounded gasket.
Integral flanged or welded flanged end.

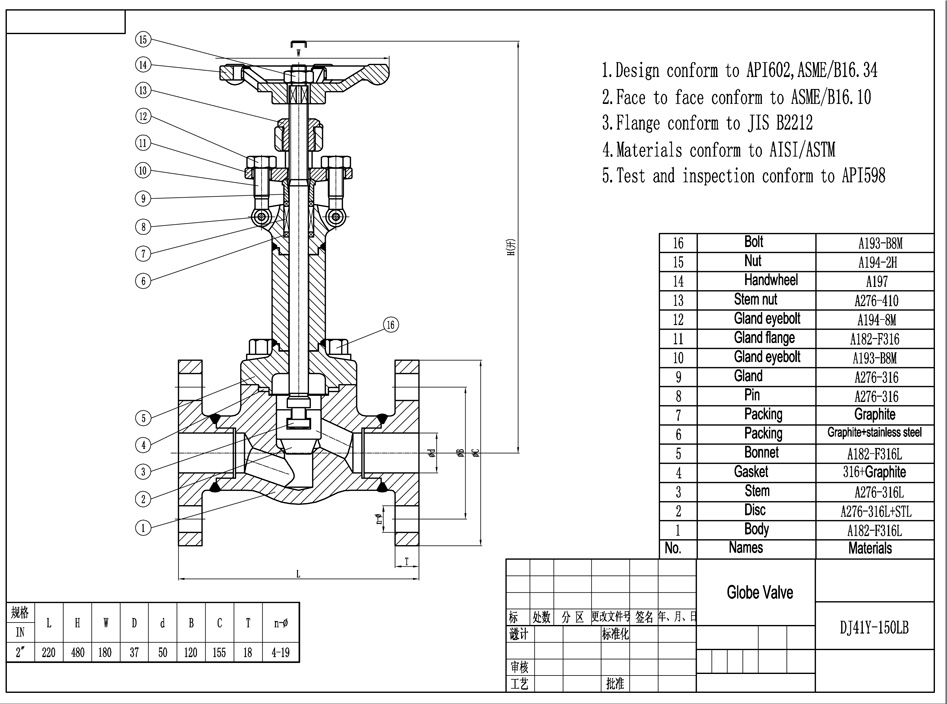

Specifications:
Design conform to API 602 & ANSI 16.34
Flanged end conform to ANSI B 16.5
Test and inspection conform to API 598
Materials range for cryogenic globe: F304 (L), F316 (L), LF2
NO.
|
Part Name
|
AS to ASTM
|
SS to ASTM
|
Type A350 LF2
|
Type A350 LF3
|
Type A182 F304
|
Type A182 F316(L)
|
1
|
Body
|
A350 LF2
|
A350 LF3
|
A182 F304(L)
|
A182 F316(L)
|
2
|
Disc
|
A276 410
|
A276 304(L)
|
A276 304(L)
|
A276 316(L)
|
3
|
Bonnet
|
A350 LF2
|
A350 LF3
|
A182 F304(L)
|
A182 F316(L)
|
4
|
Gasket
|
Corrugated SS + graphite
|
SS + PTFE
|
5
|
Bold Nut
|
A193 B7
|
A193 B7
|
A193 B8
|
A193 B8M
|
6
|
Stem
|
A182 F6
|
A182 F6
|
A182 F304(L)
|
A182 F316(L)
|
7
|
Stem Packing
|
Flexible graphite
|
PTFE
|
8
|
Gland
|
A276 420
|
A182 F304
|
9
|
Pin
|
A276 420
|
A182 F304
|
10
|
Gland Eyebolt
|
A193 B7
|
A193 B16
|
A193 B8
|
A193 B8M
|
11
|
Gland Flange
|
A216 WCB
|
A351 CF8
|
12
|
Gland Nut
|
A194 2H
|
A194 4
|
A194 8
|
A194 8M
|
13
|
Yoke Nut
|
A276 410
|
14
|
Handwheel
|
A197
|
15
|
Nameplate
|
SS
|
16
|
H.W.Nut
|
A194 2H
|
A194 4
|
A194 8
|
A194 8M
|
Suitable Temperature
|
40
|
101
|
196
|
| Prod Model: |
THESFSCJ41H |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Feature: |
Long Stem |
| Structure: |
Through Way Globe Valve |
| Stem Thread Position: |
Outside Screw Stem Globe Valve |
| Sealing Form: |
Gland Packings Globe Valve |
| Standard: |
JIS |
| Application: |
Forged Steel Globe Valve |
