CV2 Hydraulic cartridge valve Check Valve one way valve
OPERATION
Pressure at 1 overcomes the spring-bias ball and allows free flow to 2.
Flow in the opposite direction, from 2 to 1, is blocked by the ball.
SPECIFICATIONS
Operating pressure : 250 Bar
Flow :See PRESSURE DROP VS. FLOW graph..
Internal Leakage:3 drops/min. max.. at 250 Bar
Temprature: -30 to +120 degree C
Recommended Filtration:Critical Application-ISO 16/12
Non-Critical Application-ISO 19/15
Fluids :Mineral-based fluids.
For other fluid compatibility, consult factory.

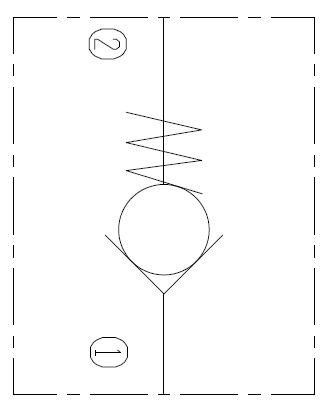

CV2 function

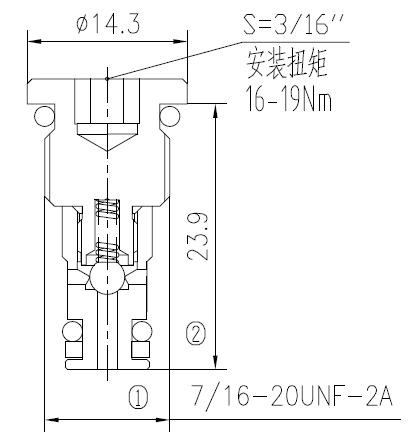

CV2 dimension

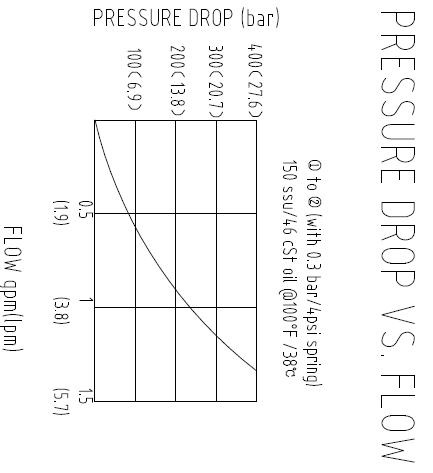

CV2 flow
