CV1 Check Valve
OPERATION
Pressure at 1 overcomes the spring-bisa ball and allows free flow 1to 2.
Flow in the opposite direction ,from 2 to 1,is blocked by the ball.
SPECIFICATIONGS
Operating Pressure:250bar
Flow:See PRESSURE DROP VS.FLOW graph.
Internal Leakage:3 drops/min.max.at 250 Bar
Crack Pressures:
0.2=0.2Bar
1.0=1.0Bar
2.1=2.1Bar
3.4=3.4Bar
4.8=4.8Bar
Temprature:-30 to +120 degree C
Recommended Filtration: Critical Application ISO 19/15
Fluids:Mineral-based fluids.
For other fluid compatibility,consult factory.

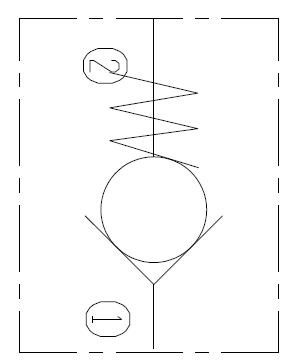

CV1 function

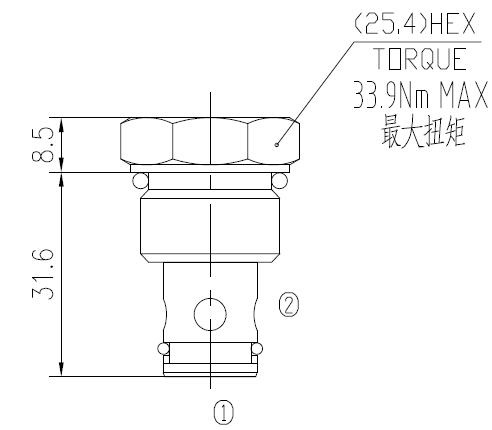

CV1 dimension

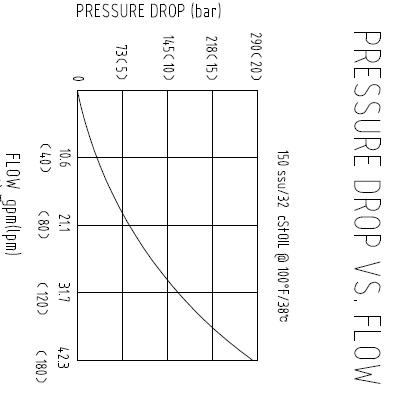

CV1 flow
