CV3 Check Valve
OPERATION
Pressure at 1 overcomes the spring-bias ball and allows free flow to 2.
Flow in the opposite direction, from 1 to 2 ,is blocked by the ball.
SPECIFICATIONS
Max. Operating Pressure:250Bar
Flow:See PRESSURE DROP VS. FLOW graph.
Internal Leakage:3drops,min. max. At 250 Bar
Crack Presssure:
0.3=0.3Bar
0.7=0.7Bar
2.1=2.1Bar
6.9=6.9Bar
Temperature:-30 to + 120 degree C
Recommended Filtration:Critical Application - ISO 16/12
Non-Critical Application - ISO 19/15
Fluids:Mineral-based fluids.
For other fluid compatibility consult factory.
CV3 function

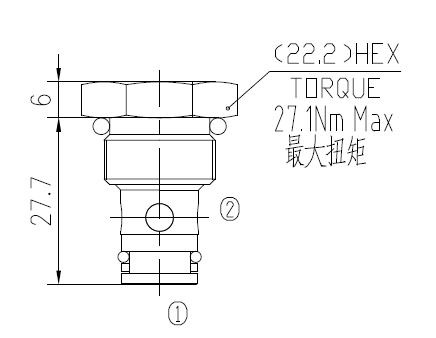

CV3 dimension
CV3 flow
