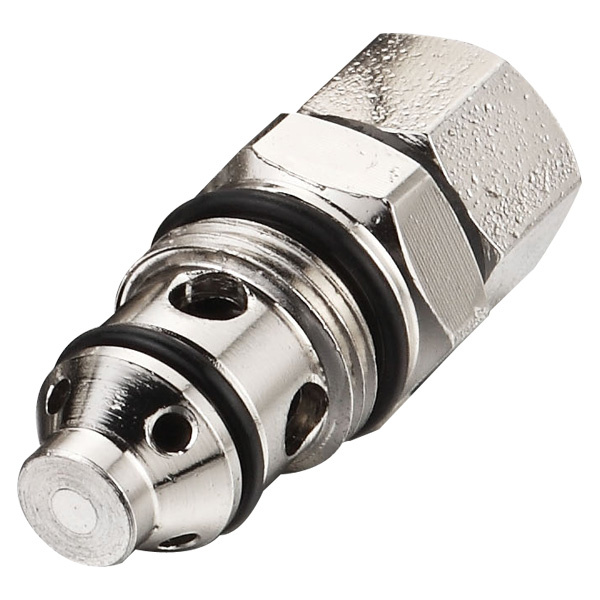

Direct-acting Relief Valve DRV1
OPERATION
The valve prevents flow from 1 to 2 until the set crack pressure at protecting the circuit from over pressurization.
SPECIFICATIONS
Operating pressure:350Bar
Flow:See PRESSURE DROP VS. FLOW graph.
Internal leakage:5 drops/min. MAX.to 80% of norminal setting
Reseat Pressure:Nominal 80% of crack pressure
[crack(set) pressure at 095lpm/0.25gpm]
Spring Ranges:
20 TO 125BAR;PRESET:69BAR
40 TO 180BAR;PRESET:138BAR
180 TO 350BAR;PRESET:207BAR
Temperature:-30 to + 120 degree C
Filtration:ISO 19/15
Fluids:Mineral-based fluids.

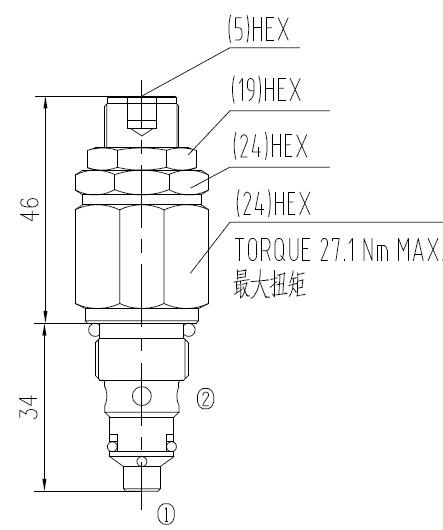

DRV1 Dimensions
DRV1 Symbols
