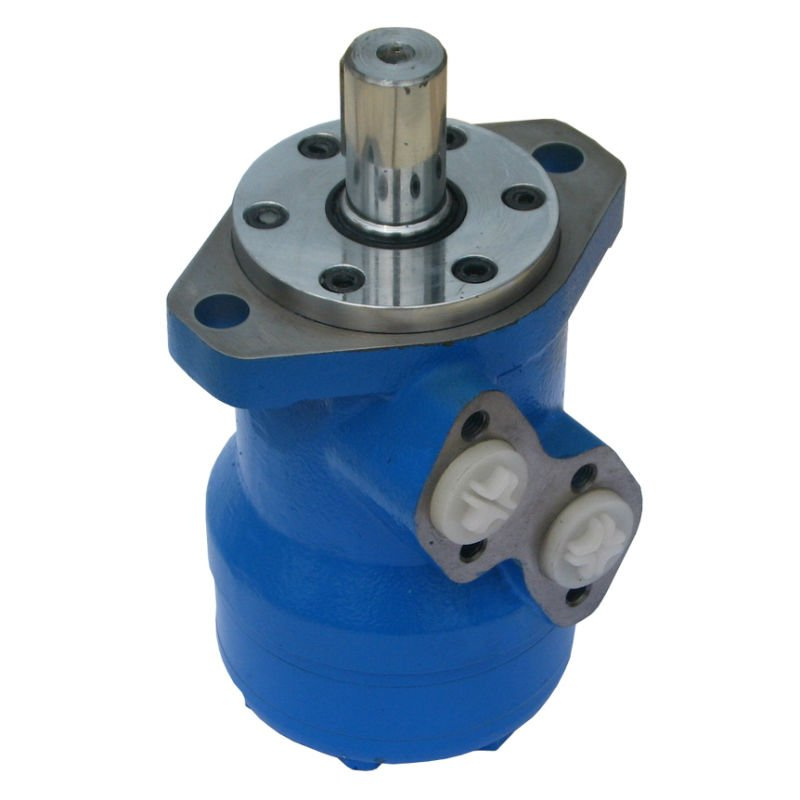

OMP Orbit Hydraulic Motor With Spool Valve
This series of motor are small volume,economical type,which is designed with Spool Valve,which adapt the gerotor gear set design and provide compact volume,high power and low weight.
CHARACTERISTICS
1 Advanced manufacturing devices for the Gerotor gear set, which provide small volume, high efficiency and long life.
2 Shaft seal can bear high pressure of motor of which can be used in parallel or in series.
3 Advanced construction design,high power and low weight.
1. This series of motor are small volume, economical type, which is designed with Spool Valve, which adapt the gerotor gear set design and provide compact volume, high power and low weight.
2. Advanced manufacturing devices for the Gerotor gear set, which provide small volume, high efficiency and long life.
3. Shaft seal can bear high pressure of motor of which can be used in parallel or in series.
4. Advanced construction design, high power and low weight.
5. Can replace Danfoss "OMP" series and Charlynn "H" series, and also can substitute for White, Parker.
TYPE | OMP-50 | OMP-80 | OMP-100 | OMP-125 | OMP-160 | OMP-200 | OMP-250 | OMP-315 | OMP-400 |
Displacement (ml/r) | 52.9 | 79.3 | 98.2 | 120.9 | 158.7 | 196.4 | 241.8 | 317.3 | 392.9 |
Max. | cont. | 14 | 14 | 14 | 14 | 14 | 14 | 11 | 9 | 7 |
Pressure. | int. | 17.5 | 17.5 | 17.5 | 17.5 | 17.5 | 17.5 | 14 | 11 | 9 |
Drop (Mpa) | peak. | 20 | 20 | 20 | 20 | 20 | 20 | 16 | 13 | 11 |
Max.torque (N.m) | cont. | 89 | 150 | 191 | 235 | 307 | 365 | 378 | 378 | 378 |
int. | 110 | 185 | 231 | 292 | 376 | 440 | 465 | 465 | 465 |
peak. | 130 | 215 | 268 | 336 | 430 | 506 | 537 | 537 | 537 |
Speed.Range( r/min) | 10-800 | 10-770 | 9-615 | 9-480 | 8-385 | 7-310 | 5-250 | 5-195 | 5-155 |
Max.Flow(cont.)( L/min) | 40 | 60 | 60 | 60 | 60 | 60 | 60 | 60 | 60 |
Max.Output.Power(cont. )(Kw) | 7 | 10 | 10 | 10 | 10 | 8 | 6 | 5 | 4 |
Weight (kg) | 5.6 | 5.7 | 5.9 | 6 | 6.2 | 6.4 | 6.6 | 6.9 | 7.4 |
L | 141 | 145 | 147 | 150 | 155 | 160 | 166 | 176 | 186 |
L1 | 147 | 151 | 153 | 156 | 161 | 166 | 172 | 182 | 192 |
B | 7 | 11 | 13 | 16 | 21 | 26 | 32 | 42 | 52 |
Ningbo Yuzhou Hydraulic was founded in 1995, specialized in mobile hydraulic valves and motors, Including hydraulic motors, flow sharing control valve, slewing cushion valve, balance valve, proportional valve, cartridge valve, relief valve, check valve etc, which are widely used in concrete pump machinery, excavators, mobile cranes, forklift, hydraulic winches, drilling equipment, garbage trucks, agricultural/forestry machines, Aerial Work Platforms etc
50000 + M² Factory area,
30+ Senior experts and engineers R&D team
20+ Quality control
60+National Patent and 30 innovation patent
200+ Staff
In 2005 established "Yuzhou hydraulic valves Engineering Center", has more than 30 Senior experts and engineers R&D team, Has developed 7 series of more than 300 kinds of products, and got 60 national patent which 30 innovation patent.
Yuzhou cooperated partner including XCMG, SANY, Zoomlion, LIUGONG, Manitowoc, TEREX, etc.
Yuzhou not only manufacturing for you, but also can design the hydraulic valves or hydraulic system according your demand.
