hydraulic wheel motor . Hydraulic Motor ( wheel motor) is widely applied in agriculture, forestry, plastics, machines tools, mining machines, ect.This type of motor can substitute for Danfoss type, Eaton type, M+S type.
Intermittent operation the permissible values may occur for max. 10% of every minute
Peak load: the permissble values may occur for max. 1% of every minute

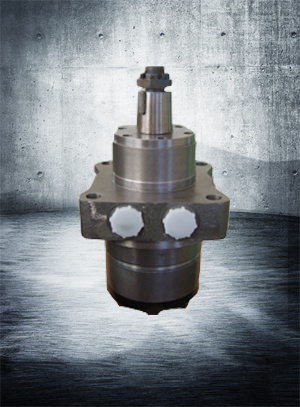

BMRW Orbit Hydraulic Motor With Spool Valve
This series of motor,with its shell made of ductile cast iron of adequate intensity, can be applied to situations with less load and interval operation, widely to agriculture, forestry, plastics, machine tools and min machines, such as the mould height adjustment of the injection molding machine, the cleaner, the saw the
CHARACTERISTICS
1 The output shaft, with the deep groove ball bearing, can bear certain axial force and radial force.
2 With the axial oil distribution structur, it is of smaller size and less weight.
3 With two inner check valves, no drain connection.
4 With cycoid group with the roller, it has a small friction nd high mechanical efficiency.
| TYPE | BMRW-50 | BMRW-80 | BMRW-100 | BMRW-125 | BMRW-160 | BMRW-200 | BMRW-250 | BMRW-315 | BMRW-400 |
| Displacement (ml/r) | 51.7 | 80.5 | 100.5 | 126.3 | 160.8 | 200.9 | 252.6 | 321.5 | 401.9 |
| Max. | cont. | 14 | 14 | 14 | 14 | 14 | 14 | 11 | 9 | 7 |
| Pressure. | int. | 17.5 | 17.5 | 17.5 | 17.5 | 17.5 | 17.5 | 14 | 11 | 9 |
| Drop (Mpa) | peak. | 20 | 20 | 20 | 20 | 20 | 20 | 16 | 13 | 11 |
| Max.torque (N.m) | cont. | 93 | 152 | 194 | 237 | 310 | 369 | 380 | 380 | 380 |
| int. | 118 | 189 | 236 | 296 | 378 | 450 | 470 | 470 | 470 |
| peak. | 135 | 216 | 270 | 338 | 433 | 509 | 540 | 540 | 540 |
| Speed.Range(cont.) (r/min) | 10-775 | 10-750 | 10-600 | 9-475 | 7-375 | 5-300 | 5-240 | 5-190 | 5-160 |
| Max.Flow(cont.) (L/min) | 40 | 60 | 60 | 60 | 60 | 60 | 60 | 60 | 60 |
| Max.Output.Power(cont.) (Kw) | 7 | 10 | 10 | 10 | 10 | 8 | 6 | 5 | 4 |
| Weight (kg) | 6.5 | 6.9 | 7 | 7.3 | 7.5 | 8 | 8.5 | 9 | 11 |
| L | 108 | 113 | 117 | 121 | 127 | 134 | 143 | 155 | 169 |
| B | 9 | 14 | 17.5 | 22 | 28 | 35 | 44 | 56 | 70 |
Ningbo Yuzhou Hydraulic was founded in 1995, specialized in mobile hydraulic valves and motors, Including hydraulic motors, flow sharing control valve, slewing cushion valve, balance valve, proportional valve, cartridge valve, relief valve, check valve etc, which are widely used in concrete pump machinery, excavators, mobile cranes, forklift, hydraulic winches, drilling equipment, garbage trucks, agricultural/forestry machines, Aerial Work Platforms etc
50000 + M² Factory area,
30+ Senior experts and engineers R&D team
20+ Quality control
60+National Patent and 30 innovation patent
200+ Staff
In 2005 established "Yuzhou hydraulic valves Engineering Center", has more than 30 Senior experts and engineers R&D team, Has developed 7 series of more than 300 kinds of products, and got 60 national patent which 30 innovation patent.
Yuzhou cooperated partner including XCMG, SANY, Zoomlion, LIUGONG, Manitowoc, TEREX, etc.
Yuzhou not only manufacturing for you, but also can design the hydraulic valves or hydraulic system according your demand.
