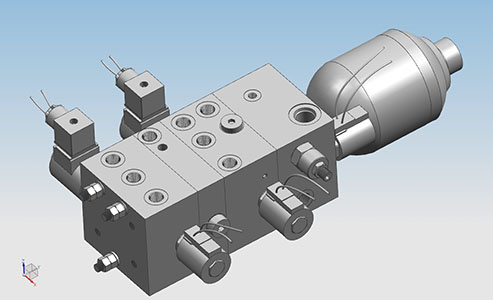

KZFZ Series Pilot Control Combination Valve
Application
This product is applicable to hydraulic pilot control circuits of construction machinery, mining machinery, municipal machinery, material handling machinery which is adopting proportional pilot control.
Functions and features
1. The plate-type overlying valve body structure and the thread cartridge solenoid directional valve contribute to a compact structure and easy maintenance;
2. It can precisely supply the system with required control oil source;
3. The adoption of several solenoid valves can realize the switching on/off of pilot control oil;
4. The combination of valve and pressure sensor can conduct safe production in the direction of dangerous actions;
5. All solenoid valves are normally open at neutral position. When power is lost, it can unload the oil source and prevent misoperation.
Basic parameters
1. Rated pressure: 3.5MPa
2. Rated flow: 18L/min
3. Output pressure of pilot oil: 3.5MPa
4. Filtration precision: 10μ
5. Working voltage of solenoid valve: 24V
6. Setting pressure of check valve: 3.2MPa.

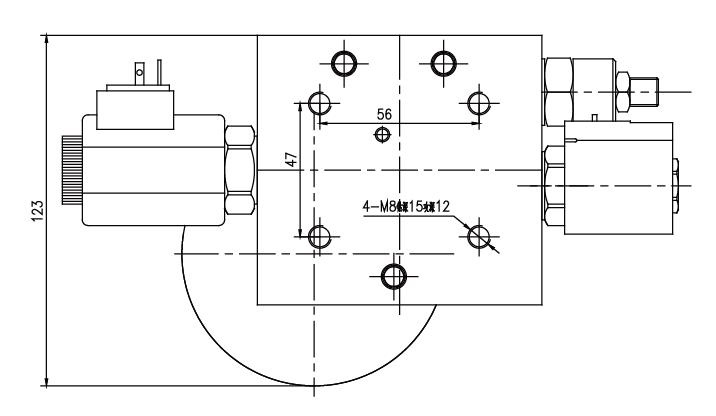

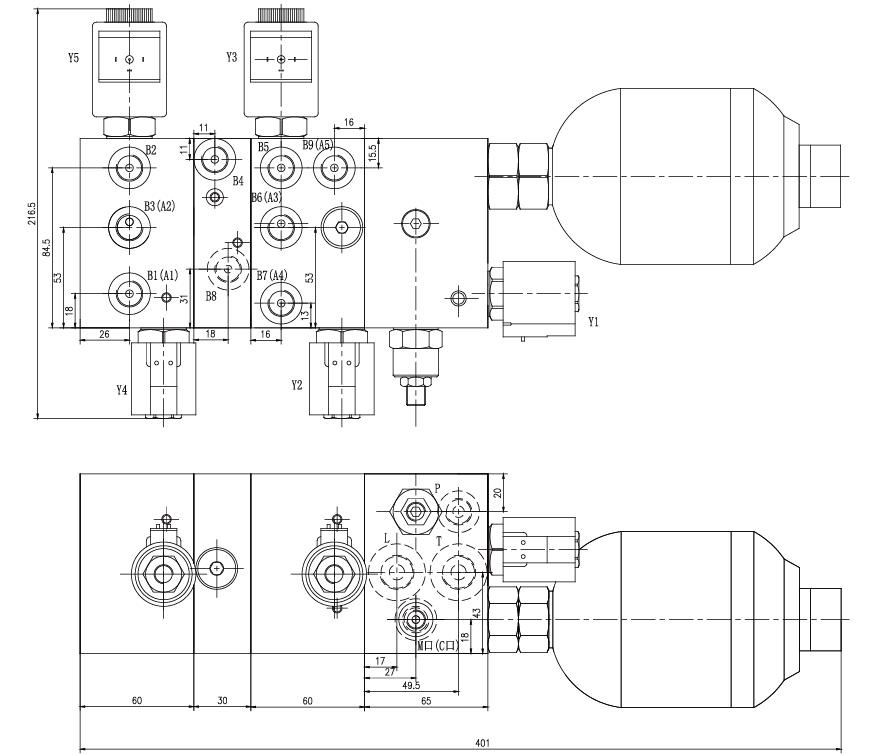

KZFZ outline drawing

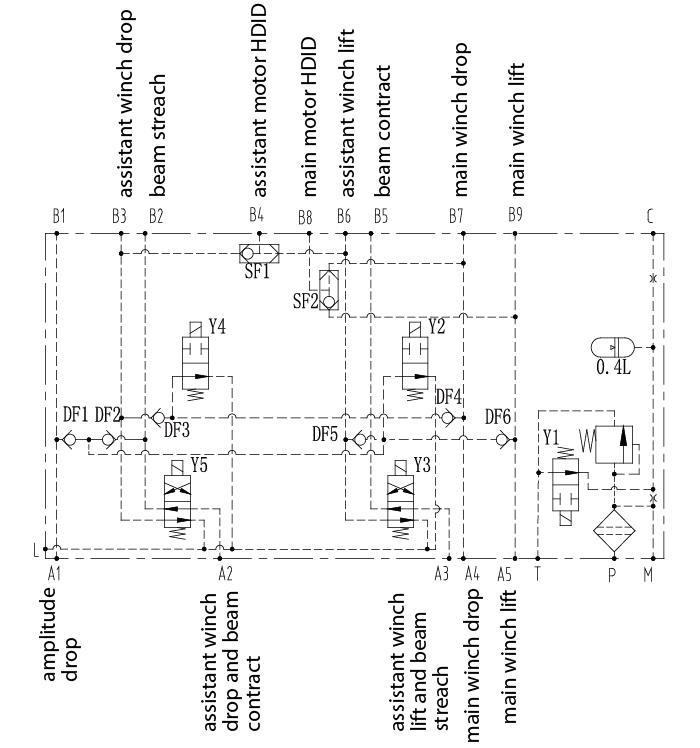

KZFZ function
