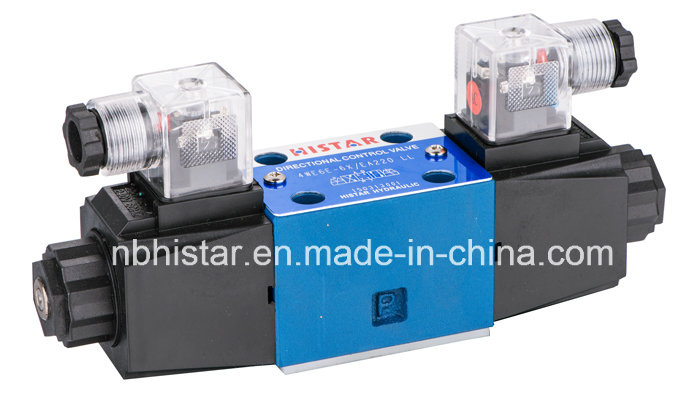

4WE series directional control valve are solenoid operated directional spool valves, these valves are used to the start, stop and direct oil flow.

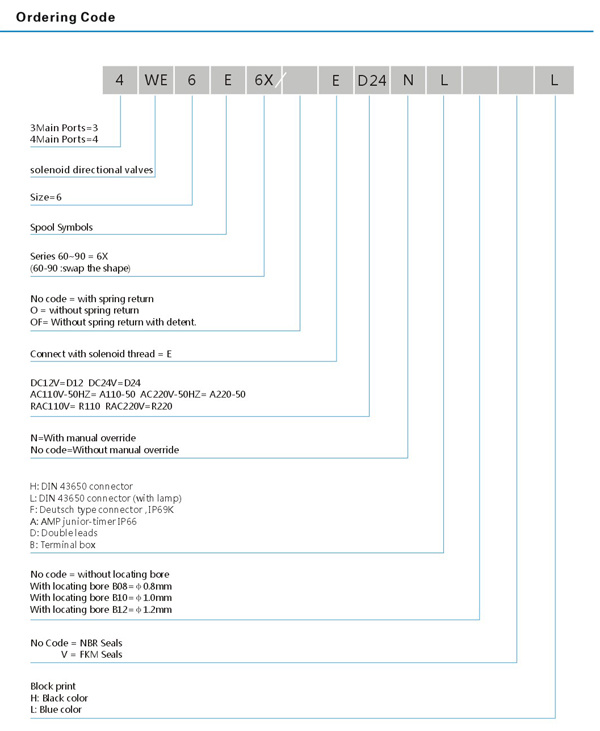

Ordering Code:
Technical Specificaton:1. General Specification:| Weight (Double Solenoids) | kg | 1.95 |
| Weight (Single Solenoid) | kg | 1.45 |
| Mounting Place |
| Any Place |
| Surrounding Temperature | ºC | -30 to +50 (nitrile rubber seal) |
| -20 to +50 (rubber seal) |
| Max. Operating Pressure | Mpa | 31.5 |
| Max. Pressure of T port | Mpa | 21(DC), 16(AC), |
| Max. Flow Rate | l/min | 80(DC), 60(AC) |
| Flow area (middle position) | mm2 | 6% nominal area(Q type), 3% nominal area (W type) |
| Liquid medium |
| Mineral Hydraulic Oil, Phosphate Oil |
| Oil temperature Fluctuation Range | ºC | -20 to +80(rubber seal), -30 to +80(nitrile rubber seal) |
| Oil Cleaness |
| ISO4572: B10≥75NAS1638:9grade |
| Oil Viscosity | mm2/s | 2.8-500 |
| Power |
| DC, AC( 50Hz) |
| Voltage Tolerance | % | -15 to +10 |
| Reversing time | ms | 125-145 (DC), 10-20(AC) |
| Reset time | 100-250(DC), 15-40(AC) |
| Operating Mode | ED% | 100 |
| Reversing Frequency | time/h | ≤ 15000 (DC), ≤ 7200 (AC,50Hz) |
| Max. Solenoid Temp. | ºC | 135 (B grade), 180 (H grade) |
| IP grade |
| IP65(AMP:IP66, DC), Deutsch: IP69k |
| Power Voltage | V | 12 | 24 | 48 | 110 | 220 |
| Power Type |
| DC | DC | DC | AC | AC |
| Power Frequency | Hz |
|
|
| 50/60 | 50/60 |
| Rated Power Consumption | W | 30 | 30 | 30 |
|
|
| Operating current(20ºC) | A |
|
|
|
|
0.27(220V) |
| Starting current | 0.72 (220V) |
