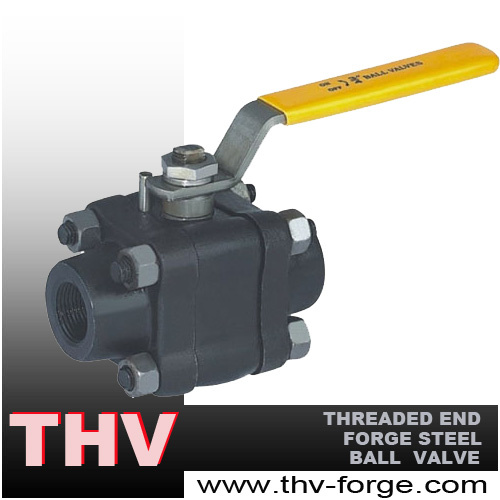

Forged Steel Ball Valve has 3-PC design and 2-PC design, size from 1/2 inch to 2 inch to suit various critical, non-critical applications and pressure rating up to 800 class in regular (reduce) bore design.
Forged Ball Valves are available with different type of Seat, Seal & Packing material such as PTFE (Virgin), Glass Filled PTFE, Carbon Filled PTFE, Graphite, PEEK to suit special requirement of client. The structure feature has anti-static, anti-fire safe and anti blow out proof stem.
Valve Design: BS 5351 / ANSI B 16.34
Testing: API 598
Face To Face: ANSI B 16.10
Butt Weld End: ANSI B 16.25
Socket Weld End: ANSI B 16.11
Screwed End: ANSI B 1.20.1(BSP/NPT)
Material conform to ANSI/ASTM.
Main materials: A105, 304(L), 316(L), F347, F321, F51, Monel, etc.
No
|
Part
|
Carbon Steel
|
Stainless steel
|
1
|
Body
|
A105
|
F304
|
F304L
|
F316
|
F316L
|
2
|
Ball
|
SS304
|
SS304L
|
SS316
|
SS316L
|
3
|
Stem
|
SS304
|
SS304L
|
SS316
|
SS316L
|
4
|
Seat
|
PTFE \ RPTFE
|
5
|
Gasket
|
O-Ring, PTFE, Graphite+SS
|
6
|
Packing
|
PTFE, Graphite+SS
|
7
|
Gasket
|
PTFE
|
8
|
Locating
|
A283D, Stainless steel
|
9
|
Lever
|
A283D, Stainless steel
|
10
|
Stem nut
|
Stainless steel
|
11
|
Stop pin
|
Stainless steel
|
12
|
Nut
|
A194-2H
|
A194-8
|
A194-8M
|
13
|
Bolt
|
A193-B7
|
A193-B8
|
A193-B8M
|
