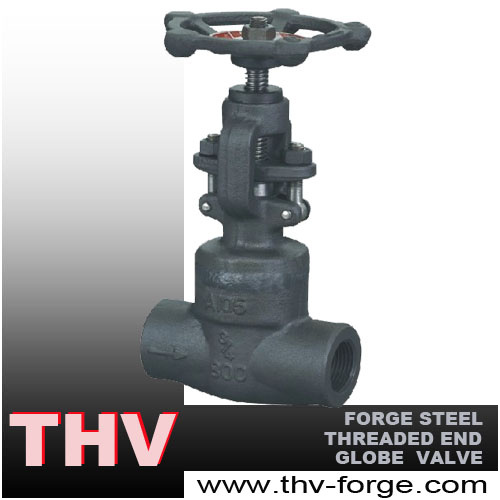

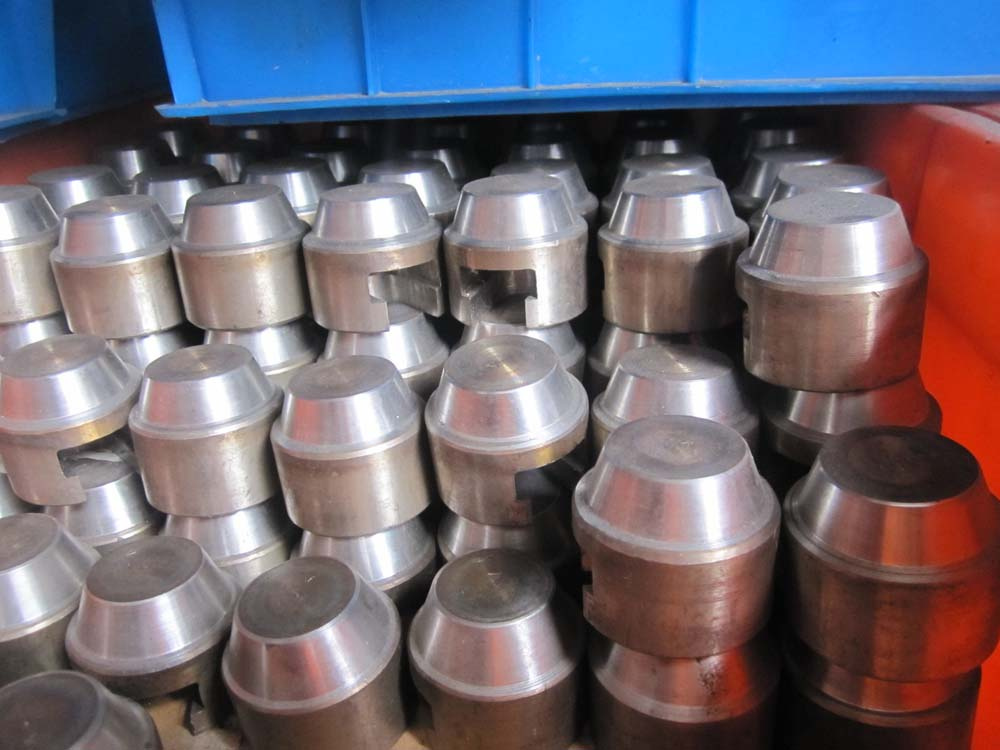

Threaded end forged steel globe valve
Welded Bonnet outside screw and yoke (OS&Y).
Materials: A105
Pressure Rating: Class 800
Size: 3/4"
Threaded end.
Construction is as follows
Design and manufacturing: API 602, MSS-SP-118 & ANSI B 16.34.
Testing according to API 598
Face to Face according to ANSI B16.10
Threaded end according to ANSI / ASME B1.20.1
Marked as per MSS SP-25.
Full Port or Standard Port
|
NO. |
Part Name |
CS to ASTM |
AS to ASTM |
SS to ASTM |
|
Type A105 |
Type A182 F22 |
Type F34(L) |
Type F316(L) |
|
1 |
Body |
A105 |
A182 F22 |
A182 F304(L) |
A182 F316(L) |
|
2 |
Disc |
A276 420 |
A276 304 |
A276 304(L) |
A276 316(L) |
|
3 |
Stem |
A182 F6 |
A182 f304 |
A182 F304(L) |
A182 F316(L) |
|
4 |
Pressure Seat |
A105 |
A182 F304 |
A182 F304(L) |
A182 F316(L) |
|
5 |
Pressure Ring |
A182 F304(L) |
F316L |
|
6 |
Bonnet |
A105 |
A182 F22 |
A182 F304(L) |
A182 F316(L) |
|
7 |
Pin |
A276 420 |
A276 304 |
|
8 |
P.S.Washer |
A105 |
A182 F22 |
A182 F304(L) |
A182 F316(L) |
|
9 |
P.S.Lock Nut |
A194 2H |
A194 4 |
A194 8 |
A194 8M |
|
10 |
Stem Packing |
Flexible Graphite |
PTFE |
|
11 |
Gland |
A276 420 |
A182 F304 |
|
12 |
Gland Flange |
A216 WCB |
A351 CF8 |
|
13 |
Gland Eyebolt |
A193 B7 |
A193 B16 |
A193 B8 |
A193 B8M |
|
14 |
Gland Nut |
A194 2H |
A194 4 |
A194 8 |
A194 8M |
|
15 |
Yoke Nut |
A276 410 |
|
16 |
Handwheel |
A197 |
|
17 |
Nameplate |
SS |
|
18 |
H.W.Nut |
A194 2H |
A194 4 |
A194 8 |
A194 8M |
|
Suitable Medium |
W.O.G.etc |
W.O.G.etc |
HNO3,CH3OOH etc |
|
Suitable Temperature |
-29 425 |
-29 550 |
-29 180 |
