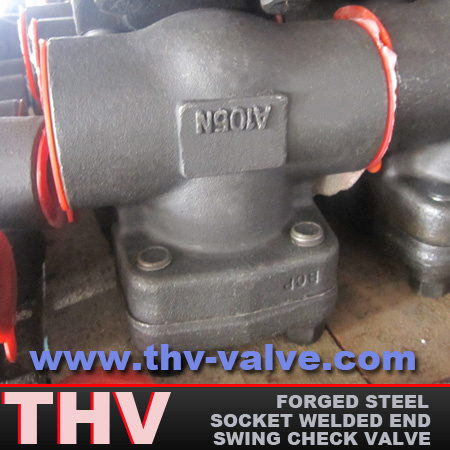

Forged steel check valves are available in swing, piston, lift and ball types. Bonnet and body connected by options of Bolted Bonnet, Welded Bonnet & Pressure Seal Bonnet. Shape of body has T & Y shape for option. According to connection type, it has flanged end, welded end, threaded end and union ends type.
Design and manufacturing according to BS 5352, MSS SP-118.
Connection according to:
Socket welded according to ANSI B16.11
Screw end according to ANSI B1.20.1
Butt-welded end according to ANSI B16.25
Flange end according to ANSI B16.5.
Test & inspection according to API 598,
Materials conform to ANSI/ASTM.
Main materials: A105, A105; LF2; F5; F11; F22; 304L; 316L; F347; F321; F51; Monel; 20 alloy, etc.
Size: From 1/4 inch to 2 inch.
Pressure: From Class 1500 to Class 2500.
Forged steel gate, globe, check valves and strainers from THV FORGE have been satisfying the needs of petroleum refineries, chemical processing plants, power generating plants and other processing facilities throughout the world. Please send your inquiries or leave your messages to our SKYPE or MSN for further technical support.
|
NO. |
Part Name |
CS to ASTM |
AS to ASTM |
SS to ASTM |
|
Type A105 |
Type F22 |
Type F304(L) |
Type F316(L) |
|
1 |
Body |
A105 |
A182 F22 |
A182 F304(L) |
A182 F316(L) |
|
2 |
Seat |
A276 410 |
A276 304 |
A276 304(L) |
A276 316(L) |
|
3 |
Swing Disc |
A276 420 |
A276 304 |
A276 304(L) |
A276 316(L) |
|
4 |
Nut |
A194 2H |
A194 4 |
A194 8 |
A194 8M |
|
5 |
Hinge |
A105 |
A182 F22 |
A182 F304 L |
A182 F316(L) |
|
6 |
Pin |
A276 420 |
A182 F304 |
A182 F316 |
|
7 |
Pontlevis |
A105 |
A182 F22 |
A182 F304 L |
A182 F316(L) |
|
8 |
Gasket |
Corrugated SS + graphite |
SS + PTFE |
|
9 |
Bonnet |
A105 |
A182 F22 |
A182 F304 L |
A182 F316(L) |
|
10 |
Bolt |
A193 B7 |
A193 B16 |
A193 B8M |
A193 B8M |
|
Suitable Medium |
W.O.G.etc |
W.O.G.etc |
HNO3,CH3OOH etc |
