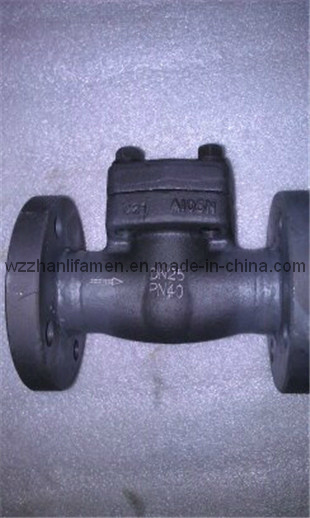

Forged Steel Check Valve
Price: |
US $ 999.99/Piece |
Trade Terms: |
FOB,CFR,CIF |
Min Order: |
10/Piece |
Pay Type: |
L/C,T/T |
Prod Model: |
H41H |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Nominal Pressure: |
800lb, 1500lb, 2500lb |
Nominal Diameter: |
1-1/2''-2'' |
Function: |
Nrvg Silence |
Application: |
Household Usage |
Material: |
Forged Steel |
Connection Form: |
Socket Weld, Threaded End/NPT |
Structure: |
Lift, Elevated |
Product Description
Belows are the details of Forged Steel Check Valve made by our company:
1. Technical Specifications:
(1)Design Standard: API 602 / ANSI B 16.34
(2)Face to Face Dimensions: ANSI B16.10
(3)Connection Type: Socket Weld ANSI B 16.11, Threaded End ANSI B 1.20.1
(4)Structures: Lift Type and Swing Type
(5)Test Standard: API 598
2. Performance Specifications:
(1)Shell Test: 19.5Mpa(800LB), 37.5Mpa(1500LB), 63.0Mpa(2500LB)
(2)Seal Test: 14.3Mpa(800LB), 27.5Mpa(1500LB), 46.2Mpa(2500LB)
(3)Suitable Temperature: Carbon Steel -29-425 Celsius degree,
Stainless Steel: -59-540 Celsius degree
(4)Suitable Medium: W. O. G

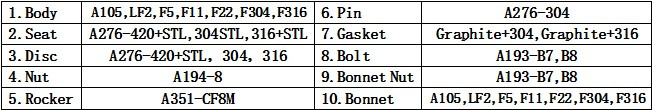

3. Main Parts and Materials:
![](/proimages/44f3j00REftgZYUUGkp/forged-steel-check-valve.jpg)

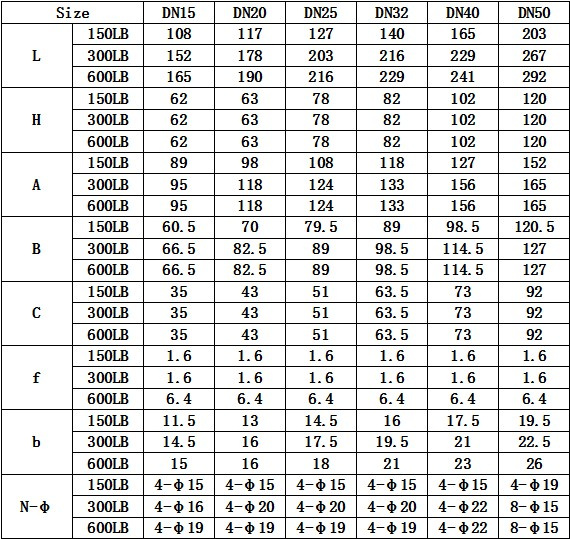

4. Main Sizes and Dimensions:
![](/proimages/44f3j00UtYTznGqBfbr/forged-steel-check-valve.jpg)
If this product interests you, please feel free to contact with us!
