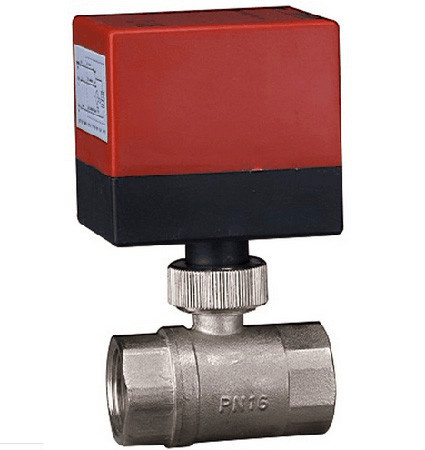

2-Way / 3-Way Brass Electric Control Motorized Ball Valve (DQ215KY)
| Price: |
US $ 19.2-20.4/Piece |
| Trade Terms: |
FOB,CIF,EXW |
| Min Order: |
50/Piece |
| Pay Type: |
T/T,Western Union |
2-Way / 3-Way Brass Electric Control Motorized Ball Valve (DQ215)
1, Product summaryDq series of motorized ball valves are used to control the on/off of the water system in HVAC system, consisting of actuator and valve body. Actuator (driver) adopts synchronous motor driver for its stable performance. Internal limit contacts and energy saving design in valve, can cut off the power when the valve is fully opened or closed. We suggest you use this product together with our thermostats, such as tc45W, tc43W, tc41W, ckn301dw, ckn101, ckn301 and ckn700 series of thermostats. Remark: Generally, the default state of valve door is normally closed. If you have any special request, please let us know. 2, Technical parameter: Working voltage: AC220V± 10%, 50/60Hz (special-made: 24vac)Power consumption: 4W(only when you open and close the valve)Running time of each action: ≤ 15s (valve-on); ≤ 15s(valve-off)Nominal pressure: 2.5mpaApplied medium: Cold or hot water, glycol water liquor (≤ 50%). Medium temperature: 2-90º CGrade of protection: IP54Safety class: Ii (double insulation)Material of valve body: Brass ( surface is plated with nickel)Material of actuator: Outer cover: ABS+PC engineering plastic (fire-resistant) / base: Enhanced PBT (fire-resistant)| Model | Spec | Dimension |
| Kvs(m3/h) | Shut-Off DP (Kpa) |
| Voltage | DN(mm) | Inner Screw Thread (G) | L | H | H1 |
| 2-way Valve | DQ215 | 230VAC | 15 | 1/2" | 110 | 64 |
| 3.8 | ≤ 600 |
| DQ220 | 20 | 3/4" | 110 | 64 |
| 7.3 |
| DQ225 | 25 | 1" | 125 | 75 |
| 11.8 |
| 3-way Valve | DQ320 | 20 | 3/4" | 120 | 85 | 40 | 6.0 |
| 2-way Valve | DQ215-24 | 24VAC | 15 | 1/2" | 110 | 64 |
| 3.8 | ≤ 600 |
| DQ220-24 | 20 | 3/4" | 110 | 64 |
| 7.3 |
| DQ225-24 | 25 | 1" | 125 | 75 |
| 11.8 |
| 3-way Valve | DQ320-24 | 20 | 3/4" | 120 | 85 | 40 | 6.0 |
| Prod Model: |
DQ215KY |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Voltage: |
230VAC 24VAC 110VAC |
| Ways: |
2 Ways ,3 Ways |
| Dn: |
15,20,25 |
| Material: |
Brass |
| Connection Form: |
Thread |
| Channel: |
Straight Through Type |
| Structure: |
Floating Ball Valve |
| Type: |
Floating Ball Valve |
| Application: |
Household Usage |
