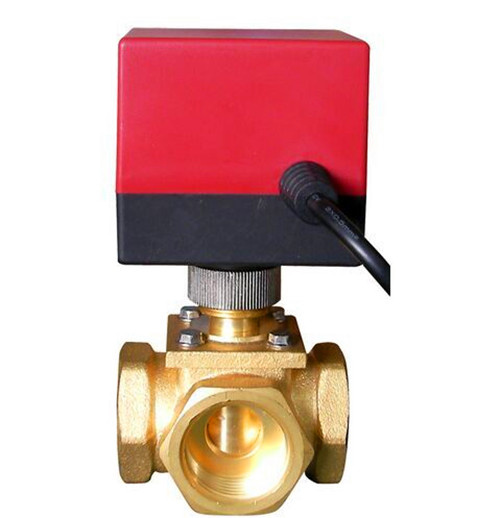

Motorized Flow Dividing Valve (ETOV0253)
| Price: |
US $ 33-39/Piece |
| Trade Terms: |
FOB,CIF,EXW |
| Min Order: |
50/Piece |
| Pay Type: |
T/T,Western Union |
ETOV series of 3-way motorized valve is an advanced mixing valve which is applied to controlling the supply/return water in the heating system. It is consist of a 3-way diving valve and an actuator. The actuator drive the valve clack to open or close the valve. Actuator adopts the bidirectional synchronous motor driver for it's stable performance, internal limit contacts, which can cut off the power when the valve is fully opened or closed. ETOV series of 3-way motorized diving valves are widely used to mixing the fluid in the heating system, radiator or other heating system.
Model Spec:

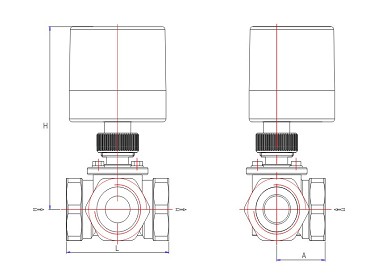

| Model | Spec | The main dimension |
K v(m³/h) | Shut off difference (k Pa) |
| DN(mm) | Internal thread(G) | L | H | A |
| ETOV0253-16C | 25 | 1" | 74 | 123 | 35 | 10.3 | ≤200 |

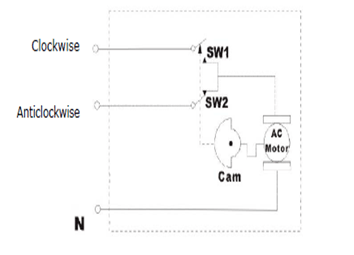

rinciple Diagram:
| Prod Model: |
ETOV0253 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Voltage: |
230VAC 24VAC 110VAC |
| Ways: |
2 Ways ,3 Ways |
| Dn: |
15,20,25 |
| Material: |
Brass |
| Connection Form: |
Thread |
| Channel: |
Straight Through Type |
| Structure: |
Floating Ball Valve |
| Type: |
Floating Ball Valve |
| Application: |
Household Usage |
