Steel 4 Ports and 3 Ways Water Heater Motorized Valve (KY-EFOT)
| Price: |
US $ 56-63.12/Piece |
| Trade Terms: |
FOB,CIF,EXW |
| Min Order: |
50/Piece |
| Pay Type: |
T/T,Western Union |

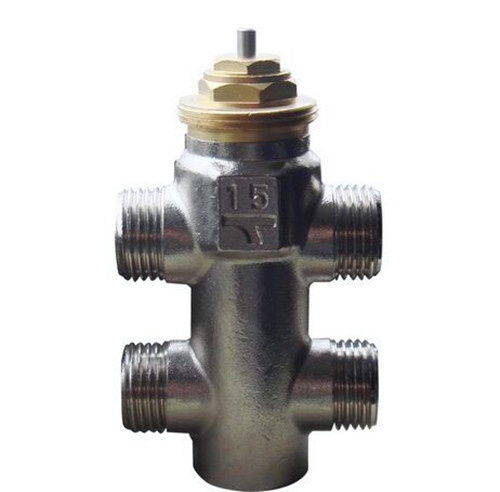

Steel 4 Ports and 3 Ways Water Heater Motorized Valve (EFOT)
EFOT series of motorized 4-port and 3-way valves are mainly applied to control the on/off of flow in the high-quality fan coil of air-conditioning and floor heating system, and also can be used to control the flow in all kinds of radiator or other heating system. It is a good suggestion to use it together with room thermostat or other motorized switching devices. Technical Parameter: Working Voltage: AC220V± 10%, 50/60Hz (Special-Made: 24VAC)Power Consumption: 4W(230VAC, after running steadily)6W(24VAC, after running steadily)Running Time of Each Action: ≤ 5mins (at 25º C)Working Journey: 2.5~3.0mmNominal Pressure: 1.6MpaApplied Medium: Cold or hot water, glycol water liquor (≤ 50%). Medium Temperature: 0~75º CWorking Environment Temperature: 0~50º CStorage Temperature: -20~+70º CGrade of Protection: IP54Safety Class: II (Double Insulation)Material of Valve Body: BrassMaterial of Actuator: Outer Cover: PA66+30%GF| Model | Spec. | Dimension (mm) | Kv(m³/h) | Shut-OFF DP (Kpa) |
| DN(mm) | Female Thread(G) | L | H | A |
| ETOT015-16C | 15 | 1/2" | 56 | 140 | 35 | 2.8 | ≤50 |
| Prod Model: |
KY-EFOT |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Voltage: |
230VAC 24VAC 110VAC |
| Ways: |
2 Ways ,3 Ways |
| Dn: |
15,20,25 |
| Material: |
Brass |
| Connection Form: |
Thread |
| Channel: |
Straight Through Type |
| Structure: |
Floating Ball Valve |
| Type: |
Floating Ball Valve |
| Application: |
Household Usage |
